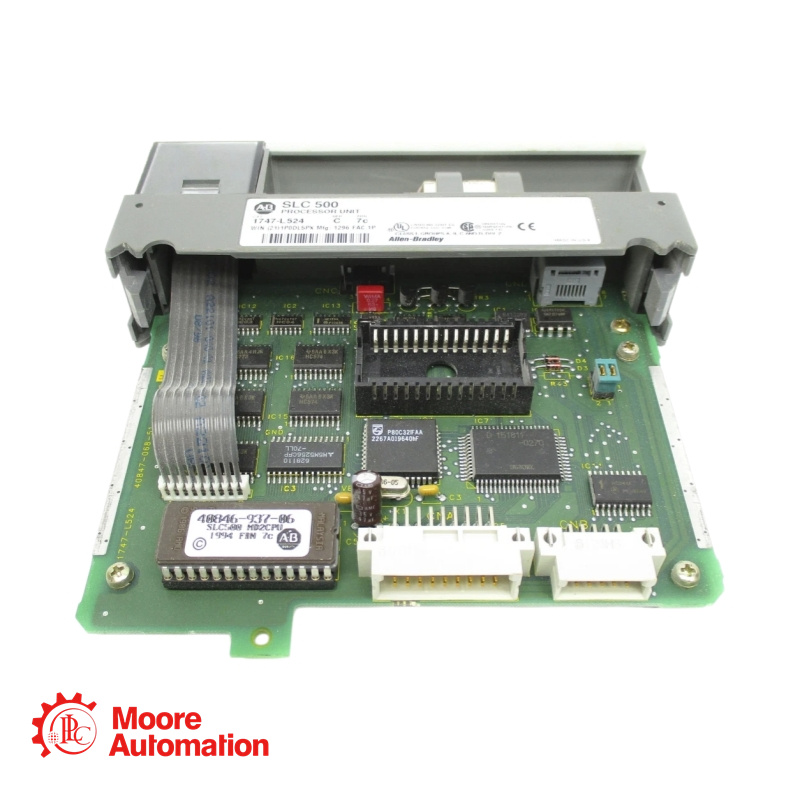

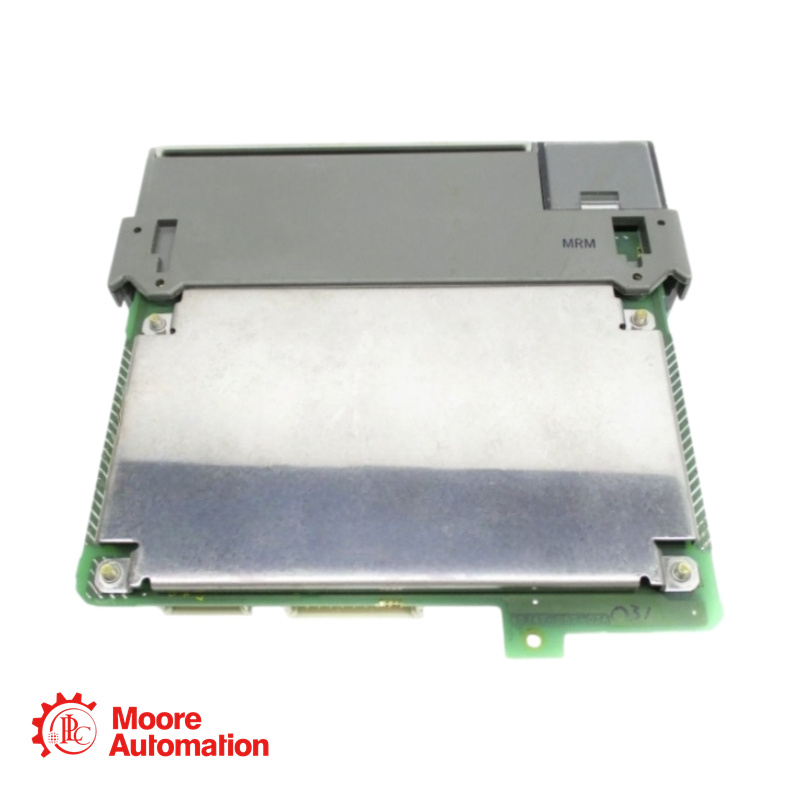

1747-L524 PLC - SLC 5/02 4K Controller

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
1747-L524

Description:

SLC 5/02 Modular Processor for SLC 500 system
4K instruction memory size
Supports addressing of up to 4096 I/O points
DH-485 communication channel (initiator – can initiate peer-to-peer communication)
Battery-backed RAM
UL listed to US and Canadian Safety Standards, CE compliant, C-Tick marked

The 1747-L524 processor offers an enhanced instruction set, increased diagnostic capabilities, and expanded communication capabilities beyond the SLC 5/01 processors and fixed controllers. It supports PID closed-loop process control, indexed addressing, interrupt capability, user fault routines, and 32-bit signed math functions.

Technical Data:

Processor family:SLC 5/02
Program memory size:4 K instructions
Maximum I/O points:4096
Communication channel:DH-485 (initiator – can initiate peer-to-peer communication)
Communication rate (default):19.2 Kbaud
DH-485 node address (default):1
Backplane current (5V dc):0.090 A
Backplane current (24V dc):0 A
Heat dissipation (minimum watts):1.75 W
Heat dissipation (total watts):1.75 W

Accessories:

1746-P1:2.0 A @ 5V dc, 0.46 A @ 24V dc
1746-P2:5.0 A @ 5V dc, 0.96 A @ 24V dc
1746-P3:3.6 A @ 5V dc, 0.87 A @ 24V dc
1746-P4:10.0 A @ 5V dc, 2.88 A @ 24V dc
1746-P5:5.0 A @ 5V dc, 0.96 A @ 24V dc
1746-P6:5.0 A @ 5V dc, 0.96 A @ 24V dc
1746-P7:12V input: 2.0 A @ 5V dc, 0.46 A @ 24V dc; 24V input: 3.6 A @ 5V dc, 0.87 A @ 24V dc

1747-M1:1 K User Words EEPROM
1747-M2:4 K User Words EEPROM
1747-M5:Adapter Socket
