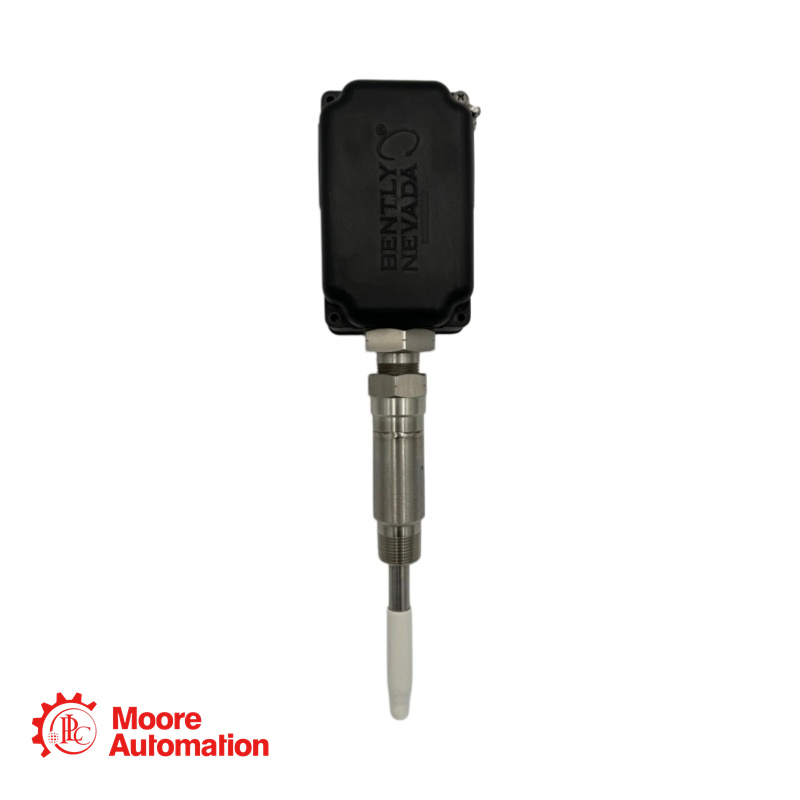

The 32000-28-05-05-060-00-02 is a 32000 Metric Proximity Probe Housing Assembly designed for externally mounting proximity probes through the machine case.
Merk :
Bently NevadaOnderdeel nummer :
32000-28-05-05-060-00-02Gewicht :
1.5 kgDimensie :
37x9x8cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Proximity Probe Housing Assembly
32000-28-05-05-060-00-02
The 32000-28-05-05-060-00-02 is a 32000 Metric Proximity Probe Housing Assembly designed for externally mounting proximity probes through the machine case. This housing is recommended for radially mounted transducers used in vibration and Keyphasor measurements. It allows external access to the proximity probe and extension cable, permitting gap adjustment or probe replacement without machine disassembly.
The housing is made of glass-reinforced polyphenylene sulfide (PPS) thermoplastic containing conductive fibers, providing excellent corrosion resistance and high strength. Other components are made of corrosion-resistant stainless steel. The assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
When installed with an approved transducer system and appropriate intrinsically safe barriers, the 32000 housing can be used in hazardous area applications. Note that this housing provides mechanical and environmental protection only and is not explosion-proof. For explosion-proof applications, use CA21000 or CA24701 housings.
Specifications: 32000-28-05-05-060-00-02
Part Number-AA-BB-CC-DD-EE
Parameter
Specification
Base Model
32000
Probe with Connector
3300 XL 8 mm probe, multiple approvals
Probe Cable Length
0.5 meter (20 inches)
Standoff Adapter Length
50 mm (minimum length 40 mm, maximum 200 mm; ordered in increments of 10 mm)
Probe Penetration Option
60 mm
Fittings
Without fittings; two plugs and two washers
Mounting Thread Option
3/4-14 NPT
Electrical Specifications
Parameter
Specification
Housing Material
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
Sleeve Material
AISI 304 stainless steel
Outer Sleeve and Exterior Screws
AISI 303 stainless steel
Recommended Torque (Retaining Nut)
29.4 N·m (260 in·lb)
Temperature Range (3300 XL 8mm Probe)
-51°C to +177°C (-60°F to +351°F)
32000-28-05-05-060-00-02 FAQ
Q: What type of probe is included with this housing?
A: Option A:28 includes a 3300 XL 8 mm probe with multiple approvals. The probe is designed for use in intrinsically safe hazardous area applications when installed with appropriate barriers.
Q: What is the cable length of the included probe?
A: Option B:05 specifies a probe cable length of 0.5 meter (20 inches) .
Q: What is the standoff adapter length for this housing?
A: Option C:05 provides a standoff adapter length of 50 mm. Standoff adapters are used to adjust the probe penetration depth and can be ordered in increments of 10 mm (minimum 40 mm, maximum 200 mm).
Q: What is the probe penetration length?
A: Option D:060 indicates a probe penetration length of 60 mm. This is the distance the probe extends beyond the housing. Probe penetration can be ordered in increments of 1 mm.
Q: What fittings are included with this housing?
A: Option E:00 specifies without fittings. The housing comes with two plugs and two washers to seal unused holes.
Q: What is the mounting thread for this housing?
A: Option F:02 specifies a 3/4-14 NPT mounting thread. This option is required when a standoff adapter is used (Option C is not 00).
Q: Is this housing explosion-proof?
A: No. The 31000/32000 housing is intended to provide mechanical and environmental protection only and is not explosion-proof. For explosion-proof applications, use CA21000 or CA24701 housings.
|
