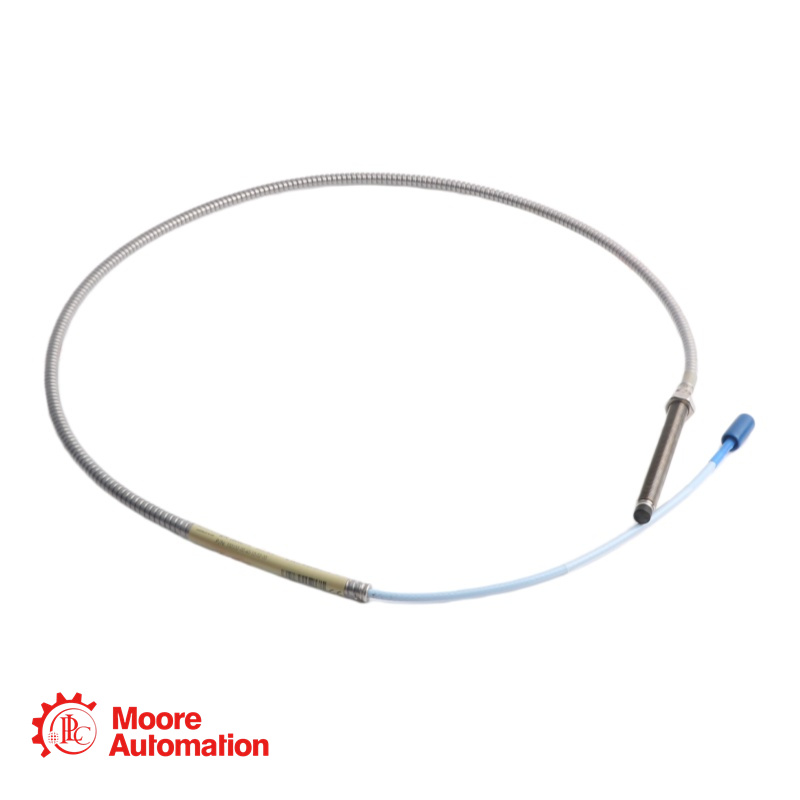

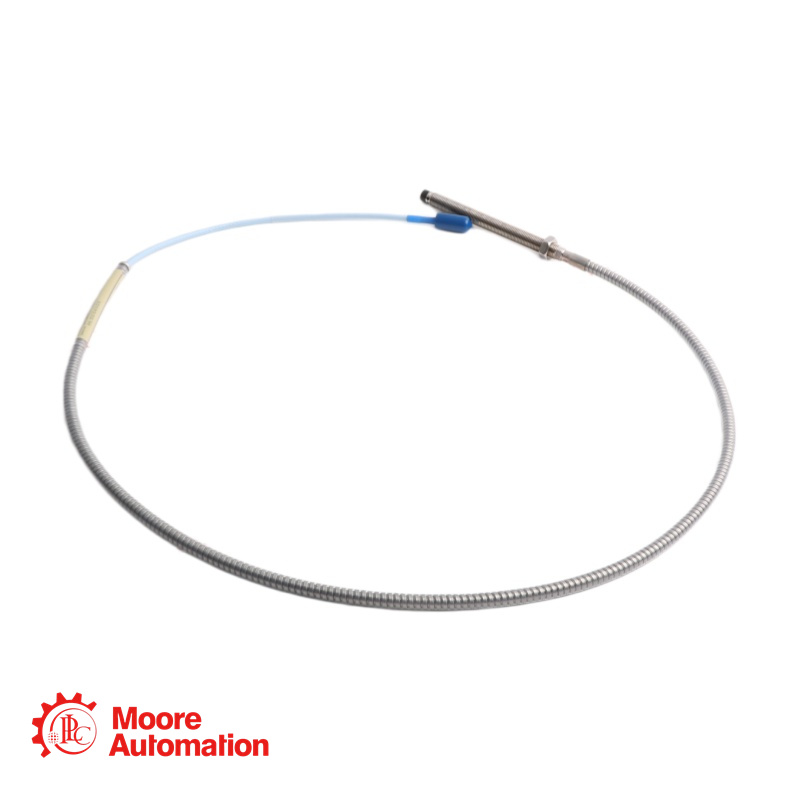

330102-00-40-10-02-05 Proximity Probe

The 330102-00-40-10-02-05 is a standard mount proximity probe from the 3300 XL 8 mm series. It is designed for vibration and position measurements in rotating machinery such as fluid-film bearing machines, compressors, pumps, and turbines .

This probe features a 1/4-28 UNF thread and is part of the 3300 XL 8 mm Proximity Transducer System, which delivers advanced performance in eddy current proximity transducer systems. The system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

330102-00-40-10-02-05 DETAILS

Part Number:330102-00-40-10-02-05
Base Model:330102 - 3300 XL 8 mm Probe, Standard Mount, 1/4-28 UNF Thread, Unarmored
Unthreaded Length (AA):00: 0.0 inches
Overall Case Length (BB):40: 4.0 inches
Total Cable Length (CC):10: 1.0 meter (3.3 feet)
Connector and Cable Type (DD):02: Miniature coaxial ClickLoc™ connector, standard cable
Agency Approval (EE):05: Multiple Approvals (CSA, ATEX, IECEx)
Thread Type:1/4-28 UNF
Armor:Without armor
Mounting Style:Standard forward mount
Linear Range:2.0 mm (80 mils), from approximately 0.25 to 2.3 mm (10 to 90 mils) from target (-1 to -17 Vdc)
Recommended Gap Setting:1.27 mm (50 mils) [approximately -9 Vdc] for radial vibration
Average Scale Factor:7.87 V/mm (200 mV/mil)
System Length Compatibility:Designed for use with matching Proximitor Sensor (probe cable length + extension cable = total system length)
Incremental Scale Factor (ISF):7.87 V/mm (200 mV/mil) ±5% for 5m system over 0°C to +45°C; ±6.5% for 9m system
Deviation from Best Fit Straight Line (DSL):Less than ±0.025 mm (±1 mil) for 5m system over 0°C to +45°C
Probe Tip Material:Polyphenylene sulfide (PPS)
Probe Case Material:AISI 303 or 304 Stainless Steel
Probe Cable:75 Ω triaxial, FEP insulated

330102-00-40-10-02-05

Frequently Asked Questions (FAQ)

Q: What type of thread does this probe use?
A: It uses a 1/4-28 UNF thread.

Q: What does the "-05" agency approval option mean?
A: The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

Q: What is the maximum recommended torque for installing this probe?
A: The maximum recommended torque for standard forward mounted probes is 11.2 N·m (100 in·lb). The first three threads should only be torqued to 7.5 N·m (66 in·lb). Exceeding these values may damage the probe.

Q: What is the total cable length of this probe?
A: The total cable length is 1.0 meter (3.3 feet) , as specified by the "10" option.

Q: What type of connector does this probe use?
A: It uses a gold-plated brass ClickLoc™ miniature coaxial connector . This connector locks into place with a "click" when finger-tight, preventing loosening from vibration.

Q: What is the minimum recommended shaft diameter for radial vibration measurements?
A: The recommended minimum shaft diameter is 76.2 mm (3 inches). Measurements on smaller shafts will generally result in a change in the scale factor.
