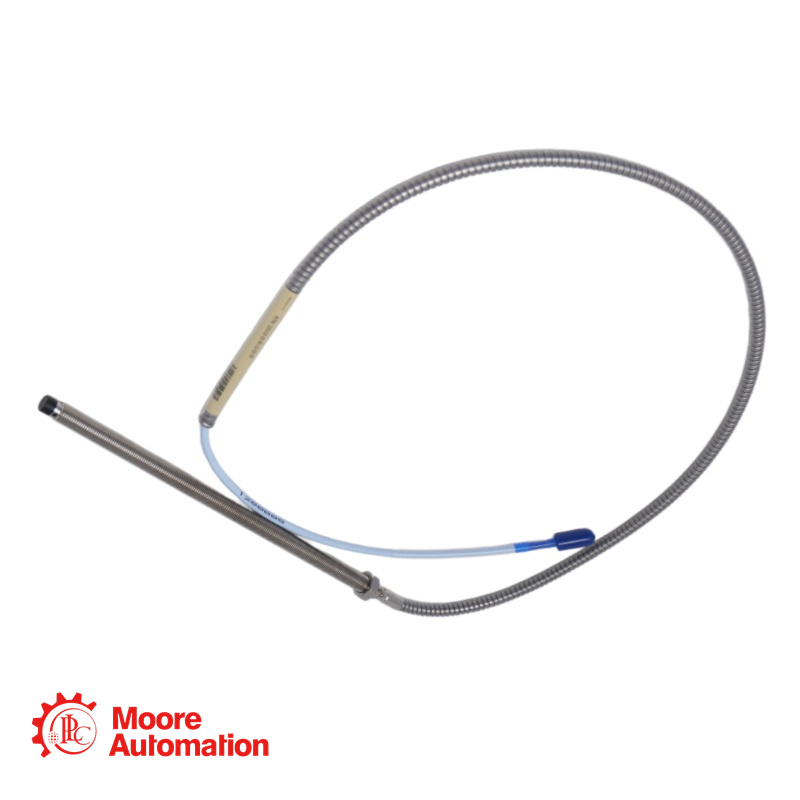

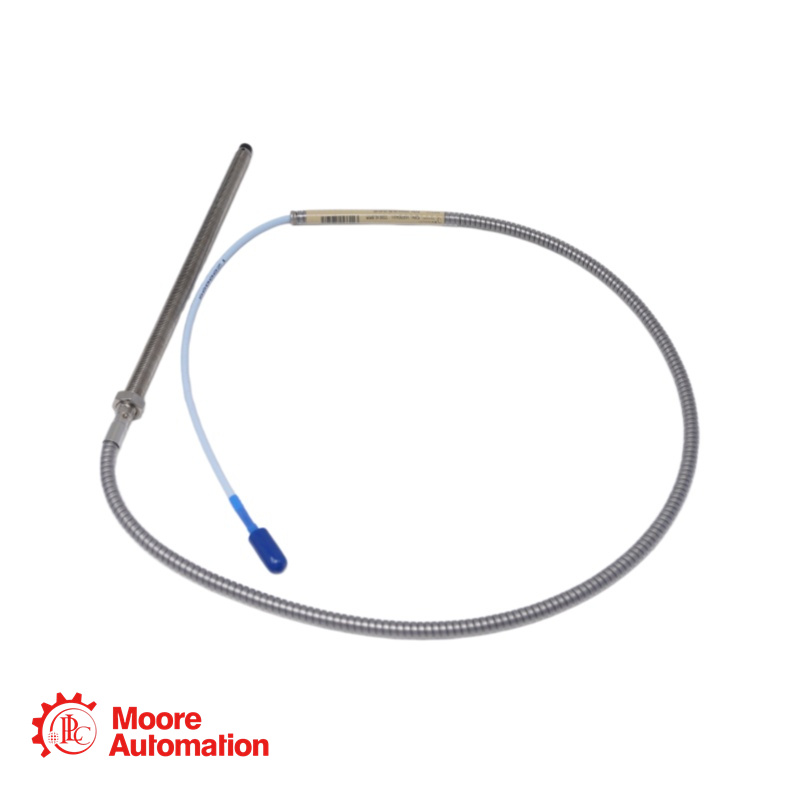

330102-00-80-10-11-05 Proximity Probe

The 330102-00-40-10-02-05 is a standard mount proximity probe from the 3300 XL 8 mm series. It is designed for vibration and position measurements in rotating machinery such as fluid-film bearing machines, compressors, pumps, and turbines .

This probe features a 1/4-28 UNF thread and is part of the 3300 XL 8 mm Proximity Transducer System, which delivers advanced performance in eddy current proximity transducer systems. The system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

330102-00-80-10-11-05 DETAILS

Part Number:330102-00-80-10-11-05
Base Model:330102 - 3300 XL 8 mm Probe, Standard Mount, 1/4-28 UNF Thread, Unarmored
Unthreaded Length (AA):00: 0.0 inches
Overall Case Length (BB):80: 8.0 inches
Total Cable Length (CC):10: 1.0 meter (3.3 feet)
Connector and Cable Type (DD):11: Miniature coaxial ClickLoc™ connector with connector protector, FluidLoc cable
Agency Approval (EE):05: Multiple Approvals (CSA, ATEX, IECEx)
Thread Type:1/4-28 UNF
Armor:Without armor
Mounting Style:Standard forward mount
Linear Range:2.0 mm (80 mils), from approximately 0.25 to 2.3 mm (10 to 90 mils) from target (-1 to -17 Vdc)
Recommended Gap Setting:1.27 mm (50 mils) [approximately -9 Vdc] for radial vibration
Average Scale Factor:7.87 V/mm (200 mV/mil)
System Length Compatibility:Designed for use with matching Proximitor Sensor (probe cable length + extension cable = total system length)
Incremental Scale Factor (ISF):7.87 V/mm (200 mV/mil) ±5% for 5m system over 0°C to +45°C; ±6.5% for 9m system
Deviation from Best Fit Straight Line (DSL):Less than ±0.025 mm (±1 mil) for 5m system over 0°C to +45°C
Probe Tip Material:Polyphenylene sulfide (PPS)
Probe Case Material:AISI 303 or 304 Stainless Steel
Probe Cable:75 Ω triaxial, FEP insulated

330102-00-80-10-11-05

Frequently Asked Questions (FAQ)

Q: What is the purpose of the FluidLoc cable (option "11")?
A: The FluidLoc cable is designed to prevent oil and other liquids from leaking out of the machine through the cable's interior. This is important in applications where the cable passes through a machine casing and process fluids must be contained to prevent leakage.
Q: What is the purpose of the connector protector?
A: The connector protector provides environmental sealing for the connection point between the probe and extension cable. It prevents moisture, oil, and other contaminants from entering the ClickLoc™ connector, which could otherwise degrade signal quality and cause measurement errors.

Q: What does the "-05" agency approval option mean?
A: The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

Q: What is the correct gap setting for this probe?
A: For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils) , which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.

Q: What is the maximum thread engagement length for the 1/4-28 thread?
A: The maximum recommended thread engagement length is 0.375 inches . Exceeding this length may cause binding during installation. When drilling and tapping a mounting hole for a 1/4-28 probe, a #3 or larger tap drill is recommended.

Q: What is the minimum recommended shaft diameter for radial vibration measurements?
A: The recommended minimum shaft diameter is 76.2 mm (3 inches). Measurements on smaller shafts will generally result in a change in the scale factor.
