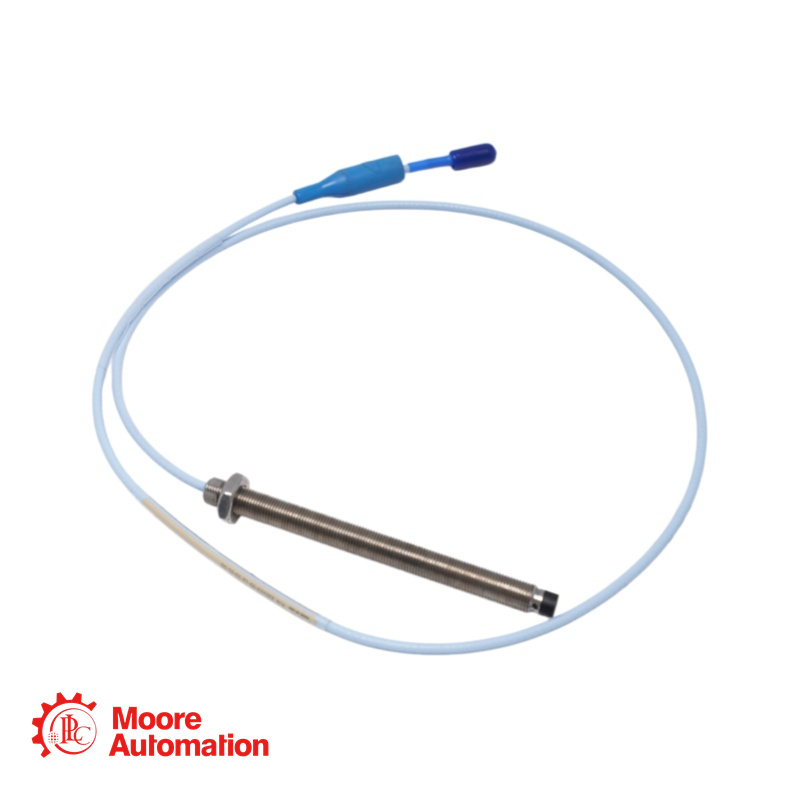

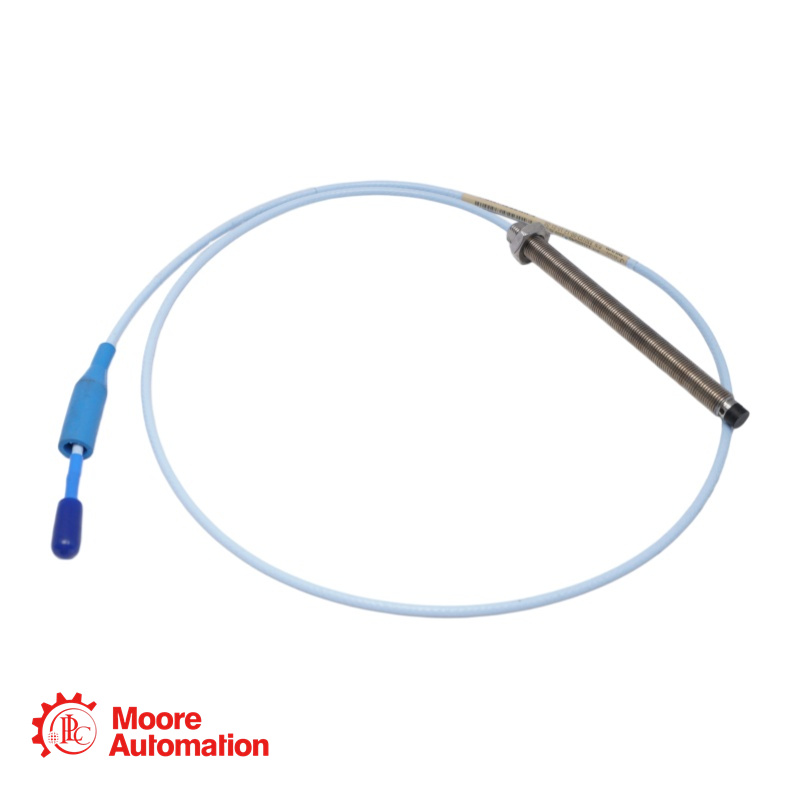

330103-00-12-10-11-05 NSv Probe

The 330103-00-12-10-11-05 is a standard mount proximity probe from the 3300 XL 8 mm series. It is designed for vibration and position measurements in rotating machinery such as fluid-film bearing machines, compressors, pumps, and turbines .

This probe features a 3/8-24 UNF thread and is part of the 3300 XL 8 mm Proximity Transducer System, which delivers advanced performance in eddy current proximity transducer systems. The system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

330103-00-12-10-11-05 DETAILS

Part Number:330103-00-12-10-11-05
Base Model:330103 - 3300 XL 8 mm Probe, Standard Mount, 3/8-24 UNF Thread, Unarmored
Unthreaded Length (AA):00: 0.0 inches
Overall Case Length (BB):12: 1.2 inches
Total Cable Length (CC):10: 1.0 meter (3.3 feet)
Connector and Cable Type (DD):11: Miniature coaxial ClickLoc™ connector with connector protector, FluidLoc cable
Agency Approval (EE):05: Multiple Approvals (CSA, ATEX, IECEx)
Thread Type:3/8-24 UNF
Armor:Without armor
Mounting Style:Standard forward mount
Recommended Gap Setting:1.27 mm (50 mils) [approximately -9 Vdc] for radial vibration
Average Scale Factor:7.87 V/mm (200 mV/mil)
Probe Cable:75 Ω triaxial, FEP insulated, with FluidLoc construction
Temperature Range (Operating):-35°C to +120°C (-31°F to +248°F) standard
Temperature Range (Storage):-51°C to +177°C (-60°F to +350°F)

330103-00-12-10-11-05

Frequently Asked Questions (FAQ)

Q: What is the purpose of the FluidLoc cable (option "11")?
A: The FluidLoc cable is designed to prevent oil and other liquids from leaking out of the machine through the cable's interior. This is important in applications where the cable passes through a machine casing and process fluids must be contained to prevent leakage.

Q: What does the "-05" agency approval option mean?
A: The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

Q: What is the correct gap setting for this 330103-00-12-10-11-05 probe?
A: For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils), which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.

Q: What is the maximum thread engagement length for the 3/8-24 thread?
A: The maximum recommended thread engagement length is 0.563 inches . Exceeding this length may cause binding during installation.

Q: What type of connector does this probe use?
A: It uses a gold-plated brass ClickLoc™ miniature coaxial connector . This connector locks into place with a "click" when finger-tight, preventing loosening from vibration.

Q: What is the total cable length of this probe?
A: The total cable length is 1.0 meter (3.3 feet) , as specified by the "10" option.
