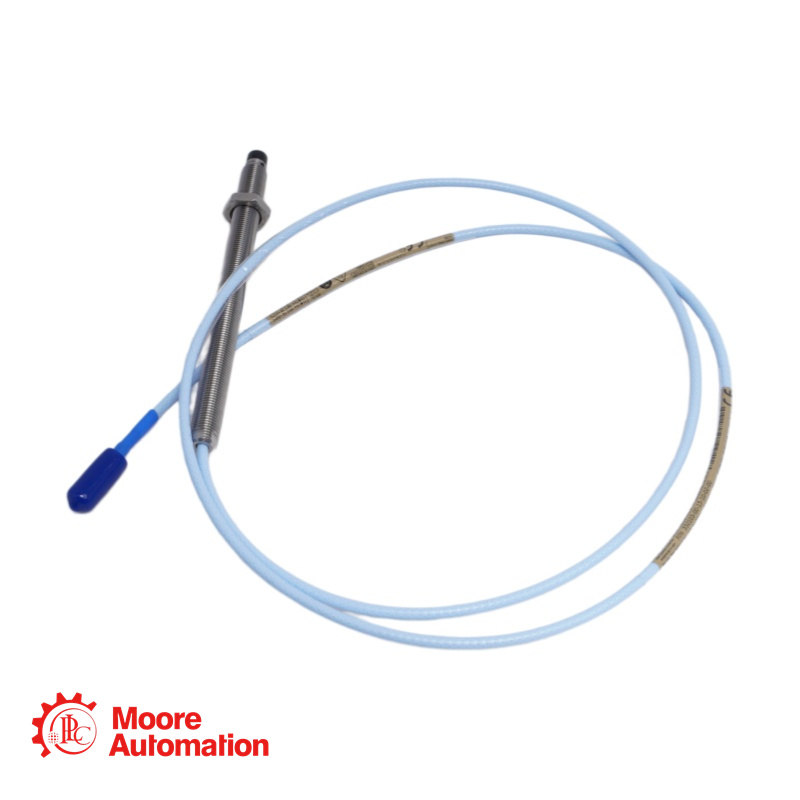

330103-00-13-20-12-05 NSv Probe

The 330103-00-13-20-12-05 is a standard mount proximity probe from the 3300 XL 8 mm series. It is designed for vibration and position measurements in rotating machinery such as fluid-film bearing machines, compressors, pumps, and turbines .

This probe is part of the 3300 XL 8 mm Proximity Transducer System, which delivers advanced performance in eddy current proximity transducer systems. The system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

330103-00-13-20-12-05 DETAILS

Part Number:330103-00-13-20-12-05
Base Model:330103 - 3300 XL 8 mm Probe, Standard Mount, 3/8-24 UNF Thread, Unarmored
Unthreaded Length (AA):00: 0.0 inches
Overall Case Length (BB):13: 1.3 inches
Total Cable Length (CC):20: 2.0 meters (6.6 feet)
Connector and Cable Type (DD):12: Miniature coaxial ClickLoc™ connector, FluidLoc cable
Agency Approval (EE):05: Multiple Approvals (CSA, ATEX, IECEx)
Thread Type:3/8-24 UNF
Armor:Without armor
Mounting Style:Standard forward mount
Linear Range:2.0 mm (80 mils), from approximately 0.25 to 2.3 mm (10 to 90 mils) from target (-1 to -17 Vdc)
Recommended Gap Setting:1.27 mm (50 mils) [approximately -9 Vdc] for radial vibration
Average Scale Factor:7.87 V/mm (200 mV/mil)
System Length Compatibility:Designed for use with matching Proximitor Sensor (probe cable length + extension cable = total system length)
Incremental Scale Factor (ISF):7.87 V/mm (200 mV/mil) ±5% for 5m system over 0°C to +45°C; ±6.5% for 9m system
Deviation from Best Fit Straight Line (DSL):Less than ±0.025 mm (±1 mil) for 5m system over 0°C to +45°C
Probe Tip Material:Polyphenylene sulfide (PPS)
Probe Case Material:AISI 303 or 304 Stainless Steel

330103-00-13-20-12-05

Frequently Asked Questions (FAQ)

Q: What is the purpose of the FluidLoc cable (option "12")?
A: The FluidLoc cable is designed to prevent oil and other liquids from leaking out of the machine through the cable's interior. This is important in applications where the cable passes through a machine casing and process fluids must be contained to prevent leakage.

Q: What does the "-05" agency approval option mean?
A: The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

Q: What is the correct gap setting for this 330103-00-13-20-12-05 probe?
A: For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils), which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.

Q: What is the maximum thread engagement length for the 3/8-24 thread?
A: The maximum recommended thread engagement length is 0.563 inches . Exceeding this length may cause binding during installation.

Q: What is the difference between the FluidLoc 330103-00-13-20-12-05 cable and the standard cable?
A: The FluidLoc cable (option "12") is specially constructed to prevent fluid from migrating through the cable's interior. The standard cable (option "02") does not provide this feature. FluidLoc is recommended for applications where the probe cable may be exposed to oil or other liquids.

Q: What is the minimum recommended shaft diameter for radial vibration measurements?
A: The recommended minimum shaft diameter is 76.2 mm (3 inches). Measurements on smaller shafts will generally result in a change in the scale factor.
