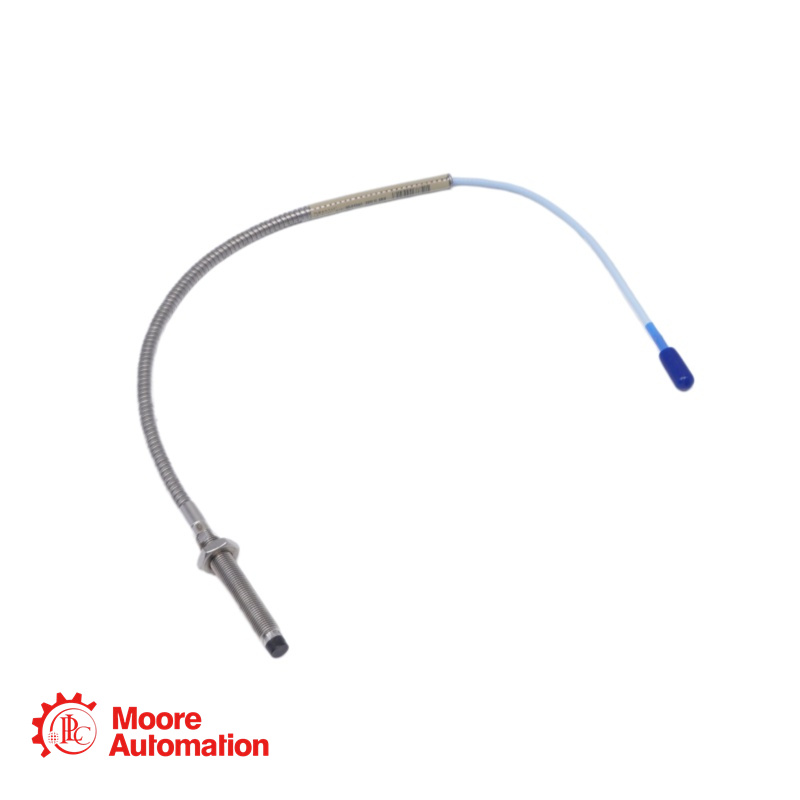

330104-00-06-05-11-05 NSv Probe

The 330104-00-06-05-11-05 is a reverse mount proximity probe from the 3300 XL 8 mm series. It is designed for vibration and position measurements in rotating machinery where space behind the probe mounting location is limited or inaccessible, such as in thrust bearings or confined machine casings.

This probe features a 1/4-28 UNF thread and is part of the 3300 XL 8 mm Proximity Transducer System, which delivers advanced performance in eddy current proximity transducer systems. The system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

The "-05" agency approval option indicates this probe carries multiple hazardous area approvals (CSA, ATEX, IECEx) for use in intrinsically safe and non-incendive applications.

330104-00-06-05-11-05 DETAILS

Part Number:330104-00-06-05-11-05
Base Model:330104 - 3300 XL 8 mm Probe, Reverse Mount, 1/4-28 UNF Thread, Unarmored
Unthreaded Length (AA):00: 0.0 mm (0.0 inches)
Overall Case Length (BB):06: 60 mm (2.36 inches)
Total Cable Length (CC):05: 0.5 meter (1.6 feet)
Connector and Cable Type (DD):11: Miniature coaxial ClickLoc™ connector with connector protector, FluidLoc cable
Agency Approval (EE):05: Multiple Approvals (CSA, ATEX, IECEx)
Thread Type:1/4-28 UNF
Armor:Without armor
Mounting Style:Reverse mount (cable exits from the tip side)
Average Scale Factor:7.87 V/mm (200 mV/mil)

330104-00-06-05-11-05

Frequently Asked Questions (FAQ)

Q: What is a reverse mount probe and when is it used?
A: A reverse mount probe (330104 series) has the cable exiting from the tip end of the probe rather than the back. This design is used in applications where space behind the probe mounting location is limited or inaccessible, such as in thrust bearings or confined machine casings.

Q: What is the purpose of the FluidLoc cable (option "11")?
A: The FluidLoc cable is designed to prevent oil and other liquids from leaking out of the machine through the cable's interior. This is important in applications where the cable passes through a machine casing and process fluids must be contained.

Q: What is the purpose of the connector protector?
A: The connector protector provides environmental sealing for the connection point between the probe and extension cable. It prevents moisture, oil, and other contaminants from entering the ClickLoc™ connector.

Q: What does the "-05" agency approval option mean?
A: The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

Q: What is the correct gap setting for this probe?
A: For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils) , which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.

Q: What is the total cable length of this probe?
A: The total cable length is 0.5 meter (1.6 feet) , as specified by the "05" option.
