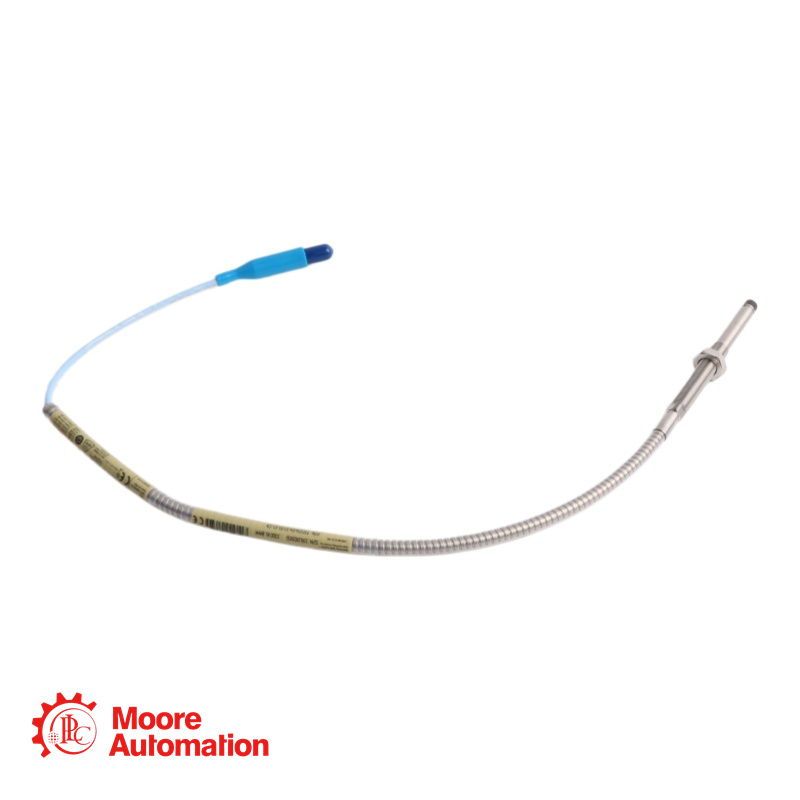

The 330104-04-12-05-01-05 is a 3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor. It is part of the 3300 XL 8 mm Proximity Transducer System.
Merk :
Bently NevadaOnderdeel nummer :
330104-04-12-05-01-05Gewicht :
0.2 kgDimensie :
32x30x2cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Proximity Probe
330104-04-12-05-01-05 At A Glance
The 330104-04-12-05-01-05 is a 3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor. It is part of the 3300 XL 8 mm Proximity Transducer System, which provides an output voltage proportional to the distance between the probe tip and a conductive surface for measuring static (position) and dynamic (vibration) values. This specific probe is a component designed to be used with a 3300 XL Proximitor Sensor and an extension cable.
Brand
Bently Nevada
Origin
USA
Product Family
3300 XL 8 mm Proximity Transducer System
Product lifecycle
Active Product
Net weight
0.2 kg
Condition
Original New
Warranty
12 Months
330104-04-12-05-01-05 Specification
|
Parameter |
Specification |
|
Base Model |
330104 |
|
Probe Type |
3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor |
|
Unthreaded Length (Option A) |
40 mm (0.4) |
|
Overall Case Length (Option B) |
120 mm (12) |
|
Total Length (Option C) |
5.0 meters (16.4 feet) |
|
Connector and Cable Type (Option D) |
01: Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval (Option E) |
05: CSA, ATEX, IECEx Approvals |
|
Linear Range |
2 mm (80 mils) from approximately 0.25 to 2.3 mm (10 to 90 mils) |
|
Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error over the 80 mil linear range from 0°C to +45°C (+32°F to +113°F) |
|
Nominal Probe DC Resistance |
8.73 Ω ± 0.50 Ω (for 5.0 meter probe length) |
|
Recommended Gap Setting for Radial Vibration |
-9 Vdc [approximately 1.27 mm (50 mils)] |
▶Primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
This specific probe (with armor) is used in applications where the cable requires additional protection.
The 8 mm probe is recommended when possible to provide optimal robustness against physical abuse, as the larger diameter provides a stronger case and thicker encapsulation of the probe coil.
It is used with the 3300 XL Proximitor Sensor and an extension cable (e.g., 330130 or 330190) where the total length of the probe and extension cable matches the Proximitor sensor's total length.
|
|
|
|
|
|
|
Q: What is the total length of this 330104-04-12-05-01-05 probe?
▶A: The total length is 5.0 meters (16.4 feet), as indicated by the 05 in the "C" position of the part number. 5-meter probes are designed for use with the 5 meter Proximitor sensor only.
Q: What type of connector does this 330104-04-12-05-01-05 probe use?
▶A: It uses a miniature coaxial ClickLoc connector with a connector protector. The connectors are corrosion-resistant, gold-plated, and require only finger-tight torque until they "click."
Q: What are the thread specifications for this 330104-04-12-05-01-05?
▶A: This probe has an M10 x 1 thread. The maximum recommended thread engagement length for an M10 thread is 15 mm, per the industry standard of 1.5 times the nominal thread diameter.
Q: What are the temperature limits for this 330104-04-12-05-01-05 probe?
▶A: As a standard probe (not Extended Temperature Range), the operating and storage temperature range is -52°C to +177°C (-62°F to +350°F).
Q: What are the case and unthreaded lengths for this specific configuration?
▶A: The overall case length (Option B) is 130 mm, and the unthreaded length (Option A) is 60 mm. The unthreaded length must be at least 20 mm less than the case length.
