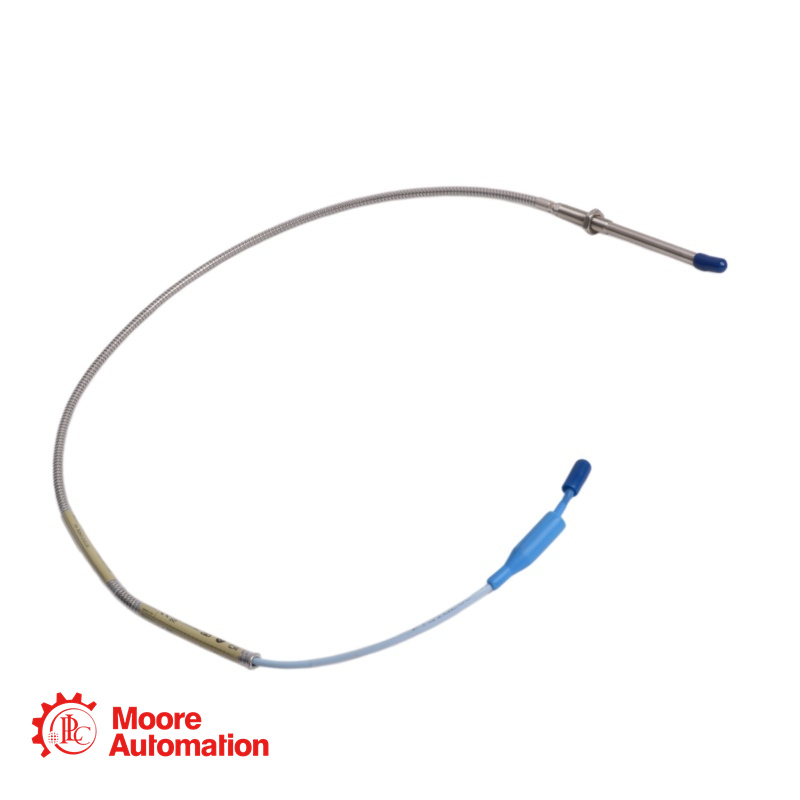

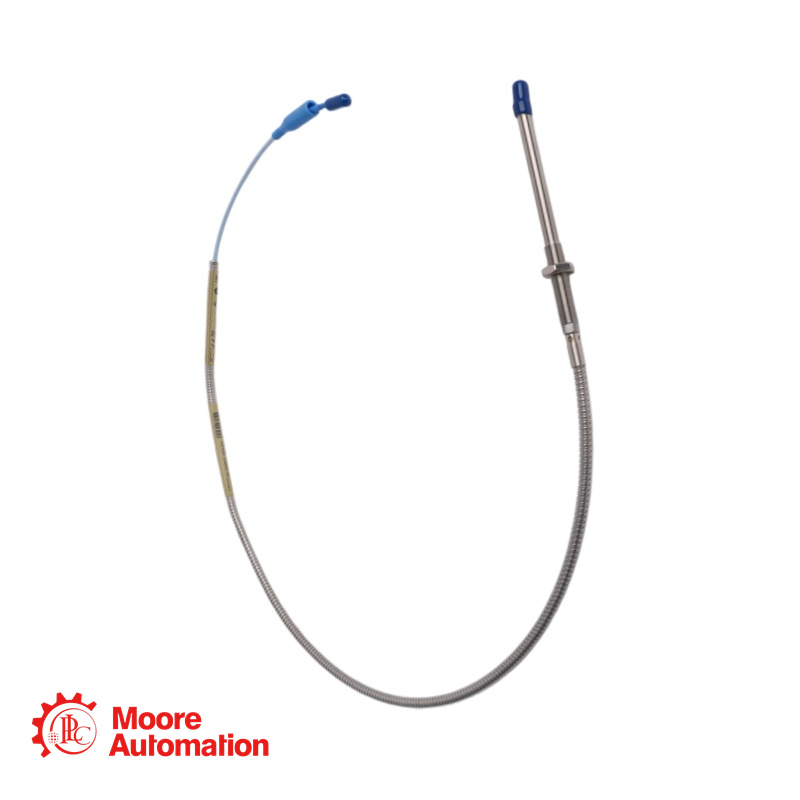

The 330104-07-14-05-01-05 is a 3300 XL 8 mm Proximity Probe with M10 x 1 threads and flexible stainless steel armor.
Merk :
Bently NevadaOnderdeel nummer :
330104-07-14-05-01-05Gewicht :
0.2 kgDimensie :
32x30x2cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Proximity Probe
330104-07-14-05-01-05 At A Glance
The 330104-07-14-05-01-05 is a 3300 XL 8 mm Proximity Probe with M10 x 1 threads and flexible stainless steel armor. It is part of the 3300 XL 8 mm Proximity Transducer System, which uses eddy current technology to measure static position and dynamic vibration.
Brand
Bently Nevada
Origin
USA
Product Family
3300 XL 8 mm Proximity Transducer System
Product lifecycle
Active Product
Net weight
0.2 kg
Condition
Original New
Warranty
12 Months
330104-07-14-05-01-05 Specification
|
Parameter |
Specification |
|
Base Model |
330104 |
|
Probe Type |
3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor |
|
Unthreaded Length (Option A) |
70 mm (0.7) |
|
Overall Case Length (Option B) |
140 mm (14) |
|
Total Length (Option C) |
5.0 meters (16.4 feet) |
|
Connector and Cable Type (Option D) |
01: Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval (Option E) |
05: CSA, ATEX, IECEx Approvals |
|
Linear Range |
2 mm (80 mils) from approximately 0.25 to 2.3 mm (10 to 90 mils) |
|
Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error over the 80 mil linear range from 0°C to +45°C (+32°F to +113°F) |
|
Nominal Probe DC Resistance |
8.73 Ω ± 0.50 Ω (for 5.0 meter probe length) |
|
Recommended Gap Setting for Radial Vibration |
-9 Vdc [approximately 1.27 mm (50 mils)] |
▶Radial Vibration Monitoring: Measures shaft vibration on fluid-film bearing machines such as steam turbines, gas turbines, compressors, and pumps.
▶Axial (Thrust) Position Monitoring: Monitors shaft axial position to detect thrust bearing wear or improper alignment.
▶Keyphasor Reference: Provides a once-per-turn reference signal for phase measurement, speed detection, and synchronous analysis.
▶Speed Measurement: Used for tachometer and overspeed protection applications
▶Machinery with Hazardous Area Requirements: The 05 agency approval option allows installation in potentially explosive atmospheres.
|
|
|
|
|
|
|
Q: How do I verify that the unthreaded length and case length are compatible?
▶A: The unthreaded length must be at least 20 mm less than the case length. For this configuration, the case length is 140 mm and the unthreaded length is 70 mm, which satisfies the requirement (70 mm ≤ 120 mm).
Q: What is the difference between 01 and 02 for Option D (Connector and Cable Type)?
▶A: Option 01 includes a miniature coaxial ClickLoc connector with a connector protector, while Option 02 includes the same connector without a connector protector. Connector protectors provide increased environmental protection for the connection.
Q: Can I use this 330104-07-14-05-01-05 probe with a 9 meter Proximitor sensor?
▶A: No. The 05 in Option C indicates this is a 5.0 meter probe. 5-meter probes are designed for use with the 5 meter Proximitor sensor only.
Q: What is the purpose of the armor on this 330104-07-14-05-01-05 probe?
▶A: The flexible stainless steel armor (AISI 302 or 304 SST with FEP outer jacket) provides mechanical protection to the probe cable, making it more resistant to physical abuse and wear in industrial environments.
Q: What is the frequency response of this 330104-07-14-05-01-05 probe?
▶A: The frequency response is 0 to 10 kHz, +0, -3 dB, with up to 305 meters (1000 feet) of field wiring.
