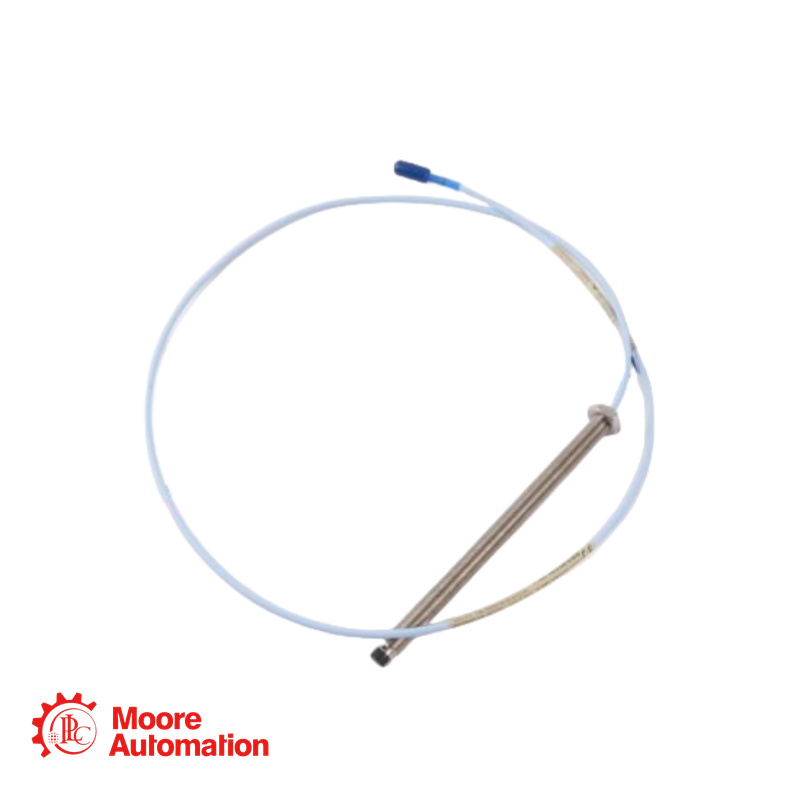

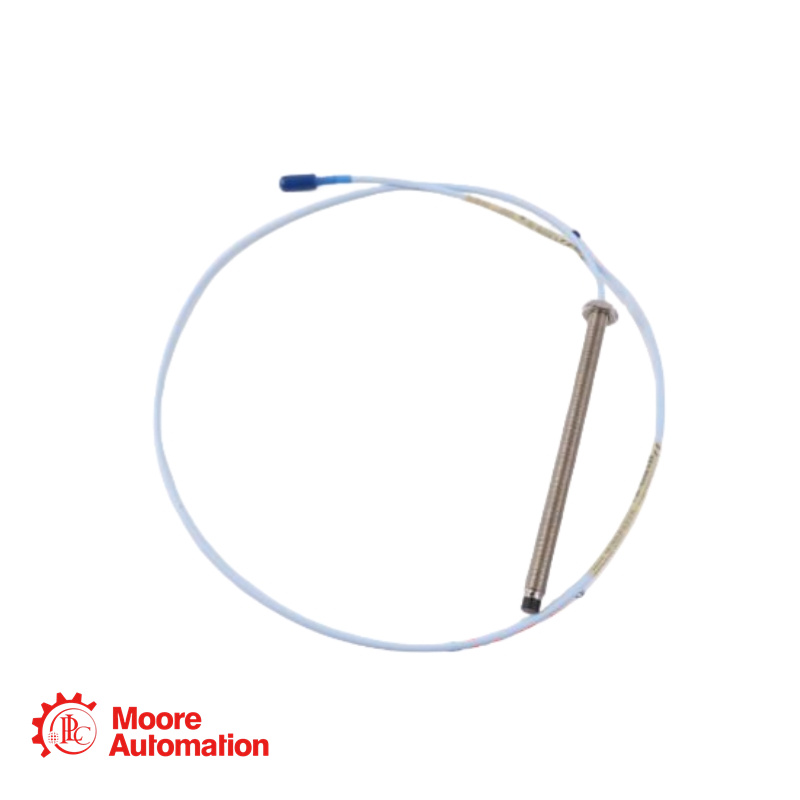

330192-00-20-10-00 Bently Nevada ETR Probe

330192-00-20-10-00 ETR Probe

3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with stainless steel armor, 0.0 in unthreaded length, 2.0 in case length, 1.0 m cable with miniature coaxial ClickLoc connector, standard cable, no agency approvals..

330192-00-20-10-00 Specifications

Base Model:330192 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor
A: Unthreaded Length:00 0.0 in (minimum; must be at least 0.8 in less than case length)
B: Overall Case Length:20 2.0 in (ordered in 0.5 in increments for ETR probes)
C: Total Cable Length:10 1.0 meter (3.3 feet)
D: Agency Approval:00 Not required
Thread Type: 3/8-24 UNF-2A (unified fine thread)
Armor: With stainless steel armor (AISI 302 or 304 SST with FEP outer jacket)
Unthreaded Length: 0.0 in (minimum allowable)
Overall Case Length: 2.0 in
Total Cable Length: 1.0 meter (3.3 feet)
Cable Type: 75 Ω triaxial, FEP insulated, standard cable

330192-00-20-10-00 FAQ

Q: Can this ETR probe be used with standard (non-ETR) extension cables and Proximitor Sensors?
A: Yes. The 330192 ETR probe is fully compatible with standard temperature probes and cables. You can use it with a standard 330130 extension cable and the standard 3300 XL Proximitor Sensor (330180). However, when any ETR component is used, the ETR component limits the system accuracy to the ETR system specifications (ISF ± 6.5% vs. ± 5% for standard, and wider DSL tolerances at extended temperatures).

Q: What Proximitor Sensor system length should this probe be paired with?
A: This is a 1.0-meter probe, which can be used with various system lengths depending on the extension cable selected. The combination of probe cable length plus extension cable length must equal the Proximitor Sensor system length (5 m or 9 m). For a 5.0 m system, pair this with a 4.0 m extension cable (330130-040 or 330190-040). This probe cannot be used with a 1 m system Proximitor Sensor unless no extension cable is required.
