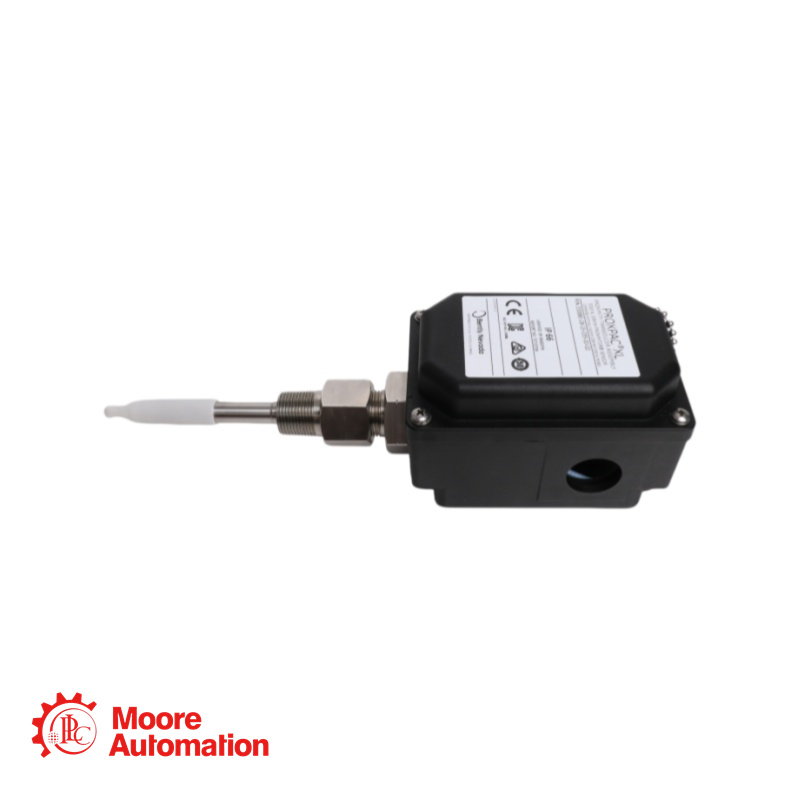

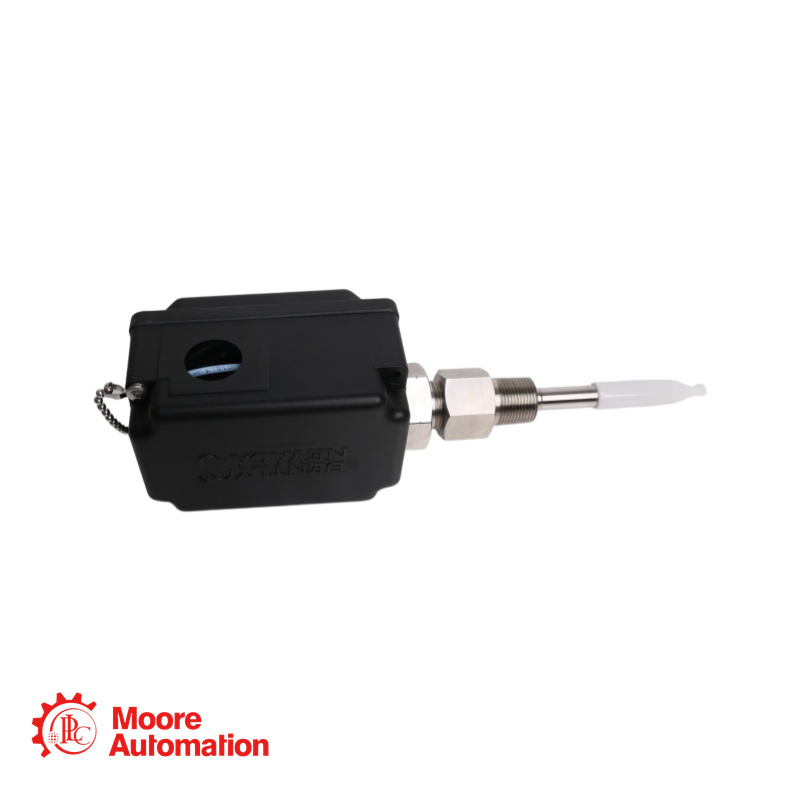

Bently Nevada 330880-28-15-106-00-02 Proximity Transducer Assembly
Merk :
Bently NevadaOnderdeel nummer :
330880-28-15-106-00-02Gewicht :
0.1 kgDimensie :
1.4x1.2x116cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Proximity Transducer Assembly
>>>Inquire 330880-28-15-106-00-02
Email: sales5@mooreplc.com
Phone/ Whatsapp: +86 15359408275
>>>330880-28-15-106-00-02
Part Number: 330880-28-15-106-00-02
Product:PROXPAC XL Proximity Transducer Assembly
Option Code
Selection
Description
AA (Probe & Approvals)
28
3300 XL 8 mm probe with Multiple Approvals
BB (Standoff Adapter)
15
1.5 inches (38 mm)
CCC (Probe Penetration)
106
10.6 inches (269 mm)
DD (Fittings)
00
No fittings; two plugs and two washers
EE (Mounting Thread)
02
3/4-14 NPT (Required if ordering Standoff Adapter)
>>>Specification - 330880-28-15-106-00-02
Housing Material:UV-resistant, glass-reinforced PPS thermoplastic with conductive fibers
Housing Rating:Type 4X, IP66
Probe Type:3300 XL 8 mm probe with 1-meter cable
Probe Tip Material:Polyphenylene Sulfide (PPS)
Probe Case Material:AISI 304 stainless steel
Linear Range:2 mm (80 mils) from ~0.25 mm to 2.3 mm (~ -1 Vdc to -17 Vdc)
Recommended Gap:1.27 mm (50 mils)
Incremental Scale Factor:(ISF) 7.87 V/mm (200 mV/mil) ±5%
Frequency Response:0 to 10 kHz (+0, -3 dB) with up to 305 m field wiring
>>> FAQ - 330880-28-15-106-00-02
1. What is the 3300 XL 8 mm Proximity Transducer System used for?
It is used for vibration and position measurements on fluid-film bearing machines (e.g., compressors, turbines, pumps), as well as Keyphasor reference and speed measurements. The 8 mm system is the most rugged and commonly used eddy current proximity transducer in Bently Nevada's product line.
2. Is this probe approved for hazardous areas?
Yes. Option E = 05 means the probe has CSA, ATEX, and IECEx approvals for use in hazardous locations. Refer to the Temperature Schedule in the datasheet for T-class vs. ambient temperature limits (e.g., T5 @ -55°C to +40°C, T4 @ -55°C to +80°C).
3. What is the recommended gap setting?
The recommended gap is 1.27 mm (50 mils). The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm, corresponding to an output voltage of approximately -1 Vdc to -17 Vdc.
|
