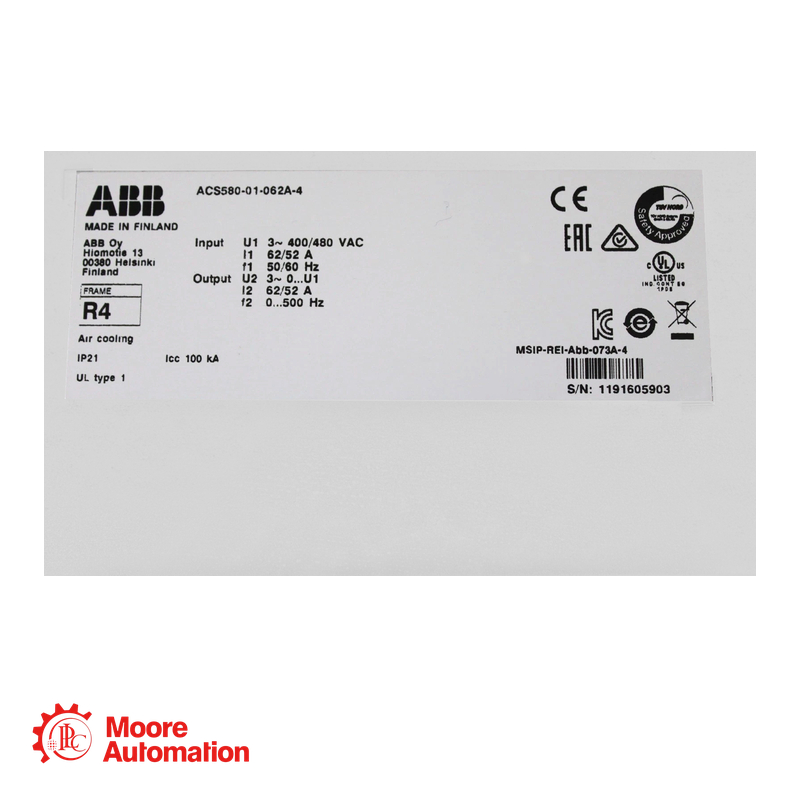

ABB ACS580-01-062A-4 30 kW General Purpose AC Drive

Contact Frida for ACS580-01-062A-4 Pricing

Product Overview

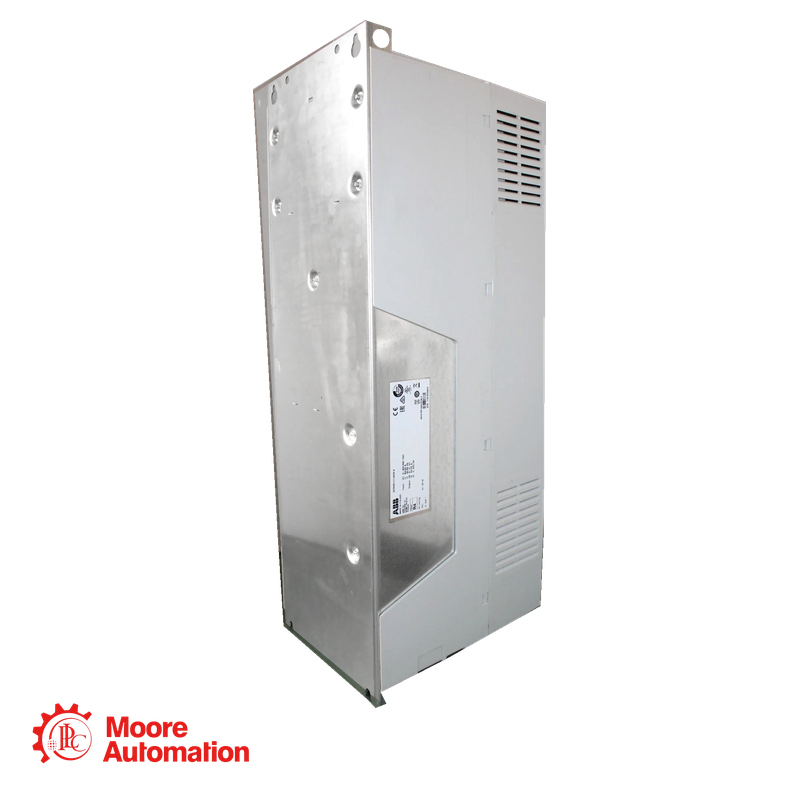

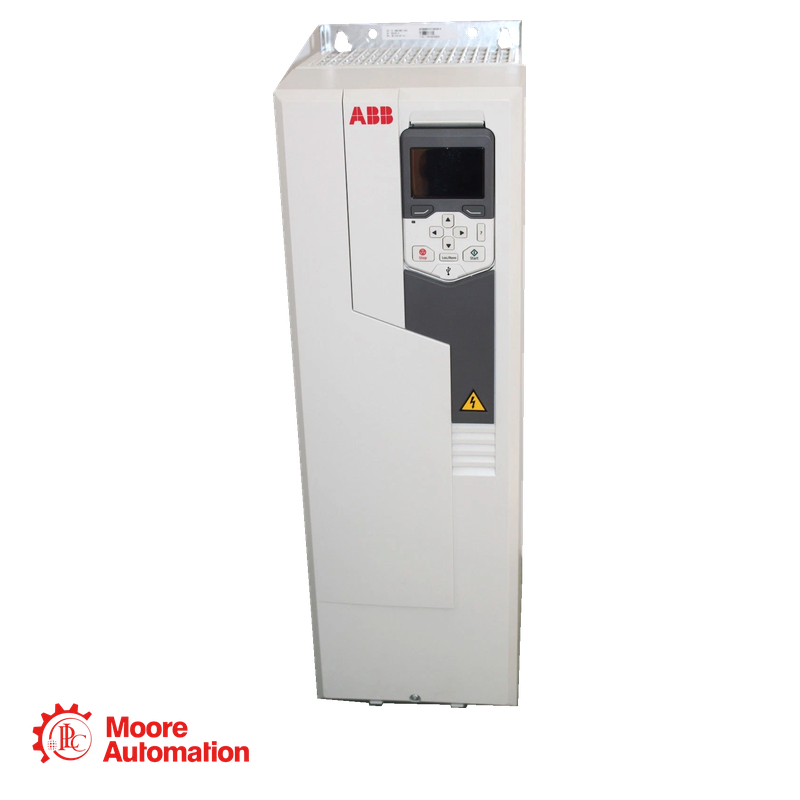

The ABB ACS580-01-062A-4 is a wall-mounted general-purpose AC drive for controlling three-phase motors in industrial and building-service applications. Its nominal IEC rating is 30 kW with an output current of 62 A at 400 V. This model uses the R4 frame and is supplied with an IP21 enclosure. It is intended for installation in an indoor electrical environment with sufficient cooling space and protection from condensation, conductive dust and direct water exposure. The drive supports induction, permanent-magnet and synchronous reluctance motors. Standard functions include an assistant control panel, Safe Torque Off, an internal EMC filter and Modbus RTU communication. It can operate as a standalone motor controller or connect to a wider automation system through its standard and optional communication interfaces.

Technical Specifications

Benefits

- Adjustable motor speed
- Controlled starting and stopping
- Reduced starting current
- Lower mechanical stress
- Integrated energy monitoring
- Simplified drive commissioning
- Flexible system connectivity
- Wall-mounted installation

Key Highlights

● 30 kW nominal IEC motor rating
● 62 A nominal output at 400 V
● 81 A maximum output current
● 380–480 V three-phase supply
● R4 wall-mounted frame
● Integrated Safe Torque Off
● Standard Modbus RTU interface
● Assistant control panel

Customer Questions and Answers

Industries Served

Water and Wastewater--The ACS580-01-062A-4 can regulate transfer pumps, circulation pumps and pressure-control equipment within its rated capacity. Matching pump speed to actual flow demand can reduce throttling losses, water hammer and unnecessary full-speed operation.

HVAC and Building Services--The drive can control ventilation fans, cooling-tower fans, blowers and circulation pumps. Variable-speed operation allows the system to respond to changing airflow, temperature or pressure requirements while reducing mechanical control losses.

Food and Beverage Processing--Applications may include process pumps, mixers, agitators and conveyors driven by compatible three-phase motors. Controlled acceleration and deceleration can reduce shock loads and provide steadier movement of products and ingredients.

Material Handling--The unit can be applied to conveyors, feeders and transfer equipment requiring adjustable speed. Correctly configured ramps help reduce belt slip, material movement and stress on couplings, gearboxes and other transmission components.
