ABB S800 I/O · ANALOG INPUT

AI825

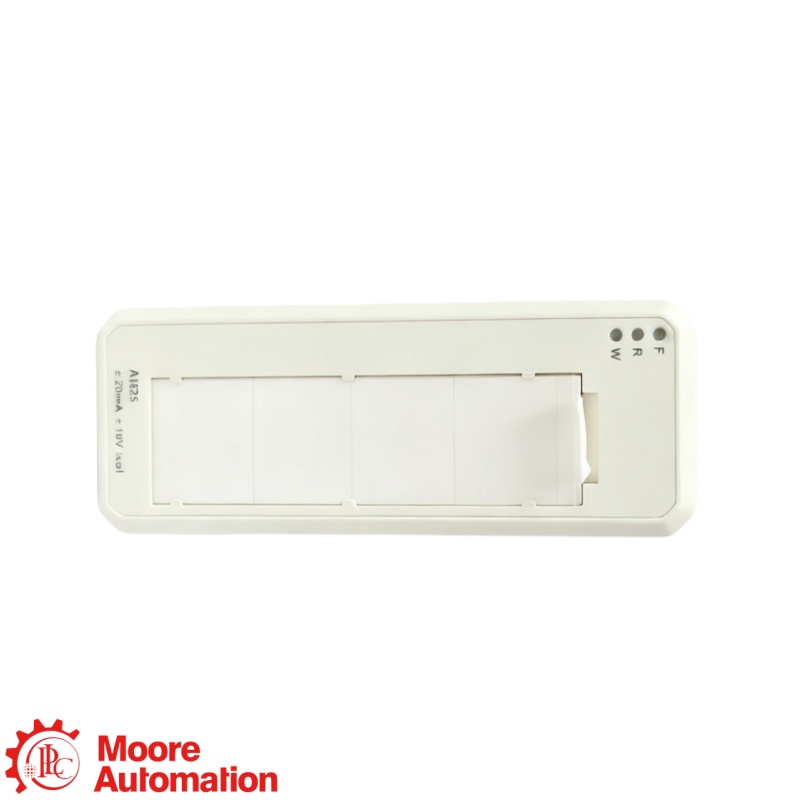

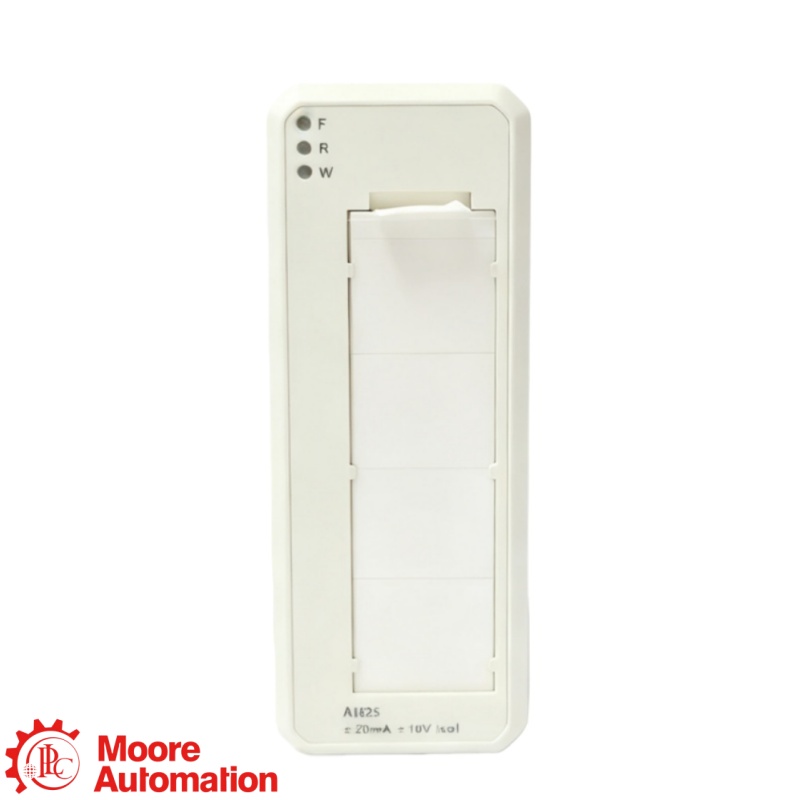

The ABB AI825 is an S800 I/O analog input module with four individually isolated bipolar current or voltage channels and 14-bit resolution plus sign.

CHANNELS4 isolated
CURRENT±20 mA
VOLTAGE±10 V
RESOLUTION14 bit + sign
MANUFACTURERABB
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ↗ABB S800 I/O · ANALOG INPUT
S800 I/O ANALOG INPUT MODULE

AI825

3BSE036456R1

4 isolated analog inputs · current or voltage selection per channel · 14-bit resolution plus sign · S800 I/O.

PRODUCT ROLE

AI825 acquires four individually galvanically isolated bipolar current or voltage signals for an S800 I/O station.

CONFIGURATION NOTE

Confirm article number 3BSE036456R1, signal range, compatible MTU, field grounding, cable shielding, ModuleBus supply and controller hardware definition before replacement.

👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the AI825 model is structured

AI825
Complete module modelAnalog input module
VERIFIED ABB MANUFACTURER DATA

Technical Specifications

ABB AI825 ↗
General Information−
BrandABB
ModelAI825
Article number3BSE036456R1
Product typeAnalog input module
MechanicsS800 I/O
Analog Input Data+
Number of channels4
Signal ranges−20…+20 mA, 0(4)…20 mA, −10…+10 V and 0(2)…10 V
Resolution14 bit plus sign
IsolationEach channel is isolated from the other channels and circuit common
HARTSignals can pass HART communication; the module itself is not a HART interface
Compatibility and Installation+
Matching MTUsTU811V1, TU813 and TU831V1
ModuleBus supplyInput stages are powered from the 24 V ModuleBus
Input protectionCurrent input protection is designed to withstand up to +30 V d.c.
Replacement checkSignal type, range, MTU wiring and hardware definition must match the project

Source: ABB AI825 Data Sheet, article number 3BSE036456R1.

FAQ

Questions Buyers Ask Most

What signals can the AI825 module measure?+
AI825 measures four bipolar analog input channels, and each channel can be configured for supported current ranges up to ±20 mA or voltage ranges up to ±10 V within an S800 I/O station.
Are the four AI825 input channels electrically isolated from one another?+
AI825 provides individual galvanic isolation between channels and from circuit common, which is a central compatibility feature when the installed field circuits use separate references.
Does AI825 act as a HART communication module?+
AI825 can withstand HART communication superimposed on the analog signal, but the module is specified as a non-HART analog input module, so engineering should not assume native HART device management.
Which MTUs can be paired with AI825?+
AI825 is documented for use with TU811V1, TU813 and TU831V1, and the selected MTU wiring and keying must match the current or voltage field circuit.
What must be reviewed before an AI825 replacement is energized?+
Before energizing AI825, verify article number 3BSE036456R1, channel signal type, configured range, polarity, MTU terminals, shielding, grounding, ModuleBus supply and the controller hardware definition.
Which details should be supplied for an AI825 purchase inquiry?+
An AI825 inquiry should state article number 3BSE036456R1, quantity, installed MTU, current or voltage ranges, channel use, controller system, module revision and provide clear nameplate photographs.
CONTACT PRODUCT SPECIALIST

Confirm your AI825 configuration with Frida

Confirm article number 3BSE036456R1, signal range, compatible MTU, field grounding, cable shielding, ModuleBus supply and controller hardware definition before replacement.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

ABB AI825 Product Information

Official ABB manufacturer-reference information for AI825, article number 3BSE036456R1.

AI825 Technical Data

The ABB AI825 is an S800 I/O analog input module with four individually isolated bipolar current or voltage channels and 14-bit resolution plus sign. Confirm article number 3BSE036456R1, signal range, compatible MTU, field grounding, cable shielding, ModuleBus supply and controller hardware definition before replacement.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, article number, quantity, revision, installed system and your technical or purchasing question.

Source: ABB AI825 Data Sheet, article number 3BSE036456R1.
