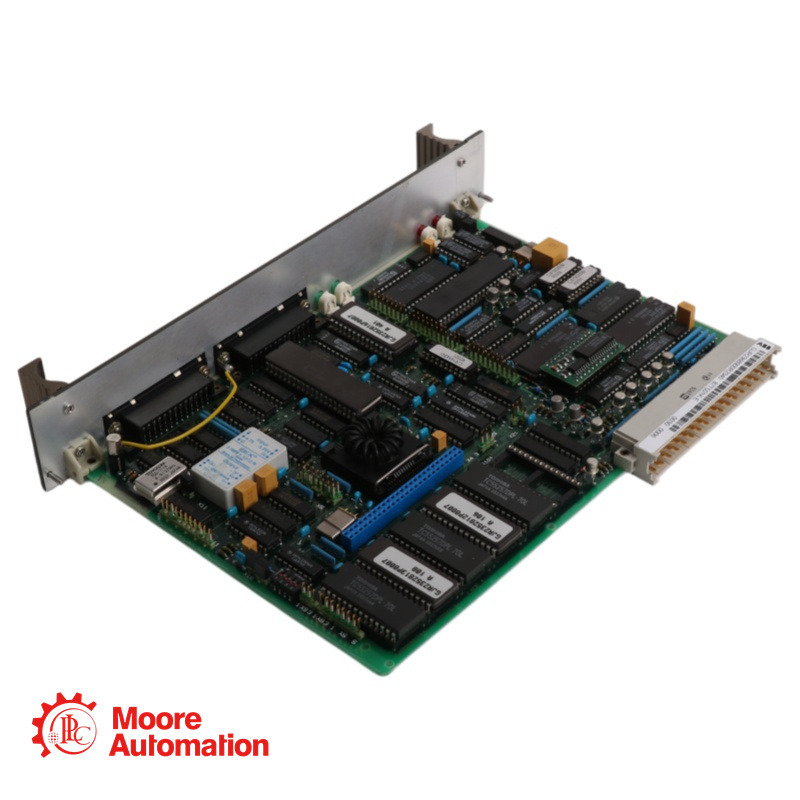

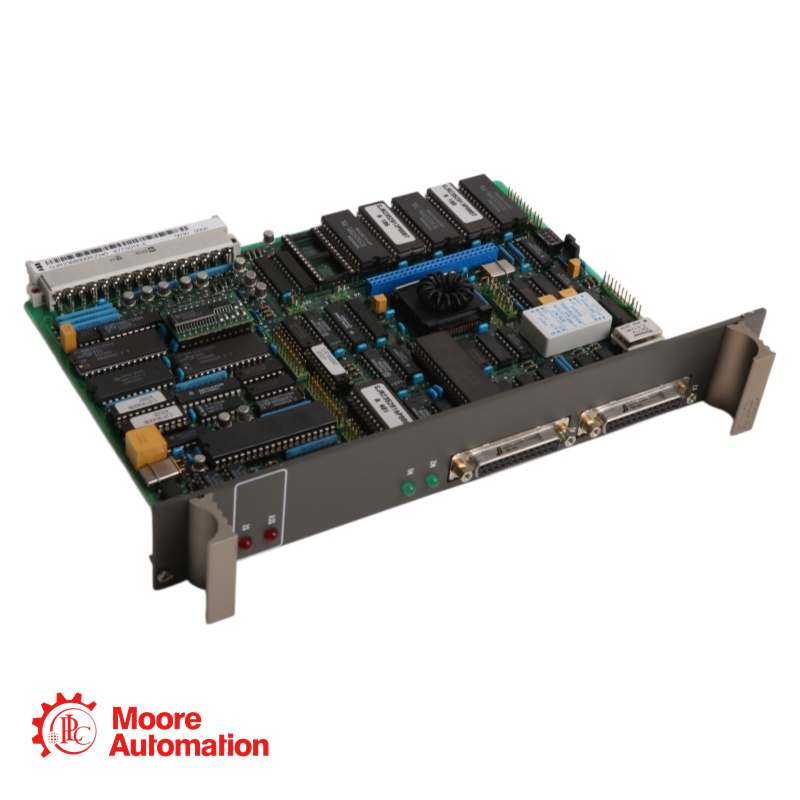

The ABB GJR2368900R1550 87TS01K-E is a compact digital input/output module designed for the Procontic T200 and T300 distributed control systems.
Merk :
ABBOnderdeel nummer :
GJR2368900R1550 87TS01K-EGewicht :
0.5kgDimensie :
4x19.8x26.1cmLand van herkomst :
SwedenHS-code :
8537101190Beschrijving :
Digital I/O Module
>>>Easily To Get Price:
Contact 5 STAR Manager: Frida
Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275
>>>GJR2368900R1550 87TS01K-E
Core Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
ABB |
|
Model Number |
87TS01K-E |
|
Order Code / Part No. |
GJR2368900R1550 |
|
Product Type |
Digital I/O Module / Control Board |
|
System Compatibility |
Procontic T200, Procontic T300 Distributed Control Systems |
|
Digital Inputs (DI) |
8 channels |
|
Digital Outputs (DO) |
8 channels |
|
Total I/O Count |
16 digital points (8 DI + 8 DO) |
|
Input Voltage Range |
18–30V DC (nominal 24V DC) |
|
Input Current |
≤ 7.5 mA per channel |
|
Output Voltage Range |
5–30V DC |
|
Output Current |
≤ 1A per channel |
|
Tolerance Voltage Rating |
4 kV |
|
Communication Function |
Central PLC to decentralized I/O station data exchange |
|
Operating Temperature |
-25°C to +55°C |
|
Storage Temperature |
-40°C to +85°C |
|
Relative Humidity |
10–95% non-condensing |
>>>GJR2368900R1550 87TS01K-E
Detailed Description
The ABB GJR2368900R1550 87TS01K-E is a compact digital input/output module designed for the Procontic T200 and T300 distributed control systems. Serving as a critical communication node, this module facilitates seamless data exchange between the central processor and decentralized I/O stations, enabling reliable distributed control architectures
>>>GJR2368900R1550 87TS01K-E
Operational benefits
▲Balanced I/O Configuration: The module provides 8 digital input channels and 8 digital output channels in a single compact unit, offering a balanced solution for applications requiring both sensor monitoring and actuator control at remote I/O locations.
▲High Electrical Robustness: With 4 kV tolerance voltage rating, the module provides superior protection against electrical transients and surges, ensuring reliable operation in electrically harsh industrial environments.
▲Wide Operating Range: Designed for demanding industrial conditions, the module operates reliably across a -25°C to +55°C temperature range, making it suitable for installations in unconditioned environments, outdoor enclosures, and temperature-variable manufacturing facilities.
▲Space-Efficient Form Factor: The slim 22.5 mm width allows for high-density mounting in control cabinets, maximizing I/O capacity within limited panel space.
▲Decentralized I/O Architecture: As a critical communication node, this module enables distributed I/O architectures where field devices can be located close to the process, reducing wiring costs and improving signal integrity.
>>>GJR2368900R1550 87TS01K-E
FAQ Section
|
What system is the ABB GJR2368900R1550 87TS01K-E designed for? |
|
This module is designed for the ABB Procontic T200 and T300 distributed control systems. It serves as a critical communication node, facilitating data exchange between the central processor and decentralized I/O stations. |
|
How many I/O channels does the GJR2368900R1550 87TS01K-E provide? |
|
The module provides 8 digital input channels and 8 digital output channels, for a total of 16 digital points per module. |
|
What is the output current rating for the digital outputs? |
|
Each digital output channel is rated for up to 1A at 24V DC, suitable for directly driving small solenoids, relay coils, indicator lamps, and interfacing with downstream control devices. |
|
What is the voltage tolerance rating of this module? |
|
The module features a 4 kV tolerance voltage rating, providing robust protection against electrical surges and transients common in industrial environments. |
|
What is the difference between GJR2368900R1550 and other 87TS01K-E variants? |
|
The 87TS01K-E product family includes multiple order codes with different functions: |
