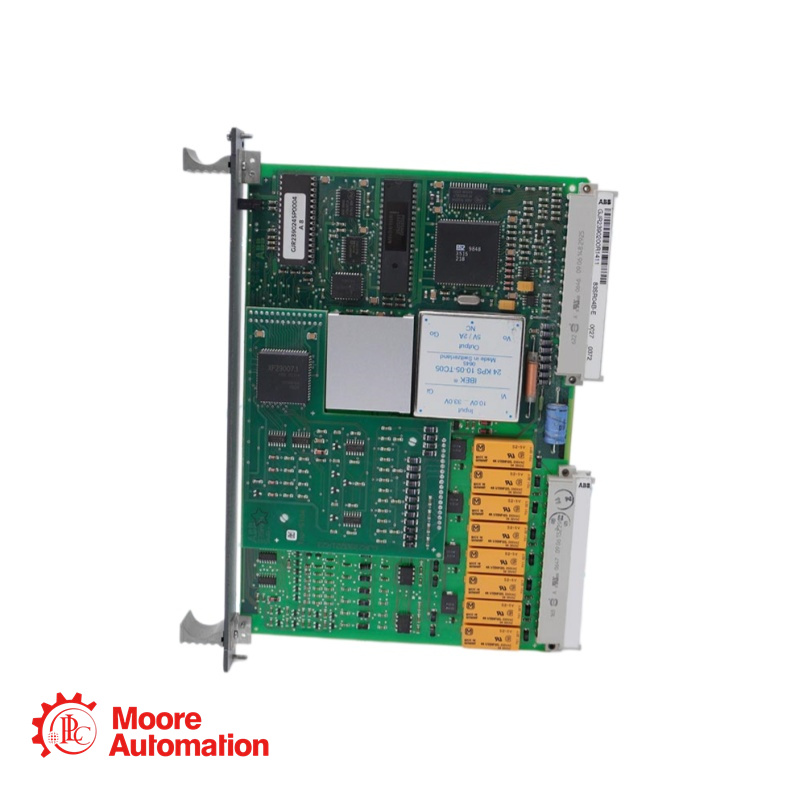

ABB GJR2390200R1411 83SR04AE Control Module Universal

Parameter

Specification

Manufacturer

ABB

Model Number

83SR04A-E

Order Code / Part No.

GJR2390200R1411

Product Type

Binary Input/Output Module

System Compatibility

Procontrol P14 Series

I/O Configuration

Configurable digital I/O

Digital Inputs (DI)

16 channels (max)

Digital Outputs (DO)

16 channels (max)

Total I/O Count

Up to 32 digital points

Input Voltage

24V DC (sink/source configurable)

Output Type

Solid-state relay, 24V DC / 0.5A per channel

Response Time

< 2 ms (typical)

Communication Protocol

MODBUS, CANopen, RS485 (via backplane)

Protection Class

IP20

Isolation

Opto-isolated between field

What is the difference between the 83SR04AE and the 83SR04C-E?

Both modules share the same catalog number GJR2390200R1411 and are part of the 83SR04 series for Procontrol P14. The 83SR04C-E represents a newer revision with enhanced response time (< 1 ms vs. < 2 ms), improved diagnostic capabilities, and updated component sourcing for extended lifecycle availability. The 83SR04AE is the original version; both are functionally compatible within the same system architecture.

How many digital I/O points does the ABB GJR2390200R1411 provide?

The module supports a maximum of 16 digital inputs and 16 digital outputs, for a total of up to 32 digital points per module. The actual input/output ratio can be configured based on application needs, allowing for flexibility in system design.

What is the output current rating for the digital outputs?

Each digital output is rated for 0.5A at 24V DC (solid-state relay type). This is suitable for directly driving small solenoids, relay coils, indicator lamps, and interfacing with downstream inputs. For higher current loads, external interposing relays are recommended.

Can the 83SR04AE be used with 120V AC field devices?

No. The module is designed for 24V DC operation. Field devices requiring AC voltage or higher DC voltages will require external interface relays or isolation modules.
