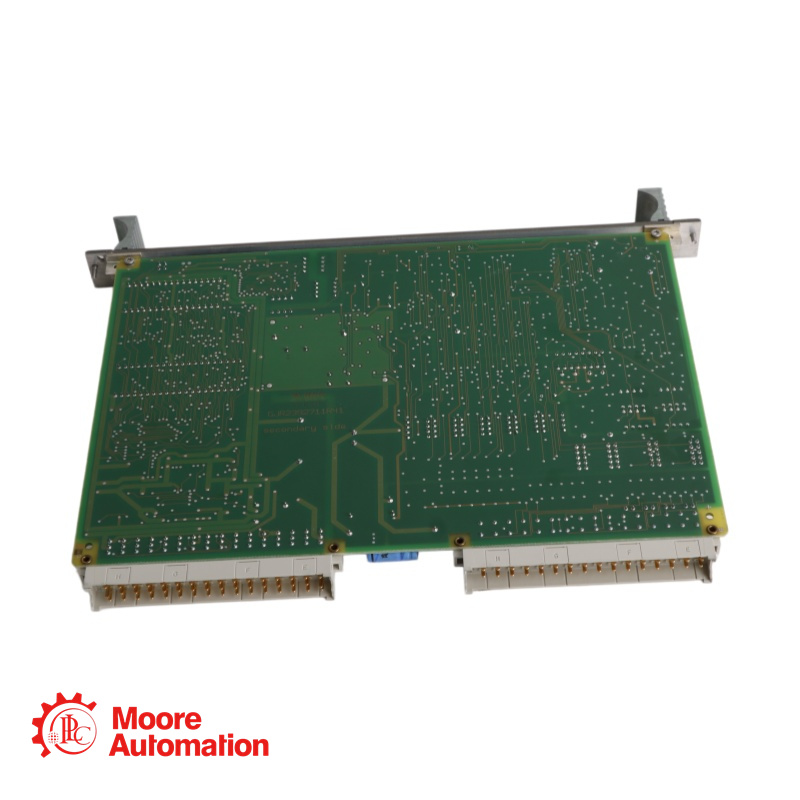

ABB GJR2392700R1210 83SR07F-E Control Module

Parameter

Specification

Manufacturer

ABB

Model Number

83SR07F-E

Order Code / Part No.

GJR2392700R1210

Product Type

Binary Input Module

System Compatibility

Procontrol P14 Series

Digital Inputs (DI)

32 channels

Input Voltage

24V DC

Input Type

Sink/source configurable

Input Current

5 mA per channel (typical)

Response Time

< 2 ms

How many digital inputs does the ABB 83SR07F-E provide?

The module provides 32 digital input channels, making it one of the highest-density digital input modules available for the Procontrol P14 system.

What types of field devices can be connected to the 83SR07F-E?

The module supports a wide range of 24V DC devices including:
Mechanical contacts: Limit switches, pushbuttons, selector switches, relay contacts
3-wire proximity sensors: Both PNP (source) and NPN (sink) configurations
2-wire sensors: Inductive and capacitive proximity sensors
Photoelectric sensors: Through-beam, retro-reflective, and diffuse types
Safety device outputs: Light curtains, safety gates, emergency stop contacts (with appropriate safety-rated integration)

What is the difference between sink and source configuration?

Sink (NPN) mode: The input provides a path to ground (0V). The field device supplies +24V to the input when active.
Source (PNP) mode: The input is connected to +24V internally. The field device provides a ground path (0V) when active.
The 83SR07F-E supports per-channel configuration, allowing mixed device types on the same module.

Does the module provide isolation between channels?

The module provides opto-isolation between the field inputs and the backplane logic. Channels share a common reference (typically 0V or +24V depending on sink/source configuration), but are isolated from the control system for noise immunity.
