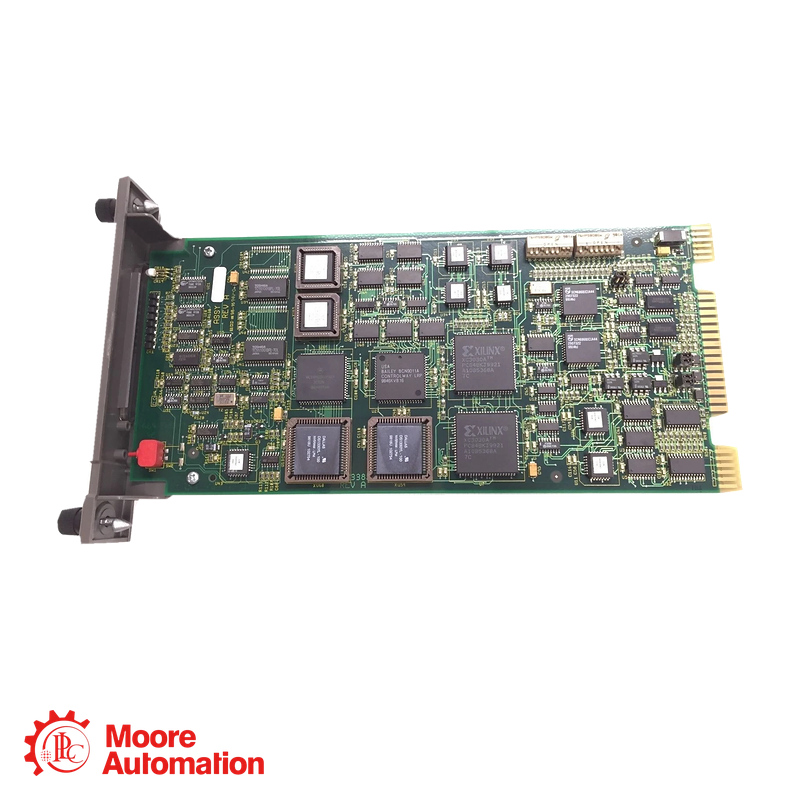

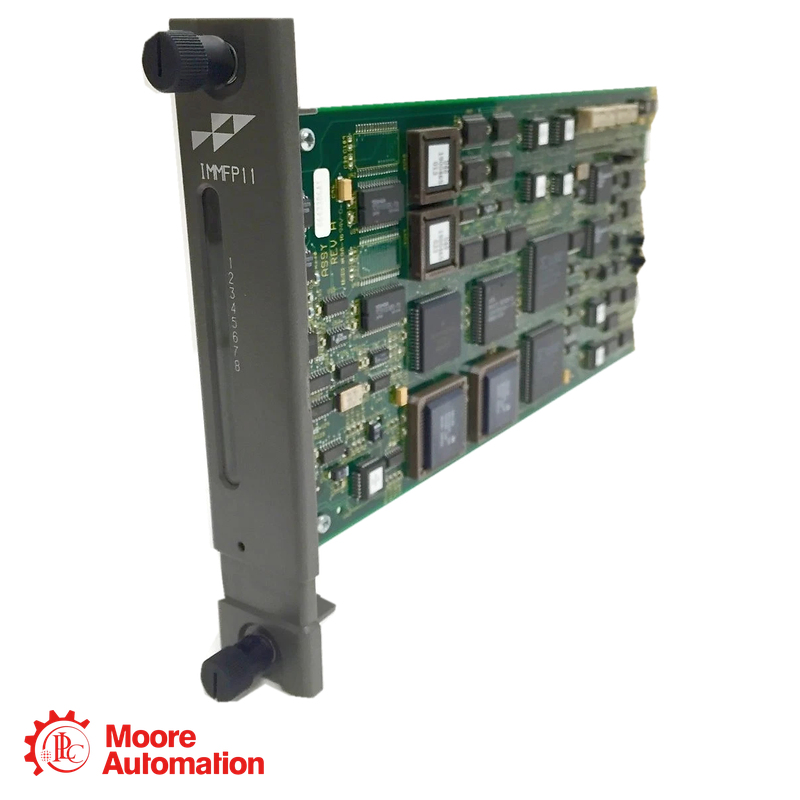

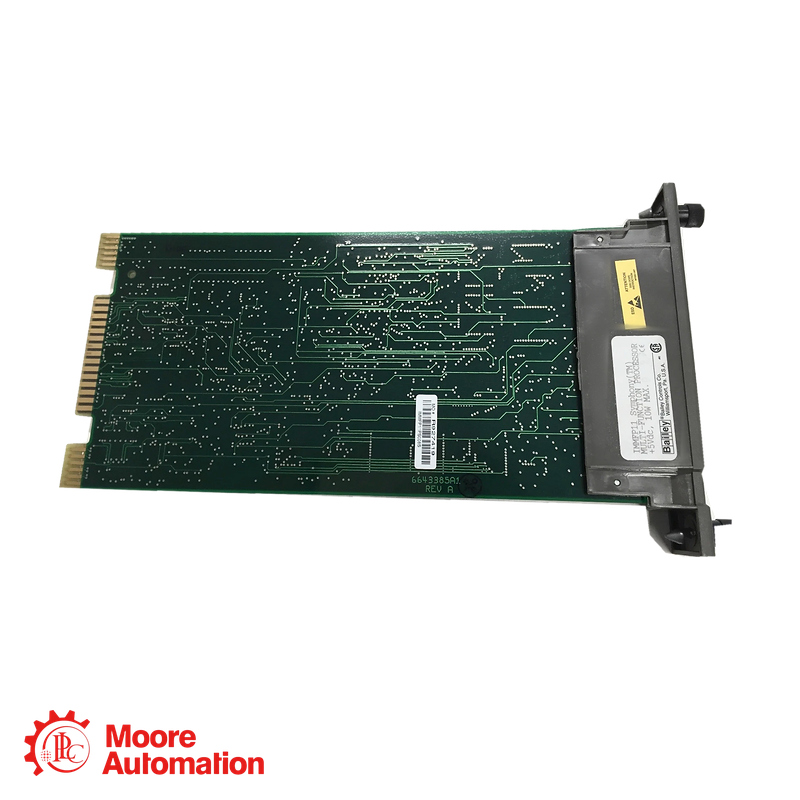

ABB IMMFP11 Harmony Rack Multifunction Processor

Contact Frida for IMMFP11 Pricing

Product Overview

The ABB IMMFP11 is a rack-mounted multifunction processor used for multiple-loop analog control, sequential logic, batch processing and advanced process-control strategies. It receives data from compatible analog and digital rack I/O modules through the I/O Expander Bus, executes the configured control logic and sends calculated commands back to the process I/O system. IMMFP11 uses a 32-bit processor operating at 16 MHz. Its onboard memory consists of 256 KB ROM, 256 KB RAM and 64 KB NVRAM. The nonvolatile memory supports retention of control-related information when normal system power is interrupted.Within the control architecture, IMMFP11 communicates with other rack controllers through Controlway. Communication with higher-level control-network nodes is provided through the appropriate rack communication modules. The processor also supports external serial devices when the required termination hardware is installed.

Technical Specifications

Benefits

-Multiple-loop process control
-Analog, sequential and batch execution
-Nonvolatile configuration storage
-Redundant processor support
-Flexible serial-device connectivity
-Compact one-slot installation
-Multiple programming methods

Key Highlights

● 32-bit processor with a 16 MHz clock
● Dedicated ROM, RAM and NVRAM memory
● Serial communication up to 19.2 kbaud
● Support for 64 stations at 40 kbaud
● Support for eight stations at 5 kbaud
● 1 Mbaud redundant communication link
● Controlway and I/O Expander Bus communication
● Function code, C, Basic, Batch 90 and Ladder programming

Customer Questions and Answers

Industries Served

1. Power Generation--IMMFP11 can execute analog control loops, equipment sequences and plant-auxiliary control strategies in established power-generation systems. Separate control functions may be assigned for process measurement, interlocking and equipment-command applications.

2. Oil, Gas and Chemical Processing--The processor can coordinate continuous process variables such as pressure, temperature, flow and level through compatible rack I/O modules. Its support for sequential and batch logic also makes it applicable to staged process operations and material-transfer sequences.

3. Pulp and Paper Production--IMMFP11 may be used for stock preparation, chemical dosing, machine auxiliaries and plant-utility control. Multiple programming methods allow continuous control loops and machine sequences to operate within the same controller configuration.

4. Water and Wastewater Treatment--The processor can manage pump sequences, tank-level control, chemical dosing and treatment-stage logic. Communication with compatible rack modules allows field information to be collected and processed within a centralized control cabinet.

5. Industrial Manufacturing--IMMFP11 can support production equipment requiring coordinated analog control, digital interlocks and timed operating sequences. Serial interfaces may also be used to exchange information with supported external devices when the required termination unit is installed.
