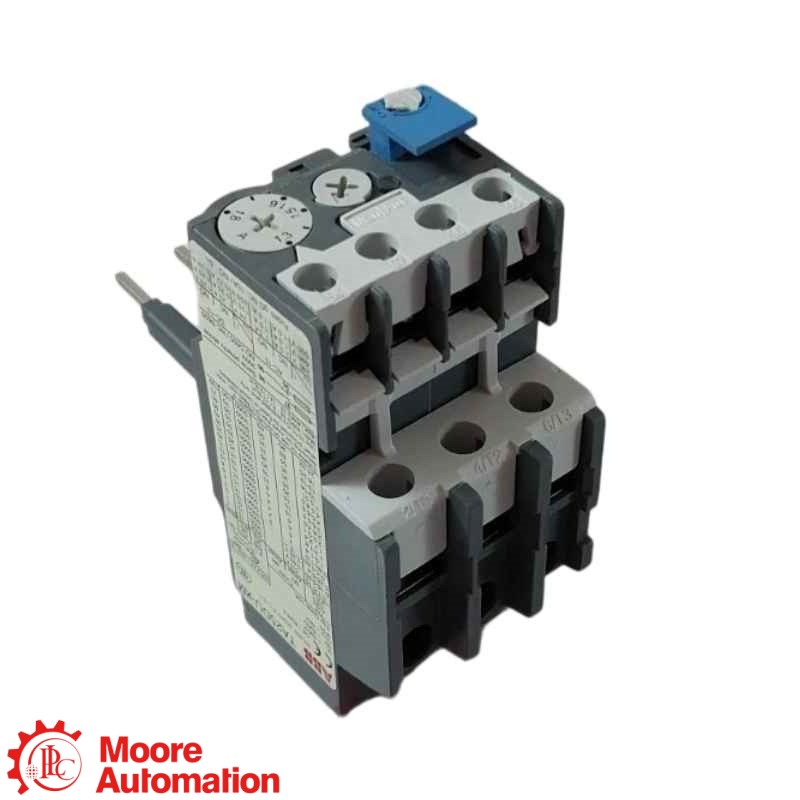

The ABB TA25DU-1.8M, order code 1SAZ211201R2025, is a three-pole thermal overload relay for motor-starter protection. It provides an adjustable 1.30–1.80 A current setting, trip class 10A, phase-failure sensitivity and one normally closed plus one normally open auxiliary contact.
Merk :
ABBOnderdeel nummer :
TA25DU-1.8M 1SAZ211201R2025Beschrijving :
Thermal Overload RelayThermal overload relay · adjustable 1.30–1.80 A setting · three protected poles · phase-failure sensitivity · 1 NC + 1 NO auxiliary contacts.
TA25DU-1.8M is an ABB three-pole thermal overload relay for motor-starter protection. It monitors sustained overload and phase-failure conditions and trips the starter control circuit; it does not provide short-circuit interruption.
Confirm the complete 1SAZ211201R2025 order code, motor full-load current, 1.30–1.80 A setting, compatible ABB AX contactor frame, reset mode, auxiliary-contact wiring and upstream short-circuit protective device before replacement.
ABB identifies TA25DU as the three-pole thermal overload relay family and 1.8M as the 1.30–1.80 A current-setting variant.
Official ABB manufacturer-reference information for the TA25DU-1.8M thermal overload relay, order code 1SAZ211201R2025.

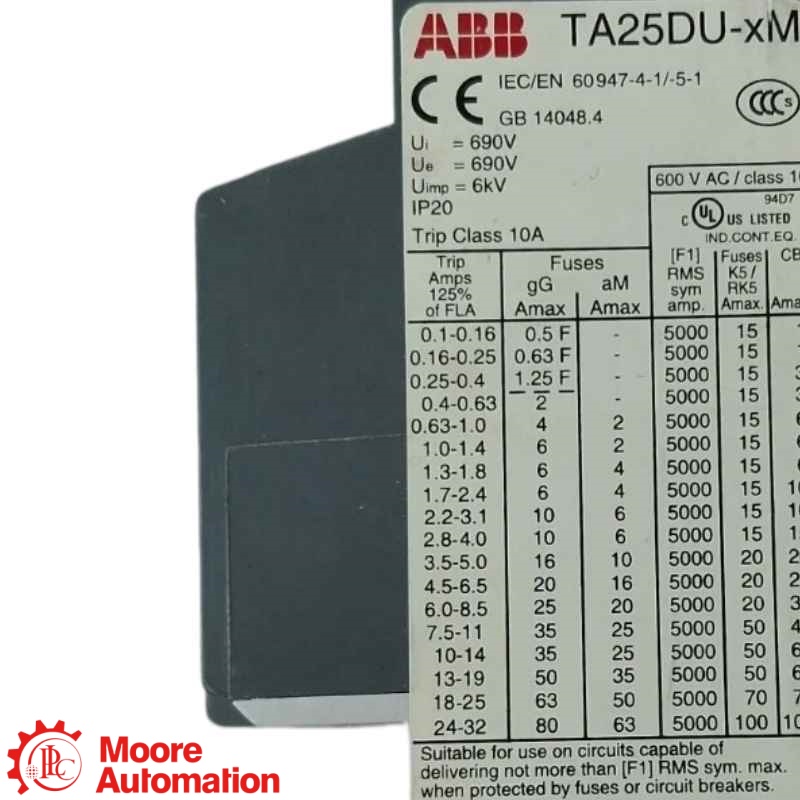

ABB Motor Protection and Control ordering data identifies TA25DU-1.8M as order code 1SAZ211201R2025 with a 1.30–1.80 A setting range, trip class 10A, recommended 6 A gG / 4 A aM short-circuit protection and an approximate unit weight of 0.150 kg.
OPEN OFFICIAL CATALOG ↗Send the complete order code, quantity, motor nameplate, contactor type, reset requirement and your technical or purchasing question.
Technical statements are limited to the documented TA25DU-M configuration. Confirm the installed starter, motor data and complete 1SAZ211201R2025 nameplate before ordering.
ABB is the manufacturer; TA25DU-1.8M is the three-pole thermal overload relay; and order code 1SAZ211201R2025 identifies the 1.30–1.80 A, trip-class-10A version.
Trips the starter control circuit under sustained overload or phase-failure conditions.
The motor nameplate current must lie inside the range and determine the actual dial setting.
Match the ABB AX contactor frame, terminal alignment and starter coordination table.
System relationship: verify the motor current, contactor designation, supply voltage, short-circuit protective device, 95-96/97-98 wiring, reset mode and enclosure conditions before replacement.
Protects three-phase motor circuits against sustained overload and phase-failure conditions.
Adjustable 1.30–1.80 A range; set the dial to the motor nameplate full-load current.
Direct mounting with a compatible ABB AX contactor; verify the frame and terminal alignment.
Verify the complete order code, 1 NC + 1 NO wiring, reset mode, upstream coordination and lifecycle status.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
