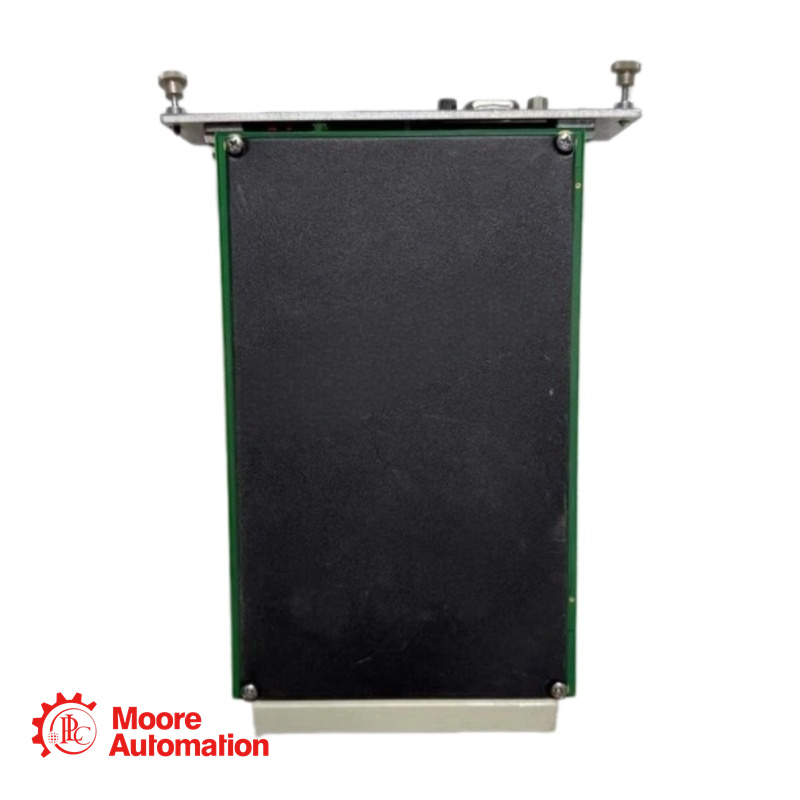

Z-ME-KZ-PS Digital Position Controller

The Z-ME-KZ-PS is a digital closed-loop controller designed specifically for plastic injection molding machines. It performs velocity and force/pressure closed-loop control according to real-time commands (analog or fieldbus) generated by the machine control unit. The controller receives position and pressure feedback signals and generates a reference signal to the proportional valve that regulates hydraulic flow to the injection actuator.

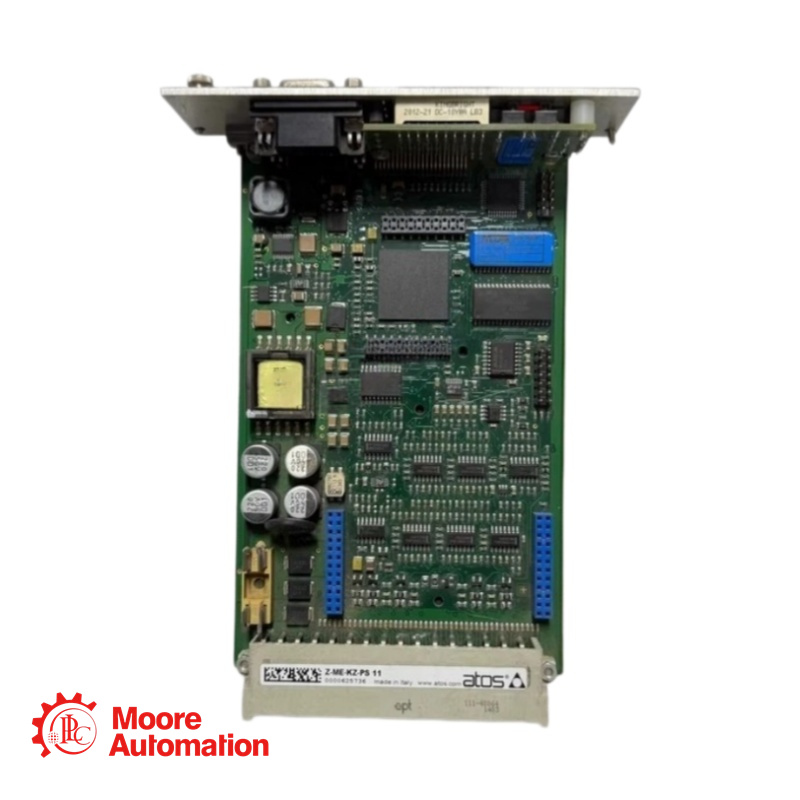

The controller supports multiple position transducer types (SSI, incremental encoder, potentiometer, analog) and pressure transducer inputs. It is housed in a Eurocard format (DIN 41494) and features a front panel with a 4-digit display, function keys, status LEDs, test points, and communication ports for configuration and diagnostics.

Z-ME-KZ-PS DETAILS

Model: Z-ME-KZ-PS/Gl
Power Supply: +24 Vcc (20-32 Vrms rectified/filtered, max ripple 10%)
Max Power Consumption: 10 W
Position Transducer Inputs: SSI, Incremental Encoder, Potentiometer, Analog
Pressure Transducer Inputs: Analog (voltage or current), 2 channels
Analog Inputs: ±10 V (Ri > 100 kΩ) or 0-20 mA (Ri < 500 Ω)
Analog Outputs: ±10 V @ max 10 mA, or 0-20 mA @ max 500 Ω
Digital Inputs: 8 channels, 0-5 V OFF, 16-24 V ON, Ri > 10 kΩ
Digital Outputs : 7 channels, 0-24 V @ max 30 mA
Enable Input: 0-5 V OFF, 16-24 V ON, Ri > 10 kΩ
Fault Output: 0-24 V @ max 50 mA (0 V = fault, 24 V = normal)

Z-ME-KZ-PS

Frequently Asked Questions (FAQ)

Q: What is the Z-ME-KZ-PS used for?
A: It is a closed-loop controller for plastic injection molding machines. It manages injection velocity, pack and hold pressure, back pressure, and decompression phases.

Q: What types of position transducers does it support?
A: It supports SSI (serial synchronous interface), incremental encoder, potentiometer, and analog (voltage or current) position transducers. The input type is software-selectable.

Q: How many pressure transducers can be connected?
A: Up to two remote pressure transducers can be connected for alternated position/force control. For position/pressure control, one transducer is sufficient.

Q: What communication options are available?
A: Standard: RS232 serial port (front panel) for configuration using Atos Z-SW software
BP Option: PROFIBUS DP (front panel) for fieldbus communication
BC Option: CANopen (rear connector) for fieldbus communication

Q: How is the controller configured and tuned?
A: Configuration and tuning are performed using Atos Z-SW programming software via the RS232 serial port. Parameters include PID dynamics, scaling, limits, digital I/O configuration, and fault handling.

Q: What is the recommended power supply for this controller?
A: A stabilized or rectified/filtered 24 Vdc supply is required. For rectified supplies, add at least 10,000 μF/40 V for single-phase or 4,700 μF/40 V for three-phase rectifiers.
