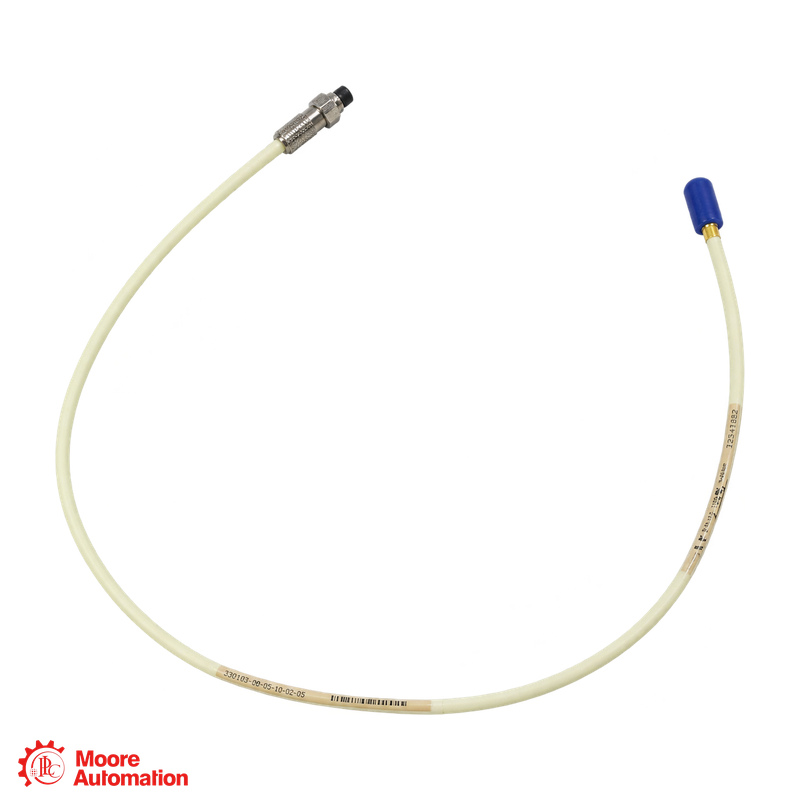

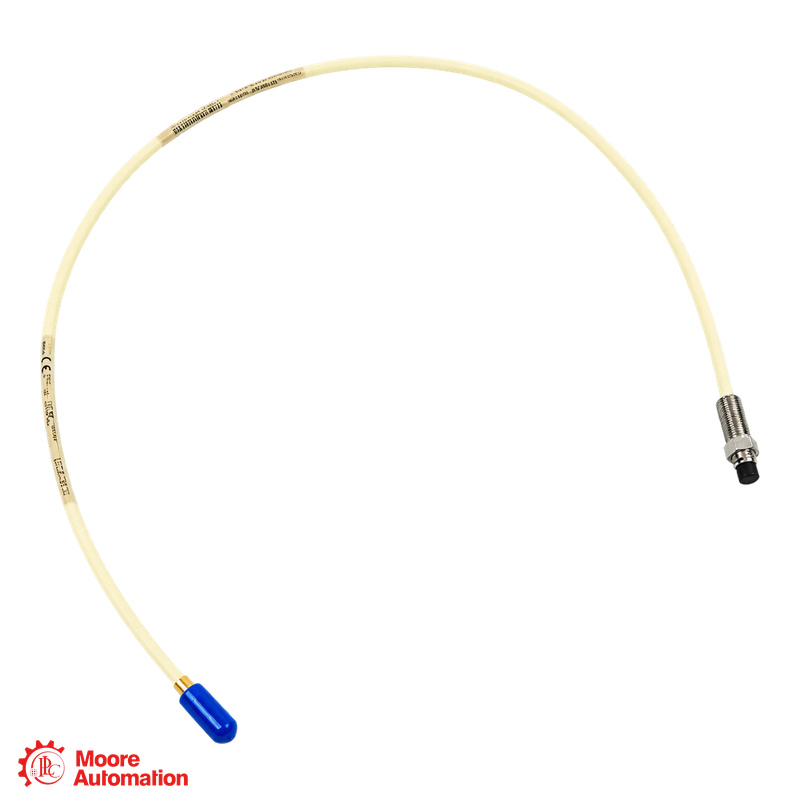

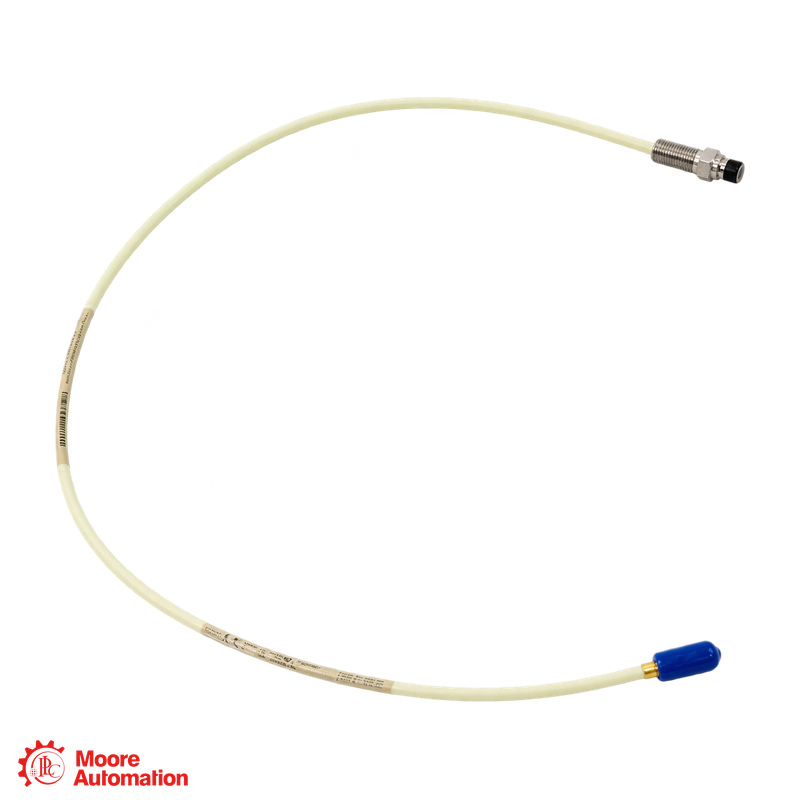

Bently Nevada 21500-00-08-10-02 7200 Series 5 mm Proximity Probe
Bently Nevada 21500-00-08-10-02 7200 Series 5 mm Proximity Probe
Bently Nevada 21500-00-08-10-02 7200 Series 5 mm Proximity Probe

Bently Nevada 21500-00-08-10-02 7200 Series 5 mm Proximity Probe

7200 SERIES · 5 MM PROXIMITY PROBE

21500-00-08-10-02

21500-00-08-10-02 — a Bently Nevada 7200 Series 5 mm standard-mount proximity probe with 1/4-28 thread, 0.0 in unthreaded length, 0.8 in overall case length, 1.0 m lead and miniature male coaxial connector.

PROBE TIP5 mm
CASE THREAD1/4-28 UNF
CASE LENGTH0.8 in
LEAD LENGTH1.0 m
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 7200 SERIES 5 MM PROXIMITY PROBE
7200 SERIES 5 MM STANDARD-MOUNT PROBE

21500-00-08-10-02

5 mm tip · 1/4-28 thread · 1.0 m lead

7200 Series 5 mm Standard-Mount Proximity Probe

7200 SYSTEM PROXIMITY MEASUREMENT
21500-00-08-10-02 — A Bently Nevada 5 mm standard-mount proximity probe for the 7200 Proximity Transducer System, with 1/4-28 thread, unarmored lead and miniature male coaxial connector.
CONFIGURATION NOTE
21500 identifies the 5 mm standard-mount, 1/4-28, unarmored probe; 00 specifies 0.0 in unthreaded length; 08 specifies 0.8 in overall case length; 10 specifies 1.0 m total length; and 02 specifies a miniature male coaxial connector.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

21500
Probe family7200 Series · 5 mm · standard mount · 1/4-28 · no armor
00
Unthreaded length0.0 in
08
Overall case length0.8 in
10
Total length1.0 m (39 in)
02
Connector optionMiniature male coaxial connector
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
7200 SERIES 5 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TIP5 mm
CASE THREAD1/4-28 UNF
CASE LENGTH0.8 in
LEAD LENGTH1.0 m
Exact-model configuration and 7200 system engineering data.
Configuration note 21500-00-08-10-02 is a 7200 Series 5 mm standard-mount, 1/4-28 probe without lead armor, configured for 0.0 in unthreaded length, 0.8 in case length, 1.0 m total length and a miniature male coaxial connector.
General Information −
BrandBently Nevada
Part number21500-00-08-10-02
Product type5 mm standard-mount proximity probe
Product family7200 Proximity Transducer Systems
Probe tip5 mm
ConstructionStandard mount · 1/4-28 · no armor
Ordering Configuration ＋
Unthreaded length0.0 in
Overall case length0.8 in
Total length1.0 m (39 in)
ConnectorMiniature male coaxial
7200 System Performance ＋
Calibrated range80 mil (2.0 mm)
Scale factor200 mV/mil (7.87 V/mm) ±4% · system calibrated
LinearityWithin 0.8 mil (0.02 mm) · system calibrated
Frequency response0 to 10 kHz · −5% at 10 kHz
Electrical and System Match ＋
Power input−17.5 to −26 Vdc · 12 mA maximum
Reference targetAISI 4140 steel
System chainProbe · extension cable · 7200 Proximitor
Source: Bently Nevada 7200 Proximity Transducer Systems 5 mm and 8 mm Technical/Ordering Information (archived manufacturer document). See current Bently Nevada proximity-sensor resources.
FAQ

Questions Buyers Ask Most

What configuration does 21500-00-08-10-02 specify?＋

21500-00-08-10-02 specifies a 7200 Series 5 mm standard-mount, 1/4-28 probe without lead armor, with 0.0 in unthreaded length, 0.8 in case length, 1.0 m total length and a miniature male coaxial connector.

How should 21500-00-08-10-02 be matched to an installed system?＋

Use 21500-00-08-10-02 only after confirming the complete 7200 measurement chain, including the extension cable, 7200 Proximitor, total electrical length, monitor scaling and target material.

What calibrated performance applies to 21500-00-08-10-02?＋

Within a correctly matched and system-calibrated 7200 chain, 21500-00-08-10-02 uses the documented 80 mil (2.0 mm) range, 200 mV/mil (7.87 V/mm) scale factor and 0 to 10 kHz frequency response.

What should be checked when installing 21500-00-08-10-02?＋

For 21500-00-08-10-02, verify the 1/4-28 mounting interface, 0.8 in case clearance, connector mating, cable routing and continuity, cold gap, target condition and channel response before returning the machine to service.

What ordering data should accompany a quotation for 21500-00-08-10-02?＋

For 21500-00-08-10-02, provide the complete order code, quantity, installed extension-cable and Proximitor references, mounting details, target material, required delivery destination and any project documentation.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 21500-00-08-10-02 label, installed extension-cable and 7200 Proximitor references, mounting arrangement, target material and commissioning data for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Manufacturer References for
21500-00-08-10-02

Archived Bently Nevada 7200 technical and ordering information supports the displayed probe family, configuration fields and system performance. No current manufacturer-hosted PDF for the complete 21500-00-08-10-02 reference was located.

Exact datasheet status

No current official manufacturer-hosted 21500-00-08-10-02 datasheet was located. Contact Product Specialist Frida for exact archived documentation, installed-system matching and quotation support.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, installed 7200 system references and your technical or purchasing question.

Technical statements and order-code meanings use archived Bently Nevada 7200 Proximity Transducer Systems manufacturer technical/ordering information.

7200 SYSTEM MEASUREMENT CHAIN

How 21500-00-08-10-02 Fits into the 7200 Proximity Transducer System

Bently Nevada is the manufacturer. 21500-00-08-10-02 is the 5 mm standard-mount probe in a matched 7200 measurement chain consisting of the probe, cable connection, Proximitor electronics and monitor input.

Bently Nevada · BRAND
Bently Nevada 7200 SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM
PROBE

5 mm Standard Mount

The 21500 probe uses a 1/4-28 threaded, unarmored standard-mount construction.

CONNECTION

1.0 m Lead · Coaxial

The 10 and 02 fields specify a 1.0 m lead and miniature male coaxial connector.

ELECTRONICS

7200 Proximitor and Monitor

Matched electronics condition the probe signal for non-contact displacement and vibration measurement.

System relationship: preserve the documented probe, cable and 7200 Proximitor match, target material and calibration when replacing or commissioning the sensor chain.
APPLICATION AREAS

Applications for 21500-00-08-10-02

Shaft Vibration MeasurementSupports non-contact radial shaft vibration measurement in a correctly matched 7200 proximity system.
Shaft Position MeasurementSupports static or dynamic shaft-position and gap measurement against a conductive target.
APPLICATION CENTER 21500-00-08-10-02 7200 Series 5 mm Standard-Mount Proximity Probe
Eccentricity and GapSupports proximity measurement for slow-roll eccentricity and gap-related machinery diagnostics.
Speed or Keyphasor ReferenceThe probe signal can serve as a phase or speed reference when used with matching 7200 electronics.
