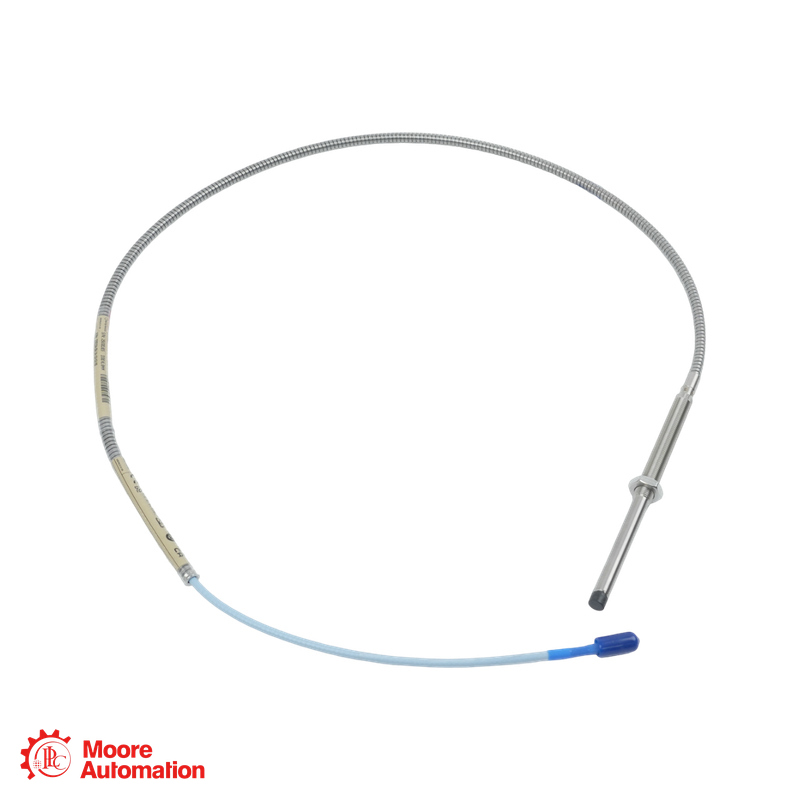

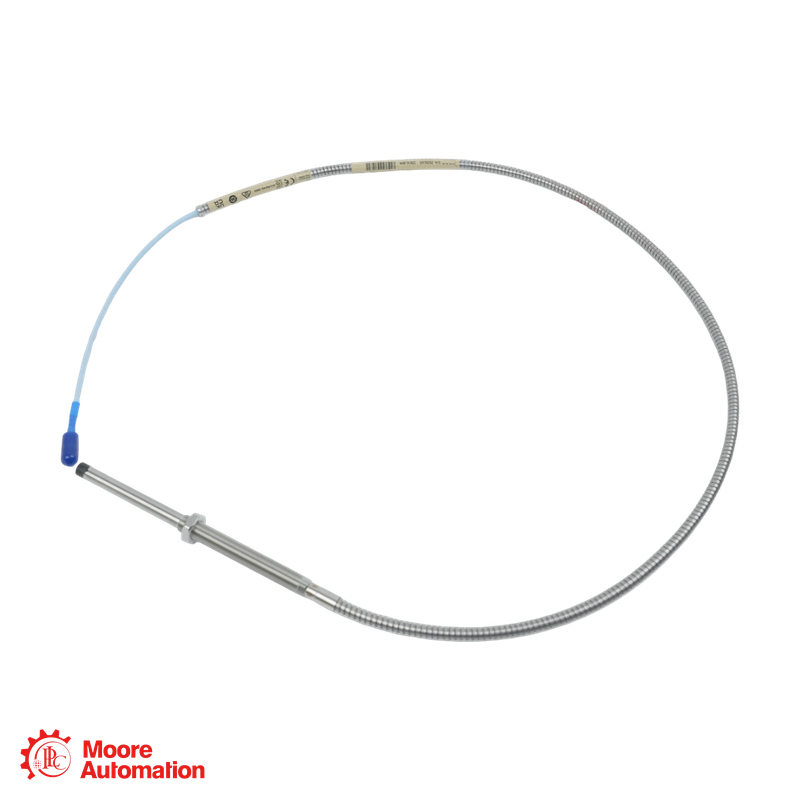

Bently Nevada 330104-06-17-50-01-00 3300 XL 8 mm Armored Proximity Probe

Product Overview

The 330104-06-17-50-01-00 is a Bently Nevada 3300 XL 8 mm proximity probe with an M10 × 1 threaded case and armored cable. This configuration has a 60 mm unthreaded length, 170 mm overall case length, and 5 m standard probe cable. Its miniature coaxial ClickLoc connector includes a connector protector. The probe senses the gap to a conductive shaft surface. As part of a complete 3300 XL 8 mm transducer system, it supports shaft vibration and position measurement on rotating machinery, particularly machines with fluid-film bearings. Bently Nevada specifies the 5 m probe length for use with a 5 m Proximitor Sensor.

Model Number Breakdown

Model: 330104-06-17-50-01-00 — 3300 XL 8 mm proximity probe, M10 × 1 thread, with armor
Unthreaded Length Option: 06 — 60 mm
Overall Case Length Option: 17 — 170 mm
Total Length Option: 50 — 5.0 m
Connector and Cable-Type Option: 01 — Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: 00 — Approval not required

Features

• 8 mm probe tip for non-contact shaft measurement
• M10 × 1 threaded case with armored cable
• 60 mm unthreaded length and 170 mm overall case length
• 5 m standard, FEP-insulated triaxial probe cable
• Miniature coaxial ClickLoc connector with connector protector

Product Identification Configuration

Environmental Capabilities

Standard probe operating and storage temperature: −52 °C to +177 °C (−62 °F to +350 °F). The flexible stainless-steel cable armor has an FEP outer jacket. For pressure-seal applications, the manufacturer notes a caution when probe temperature falls below −34 °C.

Industries Served

• Power generation: Shaft vibration and position monitoring on turbines and other rotating equipment.
• Oil and gas: Machinery monitoring for compressors, pumps, and turbine-driven systems.
• Petrochemicals: Rotating-equipment measurements in continuous-process plants.
• Metals and heavy industry: Shaft-condition monitoring on large production machinery.
