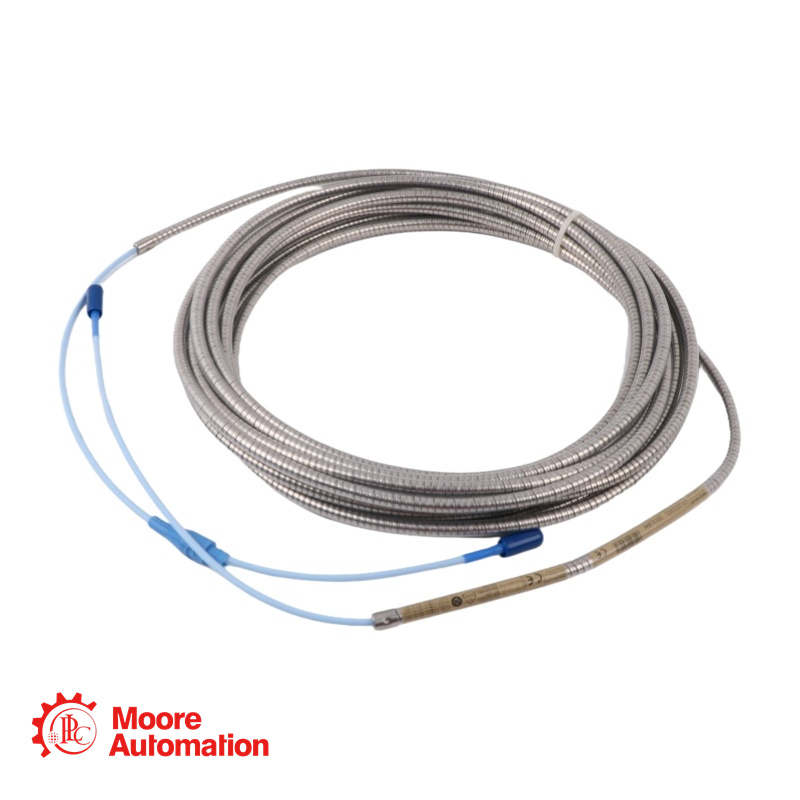

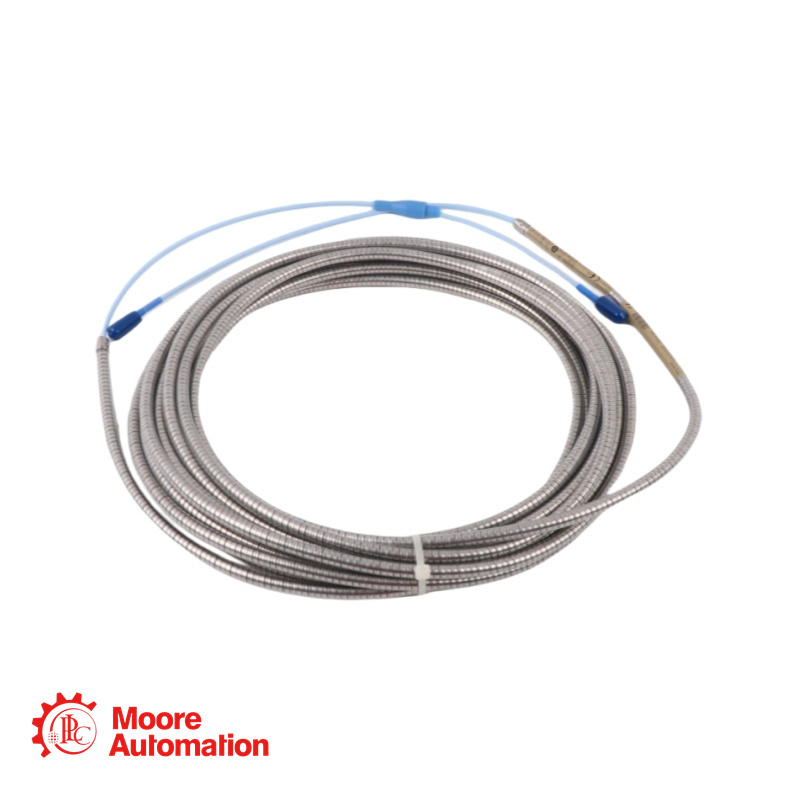

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Merk :
Bently NevadaOnderdeel nummer :
330130-085-12-00Gewicht :
0.04 kgDimensie :
110x1.5x1.2cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Standard Extension Cable
-How to get price? Cotact our Manager Frida-
Phone/Whatsapp/Wechat:+8615359408275
Email:sales5@mooreplc.com
-330130-085-12-00 Detailed Description-
-330130-085-12-00 Specifications-
330130-AAA-BB-CC:
A: Cable Length Option:085 - 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option: 12 - FluidLoc cable with connector protector
C: Agency Approval Option: 00 - Not required
Standard cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Armor(optional on both): Flexible AISI 302 or 304 SST with FEP outer jacket.
Connector Material: Gold-plated brass or goldplated beryllium copper.
-330130-085-12-00 Installation Notes-
Make sure that the extension cable length and the probe length, when added together, equal the Proximitor Sensor total length.
-330130-085-12-00 Accessories-
330102: 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
330103:3300 XL 8 mm Probe, M10 x 1 thread, without armor
330104:3300 XL 8 mm Probe, M10 x 1 thread, with armor
330105-02-12-CC-DD-EE:3/8-24 UNF threads
330106-05-30-CC-DD-EE:M10 x 1 threads
138493-01:Replacement DIN-mount mounting pad
330153-01: 3300 XL Connector Kit. Used on 3300 XL probes and extension cables. Contains one set of male and female ClickLoc connectors, sleeves and one strip of silicone tape.
-Order Notes-
Products: 100% full New! & Original!
Package: Original packing with cartons.
Payment Term:T/T
Delivery Time: Shipped in 3 days after payment.
Warranty:12 month
Shipment:DHL,UPS,TNT,CHIRLINE,FEDEX
MOQ:1
Quotation Validity Period:Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
-Best Service-
Pre-Shipment Inspection
Before shipment, we can provide photos or videos of the goods for confirmation. Normally, we send pictures of the items with their original packaging. If you need to check the product itself, please contact our manager. With your approval, we can open the package and provide detailed photos or videos of the item for inspection.
Pick-Up from Our Company
You are also welcome to collect the goods directly from our company. The package can be opened on site for inspection before you take the goods. For items in stock, we can also arrange for our warehouse to take photos in advance so that you can confirm the goods before collection.
