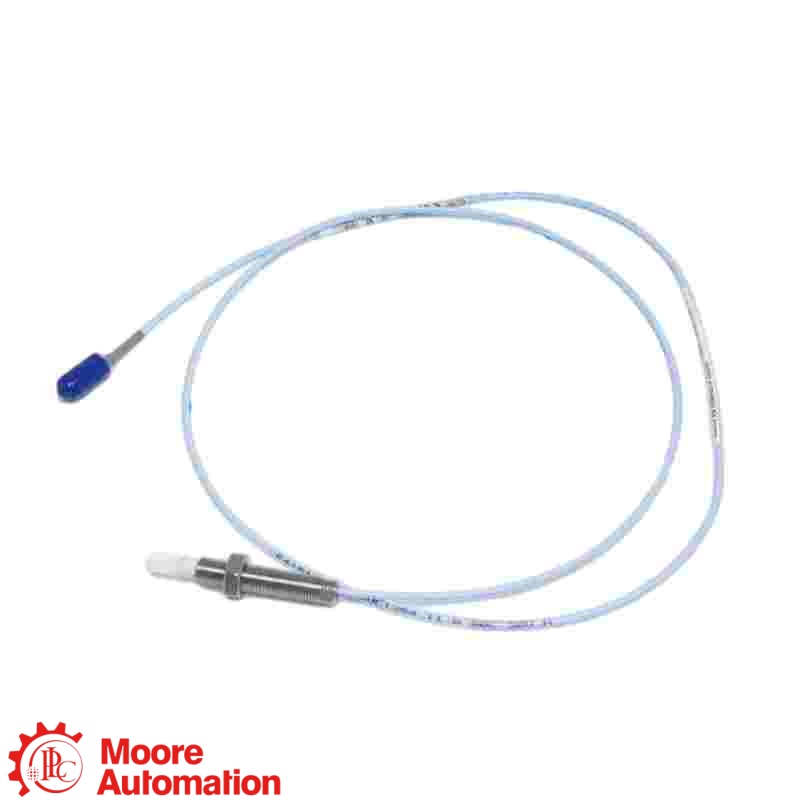

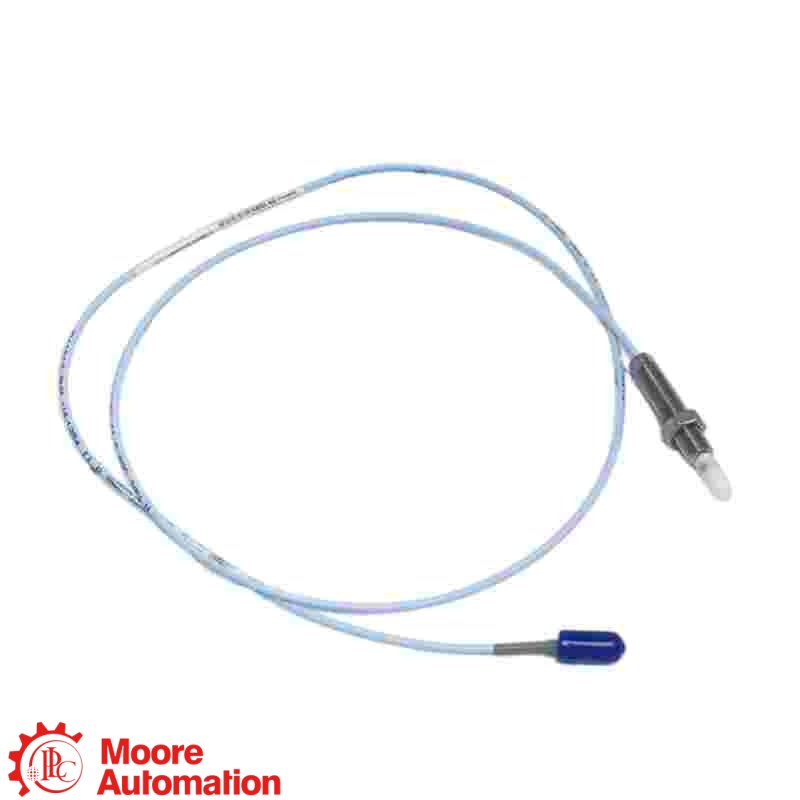

Bently Nevada 330908-00-30-05-02-05 3300 XL NSv Proximity Probe
Bently Nevada 330908-00-30-05-02-05 3300 XL NSv Proximity Probe
Bently Nevada 330908-00-30-05-02-05 3300 XL NSv Proximity Probe

Bently Nevada 330908-00-30-05-02-05 3300 XL NSv Proximity Probe

3300 XL NSv · PROXIMITY PROBE

330908-00-30-05-02-05

330908-00-30-05-02-05 — A 3300 NSv proximity probe with a 3/8-24 UNF threaded case, 0.0 in unthreaded length, 3.0 in overall case length, 0.5 m total length, a miniature coaxial ClickLoc connector with standard cable, and multiple approvals.

PROBE3300 XL NSv
CASE LENGTH3.0 in
THREAD3/8-24 UNF
APPROVALMultiple approvals
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL PROXIMITY
3300 XL NSv PROXIMITY PROBE

330908-00-30-05-02-05

3/8-24 UNF · 3.0 in case · 0.5 m cable

3300 XL NSv Proximity Probe

PROBE CONFIGURATION
330908-00-30-05-02-05 — A 3300 NSv proximity probe with a 3/8-24 UNF threaded case, 0.0 in unthreaded length, 3.0 in overall case length, 0.5 m total length, a miniature coaxial ClickLoc connector with standard cable, and multiple approvals.
CONFIGURATION NOTE
330908 = 3300 NSv proximity probe with 3/8-24 UNF thread and no armor; 00 = 0.0 in unthreaded length; 30 = 3.0 in overall case length; 05 = 0.5 m total length; 02 = miniature coaxial ClickLoc connector with standard cable; 05 = multiple approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330908
Base model3300 NSv probe · 3/8-24 UNF · no armor
00
Unthreaded length0.0 in
30
Overall case length3.0 in
05
Total length0.5 m · 20 in
02
Connector / cableMiniature ClickLoc · standard cable
05
Approval suffixMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

VIEW OFFICIAL FAMILY DATASHEET
3300 XL NSv PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

CASE TYPE3/8-24 UNF
CASE LENGTH3.0 in
TOTAL LENGTH0.5 m
CONNECTORClickLoc · standard cable
Configuration from manufacturer ordering data.
Configuration check Confirm the complete part number, unthreaded length, case length, total probe length, connector and cable type, multiple-approval requirements, system length and target material before ordering.
General Information −
BrandBently Nevada
Part number330908-00-30-05-02-05
Product type3300 XL NSv proximity probe
Product family3300 XL NSv
Measurement principleEddy-current proximity probe
OutputUsed with a compatible 330980 Proximitor Sensor
Detailed Measurement Data ＋
Unthreaded length0.0 in
Overall case length3.0 in
Total probe length0.5 meter (20 inches)
Cable and Installation ＋
Case type3/8-24 UNF threaded case
Case thread3/8-24 UNF
Probe constructionWithout armor
Probe cable75 Ω FEP-insulated standard coaxial cable
Probe tip materialPolyphenylene sulfide (PPS)
Environment and System Limits ＋
Probe operating and storage temperature: -52°C to +177°C (-62°F to +351°F). The 3300 XL NSv system has a 1.5 mm (60 mil) linear range; confirm the matched 330930 extension cable, 330980 Proximitor Sensor, system length and target material for the application.
Source: Bently Nevada Datasheet 147385 Rev. R. Bently Nevada Datasheet 147385 Rev. R identifies 330908 as a 3300 NSv probe with 3/8-24 UNF thread and no armor, and defines options 00, 30, 05, 02 and final 05 for multiple approvals.
FAQ

Questions Buyers Ask Most

What is 330908-00-30-05-02-05 used for?＋

330908-00-30-05-02-05 is a 3300 NSv proximity probe for tight-installation and small-target applications, including radial vibration or position, axial position, tachometer, zero-speed and phase-reference measurements when used in a correctly matched 3300 XL NSv system.

What does the 330908-00-30-05-02-05 code specify?＋

For 330908-00-30-05-02-05, 330908 identifies the 3300 NSv probe with 3/8-24 UNF thread and no armor; 00 is 0.0 in unthreaded length; 30 is 3.0 in overall case length; 05 is 0.5 m total length; 02 is a miniature coaxial ClickLoc connector with standard cable; and the final 05 option specifies multiple approvals.

Can 330908-00-30-05-02-05 be substituted with a similar part number?＋

Do not substitute 330908-00-30-05-02-05 by appearance or family name alone. Compare the complete order code, 3/8-24 UNF case, unthreaded and overall case lengths, total length, connector/cable type, multiple-approval requirement, target material and compatible 330980 Proximitor Sensor.

Is 330908-00-30-05-02-05 a complete measurement system?＋

No. 330908-00-30-05-02-05 is the probe component. A complete 3300 XL NSv system also requires the correctly matched 330930 extension cable and 330980 Proximitor Sensor, plus a compatible monitoring input.

What should I provide for a 330908-00-30-05-02-05 quotation?＋

Send the complete 330908-00-30-05-02-05 nameplate, quantity, required 5 m or 7 m system length, matching 330930 extension cable and 330980 Proximitor Sensor numbers, target material, measurement application and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330908-00-30-05-02-05

Official manufacturer documentation and system context for Bently Nevada 330908-00-30-05-02-05.

Official manufacturer datasheet

Bently Nevada Datasheet 147385 Rev. R identifies 330908 as a 3300 NSv probe with 3/8-24 UNF thread and no armor, and defines options 00, 30, 05, 02 and final 05 for multiple approvals.

VIEW OFFICIAL FAMILY DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Bently Nevada Datasheet 147385 Rev. R supports the 330908 base probe and options 00, 30, 05, 02 and final 05, including the multiple-approvals selection.

PROXIMITY SYSTEM RELATIONSHIP

How 330908-00-30-05-02-05 Fits into the 3300 XL Measurement Chain

Bently Nevada is the manufacturer. 330908-00-30-05-02-05 is the 3300 XL NSv probe component. It must be matched to a compatible 330930 extension cable and 330980 Proximitor Sensor for the required 5 m or 7 m total system length.

Bently Nevada · BRAND
3300 XL NSv SystemPRODUCT FAMILY · MEASUREMENT CHAIN
PROXIMITY PROBE

3300 XL NSv Probe

The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.

EXTENSION CABLE

330930 Extension Cable

The matched 330930 extension cable combines with the 0.5 m probe lead to equal the 330980 Proximitor Sensor system length and preserves the specified 3300 XL NSv electrical performance.

SIGNAL CONDITIONING

330980 Proximitor Sensor

The compatible Proximitor Sensor conditions the probe signal into a voltage proportional to the gap between the probe tip and the conductive target.

System relationship: the probe, extension cable and Proximitor Sensor must form the required total system length and must match the target material and monitoring application.
APPLICATION AREAS

Application areas for 330908-00-30-05-02-05

Radial Vibration and PositionMeasures radial shaft vibration or radial position where a small shaft or restricted side view is present.
Axial (Thrust) PositionMeasures axial position on suitably sized flat targets with the correctly matched NSv system.
APPLICATION CENTER 330908-00-30-05-02-05 3300 XL NSv Proximity Probe
Tachometer and Zero SpeedSupports tachometer and zero-speed measurements with the correct target and monitoring input.
Phase Reference (Keyphasor)Provides phase-reference signals when installed with the correctly matched NSv components and target.
