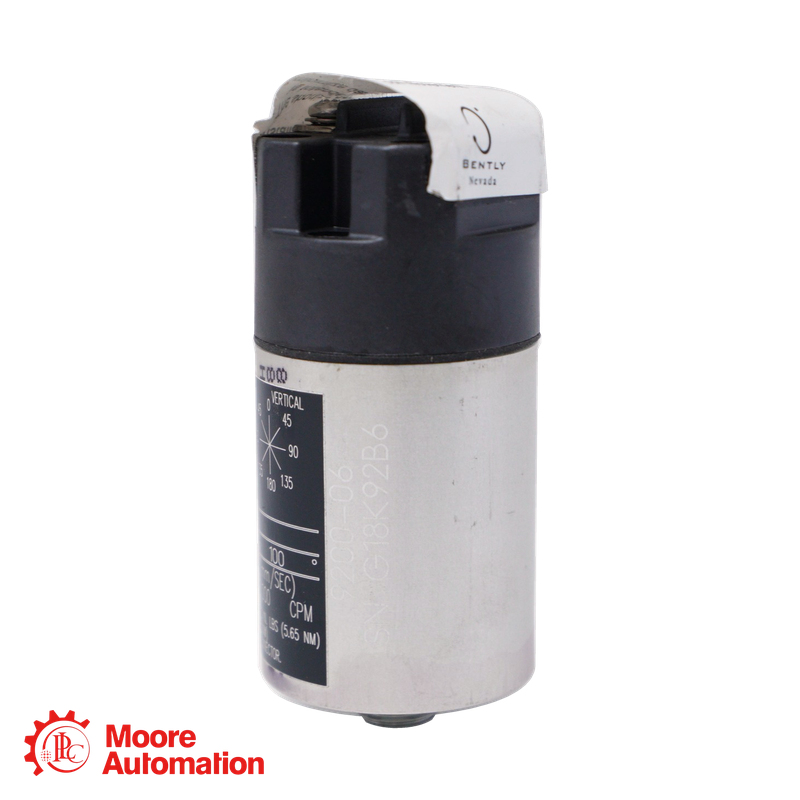

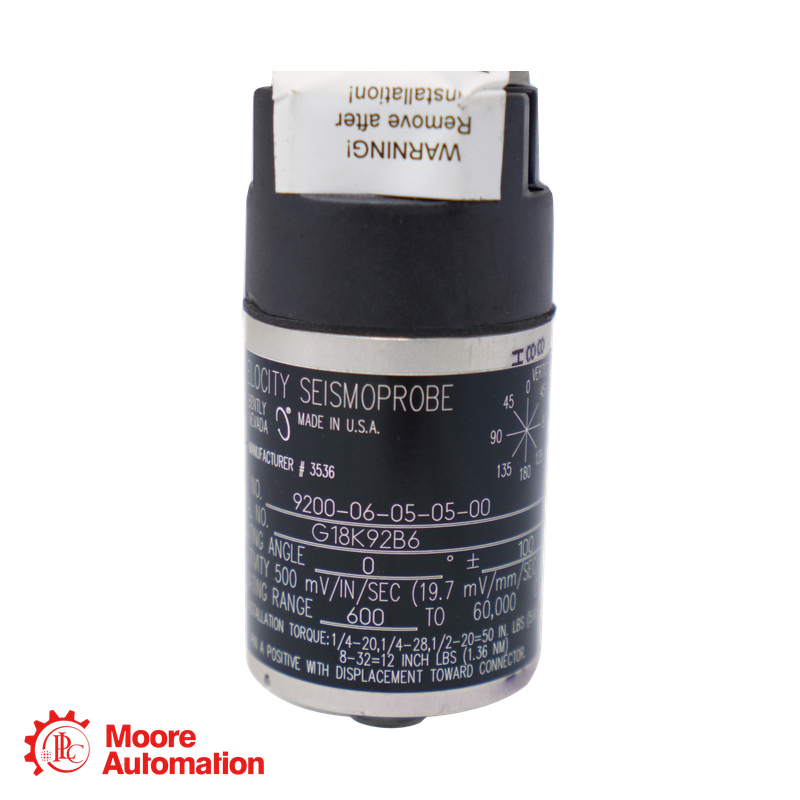

The Bently Nevada 9200-06-05 identifies a two-wire moving-coil Seismoprobe Velocity Transducer configuration for absolute bearing-housing, casing, and structural vibration measurement
Merk :
Bently NevadaOnderdeel nummer :
9200-06-05Gewicht :
0.3 kgDimensie :
5.1 × 6.1 × 7.9 cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Seismoprobe Velocity Transducer
|
Product Enquiry |
Contact Details |
|
Model Number |
9200-06-05 |
|
Sales Contact |
Frida |
|
Fast Contact |
|
|
Email Request |
|
|
Please Provide |
Required quantity and destination country |
Product Overview
The Bently Nevada 9200-06-05 identifies a two-wire moving-coil Seismoprobe Velocity Transducer configuration for absolute bearing-housing, casing, and structural vibration measurement. The supplied code specifies a 10 Hz minimum operating frequency and a terminal-block top-mounted connection without an integral cable. Under the current official ordering format, mounting-base and approval options must be defined separately.
Model Number Breakdown
Official ordering format: 9200-AA-BB-CC-DD
9200: Bently Nevada two-wire Seismoprobe Velocity Transducer.
AA – 06: 0° ±100° mounting orientation with a 10 Hz (600 cpm) minimum operating frequency.
BB – 05: Terminal-block top-mounted connector; no integral cable.
Technical Information
Parameter
Value
Manufacturer
Bently Nevada
Product Type
Two-wire moving-coil Seismoprobe Velocity Transducer
Mounting Orientation
0° ±100°
Minimum Operating Frequency
10 Hz (600 cpm)
Connector / Cable Option
Terminal-block top mount; no integral cable
Sensitivity
20 mV/mm/s (500 mV/in/s), ±5%
Frequency Response
10 to 1,000 Hz; +0, -3 dB typical
Dynamic Operating Range
2.54 mm (0.100 in) peak-to-peak maximum displacement
Velocity Range
25 mm/s (1 in/s) at 100 Hz with a 10 kΩ load
Calibration Load
10 kΩ across terminals A and B
Coil Resistance
1.25 kΩ ±5%
Operating and Storage Temperature
-29°C to +121°C (-20°F to +250°F)
Relative Humidity
Up to 95%, non-condensing
Industries Served
• Power generation facilities
• Oil and gas processing plants
• Chemical and petrochemical operations
• Pulp and paper production lines
• Water and wastewater facilities
• General industrial manufacturing
Application Areas
-Continuous casing-vibration monitoring on rotating machinery
-Periodic vibration checks with diagnostic instruments
-Bearing-housing vibration measurement
-Machine-structure vibration measurement
-Portable vibration measurement applications
Key Highlights
Key Highlight
Details
Absolute Vibration Measurement
Measures bearing-housing, casing, and structural vibration relative to free space.
Direct Velocity Output
Produces an output voltage directly proportional to vibration velocity.
10 Hz Configuration
The 06 option provides a 10 Hz minimum operating frequency.
Terminal-Block Connection
The 05 option uses a terminal-block top-mounted connection.
No Integral Cable
This configuration requires an appropriate separate cable for the intended system connection.
No External Power Required
The moving-coil design supports portable measurement applications.
Frequently Asked Questions
1. What does the Bently Nevada 9200-06-05 measure?
It measures absolute bearing-housing, casing, and structural vibration and produces an output proportional to vibration velocity.
2. Can the 9200 be used for continuous monitoring?
Yes. The 9200 family is suitable for continuous monitoring and periodic measurements with diagnostic instruments.
3. Is 9200-06-05 a complete current ordering number?
No. The current 9200 ordering format also requires mounting-base and agency-approval option codes.
