 /CC-PSV201 51454123-175 Honeywell Servo Valve Positioner Module
CC-PSV201 51454123-175
CC-PSV201 51454123-175
CC-PSV201 51454123-175

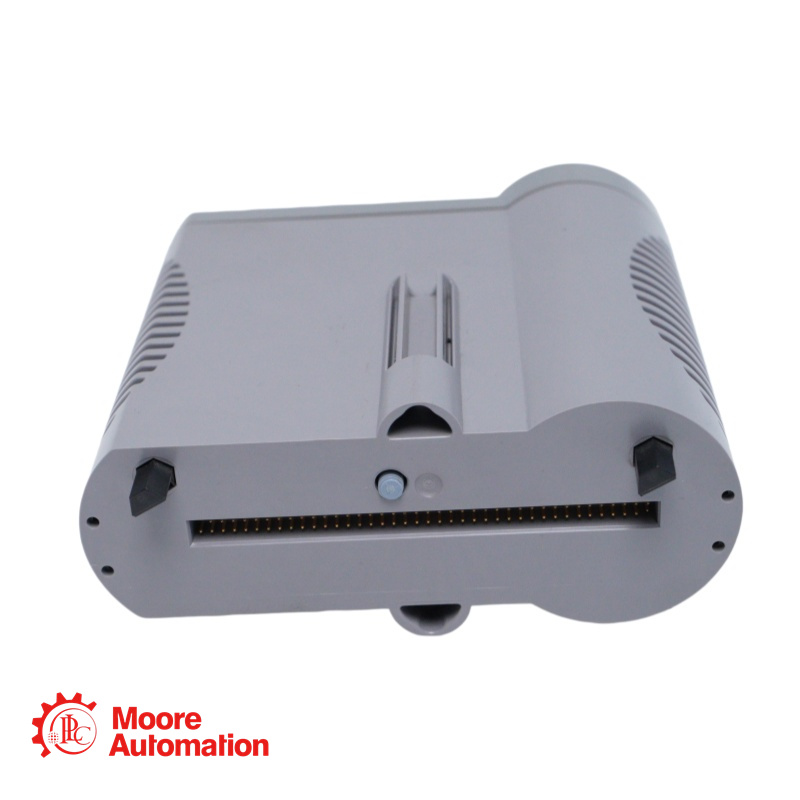

CC-PSV201 51454123-175 Honeywell Servo Valve Positioner Module

The Honeywell CC-PSV201 is a high-performance Series C Turbomachinery I/O Module designed for precise control of servo valves in critical turbomachinery applications such as compressor antisurge and steam turbine governor control.

  • Merk :

    Honeywell

  • Onderdeel nummer :

    CC-PSV201 51454123-175

  • Gewicht :

    0.45 kg

  • Dimensie :

    7.3x15.2x16.3cm

  • Land van herkomst :

    USA

  • HS-code :

    8537101190

  • Beschrijving :

    Servo Valve Positioner Module
Informeer nu

Click Here To Get Price: Frida Zhang (Sales Champion)

sales5@mooreplc.com

+86 15359408275


PRODUCT
INTRODUCTION

Basic Information

Product ID: CC-PSV201 51454123-175
IOTA (Termination Assembly): CC-TSV211 (Redundant, 18-inch)
Product Type: Servo Valve Positioner Module (IOM)
Compatible Platform: Experion Series C Turbomachinery Platform (Release R511+)
Configuration Support: Supports redundant configuration (requires second IOM on IOTA)
Key Function: Onboard PID loop for 2 servo valves with position feedback.

Product Specification

Servo / Current Output Interface
Number of Channels: 2
Standard Dither: 0-10% of Full Scale, 25-60 Hz (compensates for stiction)
Output Temperature Drift: 300 ppm per °C
Resolution: 16-bit DAC
Analog Inputs (Optional)
Input Channels: 2 (shared with LVDT)
Input Range: 0-5V, 1-5V, 0.4-2V, or 4-20 mA (via 250 Ω)
Hardware Accuracy: ±0.075% of full scale (at 23.5°C); ±0.15% (0 to 60°C)
Maximum Input Voltage: ±30 V (no damage)
Output Channels: 2 (shared with Servo)
Output Type: 4-20 mA
Directly Settable Range: 0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load: 760 ohms
Calibrated Accuracy: ±0.35% of full scale (at 25°C)


OUR
PRODUCT
INTRODUCTION

Product Description

The Honeywell CC-PSV201 is a high-performance Series C Turbomachinery I/O Module designed for precise control of servo valves in critical turbomachinery applications such as compressor antisurge and steam turbine governor control. This module features an onboard PID positioning loop that directly accepts position feedback from LVDT, RVDT, or 4-20 mA transmitters and receives a remote setpoint from a C300 controller. The entire loop executes with a latency of under 10 ms, ensuring rapid and stable valve positioning.

Recommended Related Products

CC-TSV211 - Servo Valve Positioner IOTA, Redundant
The dedicated 18-inch redundant Input/Output Termination Assembly (carrier) for the CC-PSV201, supporting dual module redundancy without external cabling.

C300 Controller (20 ms CEE)
The Experion C300 Controller executing the control environment and providing a remote setpoint to the SVPM over the deterministic control network (FTE).

Bulk Termination Cables
Mass termination cables and connectors supporting up to 12 AWG (2.5 mm²) for simplified marshalling to the Series C field connectors.
