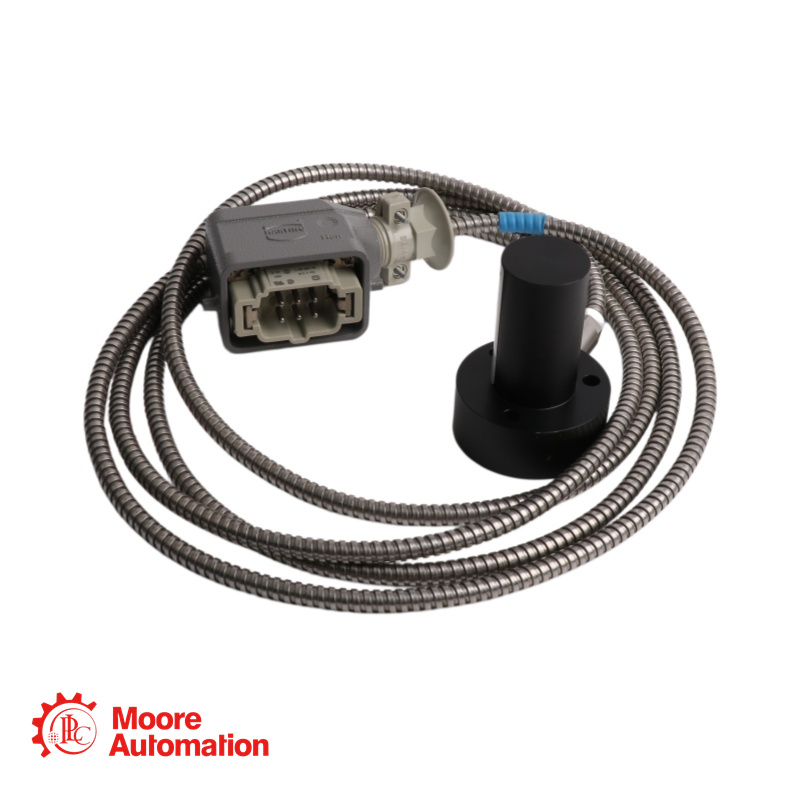

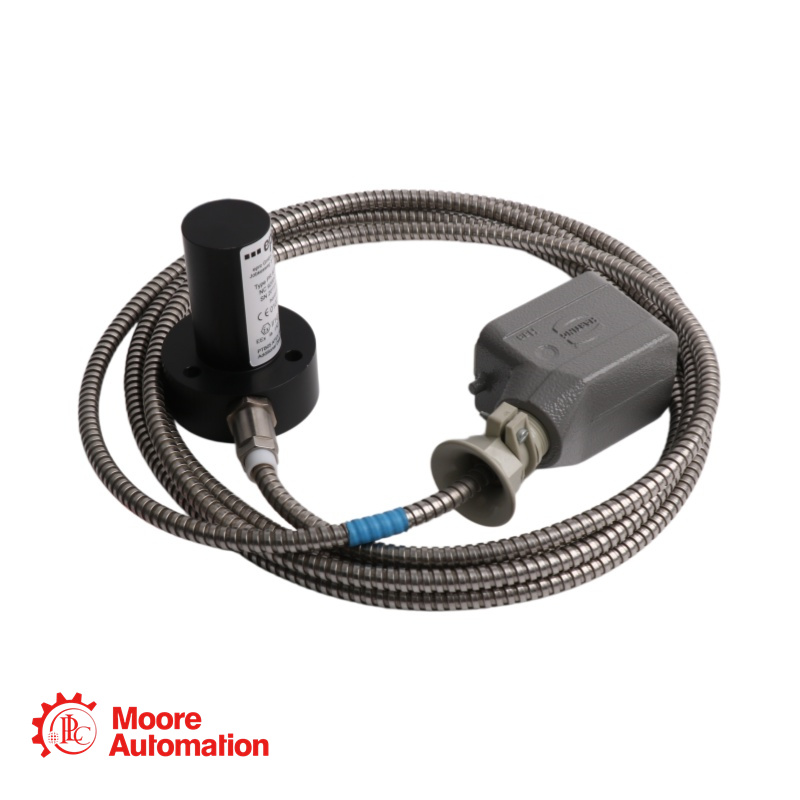

Emerson PR9268/601-000 Electrodynamic Sensor

Contact and Submit your Inquiry

Sales Manager - Frida

Phone/Whatsapp:
+86 15359408275

Email:
sales5@mooreplc.com

Address:
Xiamen,Fujian,China

General Information

Product ID:
PR9268/601-000
Long Description:
Mechanical spring-mass sensor comes in a variety of cable lengths and can be supplied with or without a Harting connector.

Additional Information

Medium Description:
Electrodynamic Sensor
Product Type:
PR9268 Electrodynamic Sensors
HS Code:8537101190

Technical

Sensitivity: (± 5%) @ 80 Hz/20°C/100 kOhm28.5 mV/mm/s (723.9 mV/in/s)
Measurement Range:± 1,500µm (59,055 µin)
Frequency Range: (± 3dB)4 to 1,000 Hz (240 to 60,000 cpm)
Operating Temperature: -20 to 100°C (-4 to 180°F)
Humidity: 0 to 100% Non-Condensing

Ideal for machinery protection systems
Available with additional cable protection

FAQ

※Is the PR9268/601-000 a velocity sensor or an eddy current sensor?
It is an electrodynamic velocity sensor for absolute casing vibration measurement. Multiple third-party websites incorrectly classify it as an eddy current sensor.
※What is the difference between PR9268/601-000 and PR9268/60x-000?
The /601-000 specifies 5m armored cable with Harting plug termination. Other suffixes indicate different cable lengths or termination types.
※Can I use this sensor with an eddy current preamplifier like PR9268/601-000?
No. This is a velocity sensor with direct voltage output proportional to vibration velocity. It does not require a preamplifier.
