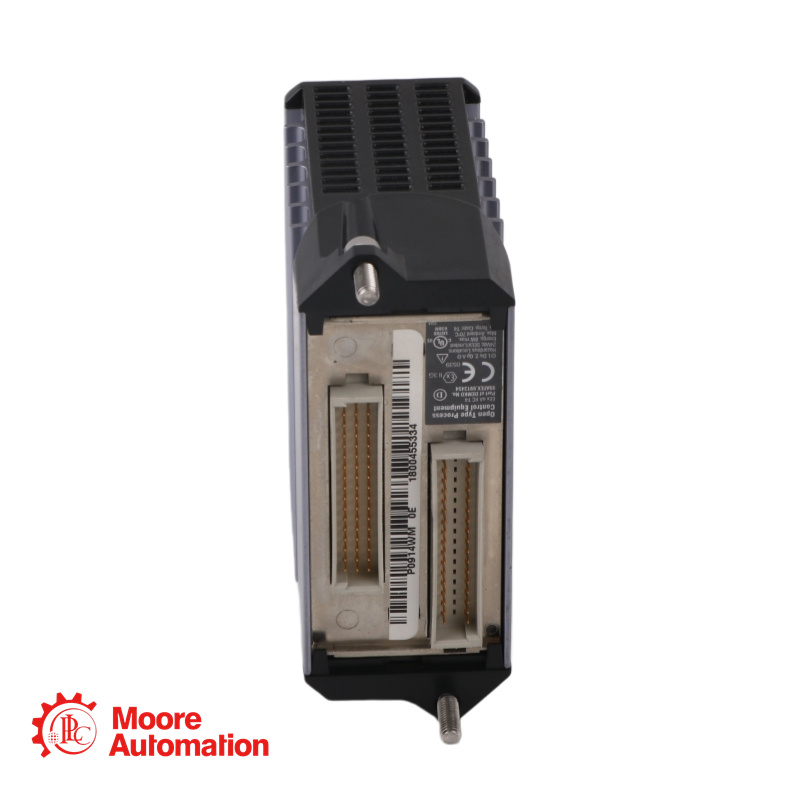

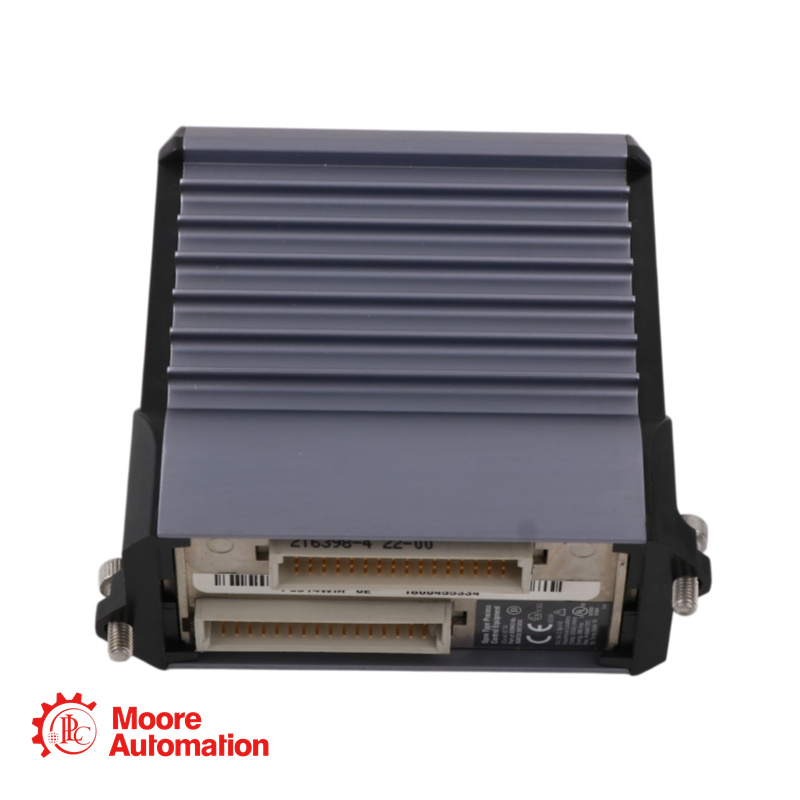

FBM241C RH914WM Foxboro Discrete I/O Module

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
FBM241C RH914WM

Description:

Redundant, Discrete I/O Module
Part of the Foxboro™ DCS (Distributed Control System)
8 discrete input channels and 8 discrete output channels
Supports single or redundant module configuration
Field I/O wired to one common termination assembly

The FBM241C is a channel-isolated discrete I/O module with eight discrete input channels and eight discrete output channels. Inputs support 15 to 60 VDC contact sensing (unprotected/no fuse or protected/fused options). Outputs support 15 to 60 VDC at 2 A or 240 VAC at 5 A switching with external power source. Each discrete input and output is galvanically isolated from other channels and ground. The module executes Discrete I/O or Ladder Logic programs with configurable options including Input Filter Time, Fail Safe Configuration, Fail-Safe Fall-Back, and Sustained or Momentary Outputs.

Technical Data:

Input channels:8
Output channels:8
Input type (FBM241c):15 to 60 VDC contact (unprotected – no fuse, or protected – fused)
Output type (FBM241c):15 to 60 VDC at 2 A, or 240 VAC at 5 A switch (external power source)
Filter/Debounce time:Configurable (No Filtering, 4, 8, 16, or 32 ms)
Output off-state leakage current:0.1 mA (maximum)
Inductive loads:May require protective diode (DC) or MOV (AC) across load
Communication:Via redundant 2 Mbps HDLC module Fieldbus
Power input voltage range (redundant):24 VDC (+5%, –10%)
Power consumption (maximum, single module):5 W
Heat dissipation (maximum, single module):6 W
