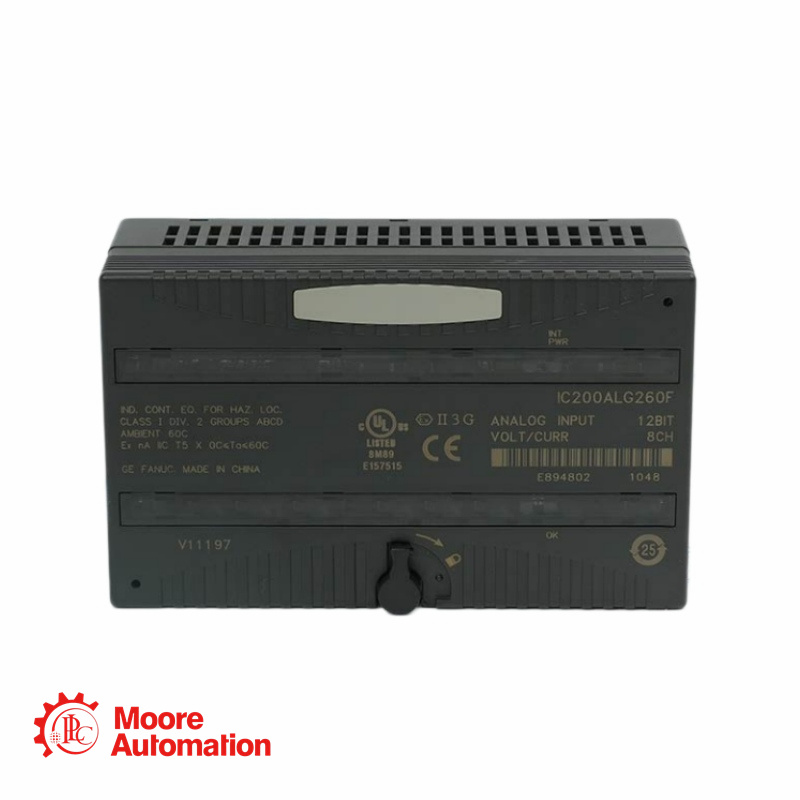

GE Fanuc VersaMax IC200ALG260H 8-Channel 12-Bit Analog Input Module

Product Parameters

Item

Specification

Brand

GE

Product Series

VersaMax

Product Model

IC200ALG260H

Product Type

12-Bit Voltage/Current Analog Input Module

Channels

8 single-ended analog input channels, one group

Input Range

±10VDC default; 0–10VDC configurable; 4–20mA current mode

Resolution

Voltage: 2.5mV = 8 counts; Current: 4μA = 8 counts

Accuracy

±0.3% typical FS at 25°C; ±0.5% max FS at 25°C; ±1% max FS at 0–60°C

Backplane Current

130mA maximum at 5V output

Isolation

250VAC continuous; 1500VAC for 1 minute

Response / Update Rate

Filter response: 5.0ms; update rate: 0.4ms per module

Frequently asked questions

Q1: How is IC200ALG260H different from earlier IC200ALG260 revisions?
A: The H revision is listed as a label-change update, with no change to features, performance or compatibility.

Q2: Can IC200ALG260H accept both voltage and current signals?
A: Yes, it supports ±10VDC, 0–10VDC and 4–20mA input modes, selected by carrier jumpers.

Q3: Why is shielding important for this analog module?
A: Proper shield grounding helps reduce noise and improves signal stability in analog measurement applications.

Q4: What should be checked before replacing this module?
A: Confirm the IC200ALG260H suffix, carrier type, jumper configuration, signal type and PLC hardware configuration.
