Merk :
GEOnderdeel nummer :
IC695ALG508Gewicht :
0.22kgDimensie :
3.2x13.2x13.7cmLand van herkomst :
USAHS-code :
8537101190Beschrijving :
Isolated RTD Input module
Please get your quotation by contacting following supplier:
IC695ALG508 Technical Specifications
|
Manufacturer |
GE |
|
Series |
IC695 |
|
Part Number |
IC695ALG508 |
|
Condition |
New and original |
|
Warranrty |
12 months |
|
Number of Inputs |
8 Differential Inputs |
|
Power Dissapation |
2.5W max |
|
Operating Temperature |
0 to 60 degrees Celsius |
|
Configurable notch filters |
2.3 Hz to 28 Hz |
About the IC695ALG508

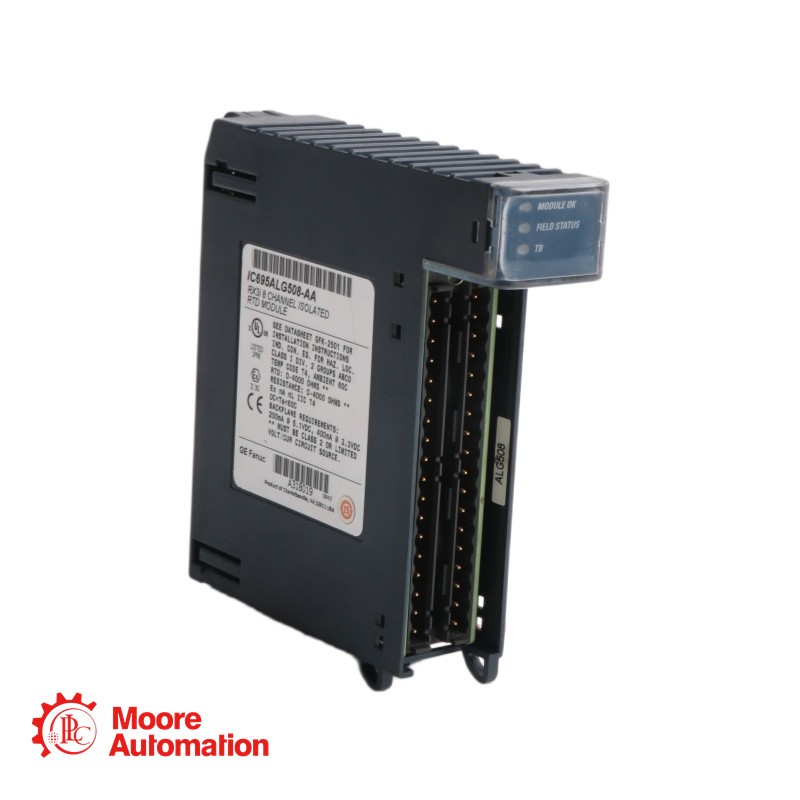

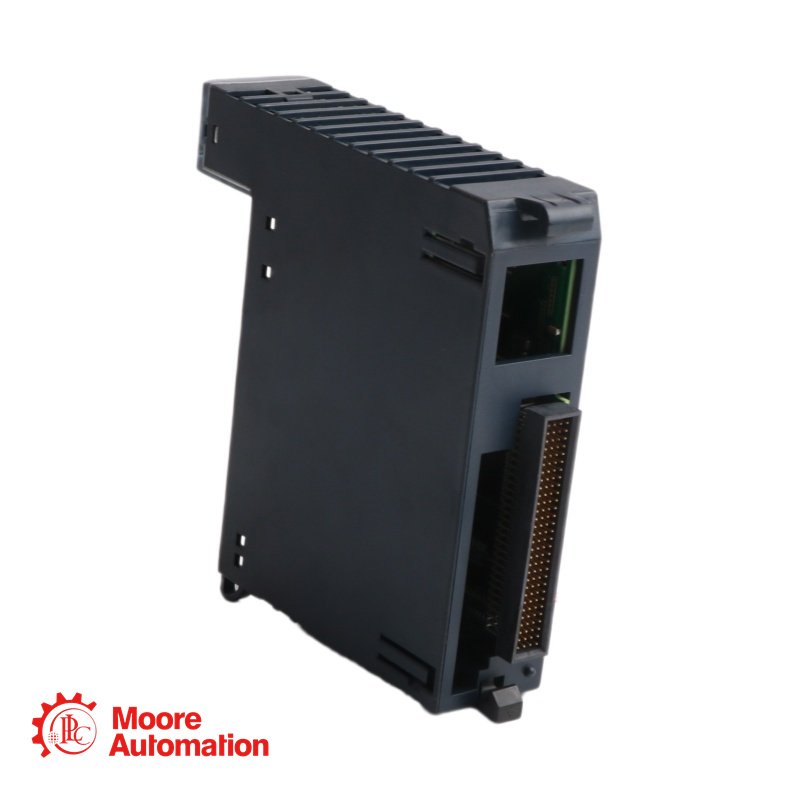

The IC695ALG508 is a PACSystem RX3i Programmable Automation Controller (PAC) Resistance Temperature Detector (RTD) Input module formerly manufactured by GE Intelligent Platforms (GE IP) now under Emerson Automation. This module features Eight (8) isolated, differential RTD input channels. Each channel of this module supports Platinum 385, Platinum 391.6, Nickel 672, Nickel 618, Nickel-Iron 518, Copper 426. It is also compatible for direct resistance inputs such as 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms.
FAQ about IC695ALG508
※What are the supported RTD input types of this module?
Supported RTD input types are 50, 100, 200, 500, and 1000 ohm Platinum 385 (IEC751 1983, Amend 2 1995; JISC 1604 1997); 50, 100, 200, 500, and 1000 ohm Platinum 391.6 (JISC 1604: 1981); 100 ohm, 200 ohm, 500 ohm, and 1000 ohm Nickel 618 (DIN 43760 Sept. 1987); 120 ohm Nickel 672 (MINCO Application Aid #18, 5/90 Type Ni); 10, 50, and 100 ohm Copper 426 (SAMA RC21-4-1966) and 604 ohm Nickel-Iron 518.
※Does this module support direct input of resistance values?
Yes. Acceptable resistance values are 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms.
※Does this module supports Removal and Insertion Under Power (RIUP)?
Yes. This module supports RIUP.
Who we are?
We specialize in supplying discontinued and hard-to-find automation parts worldwide.
No matter where you are or how rare the component is, we help you source exactly what you need. With over 30,000 high-quality spare parts in stock, we offer immediate shipment to reduce downtime, protect production schedules, and save both time and cost.
Buying Notes
Payment Terms
100% TT in advance
Incoterms
EXW, DAP
Availability of Datasheet / User Manual
Yes
Shipping
(1)If you have a DHL/FEDEX/UPS/CHIRLINE/Aramex account, you can come to our company to pick up the goods directly.
(2)Let us ship goods for you
(3)We can ship to your forwarder in China
Package
Original packing with factory seal
