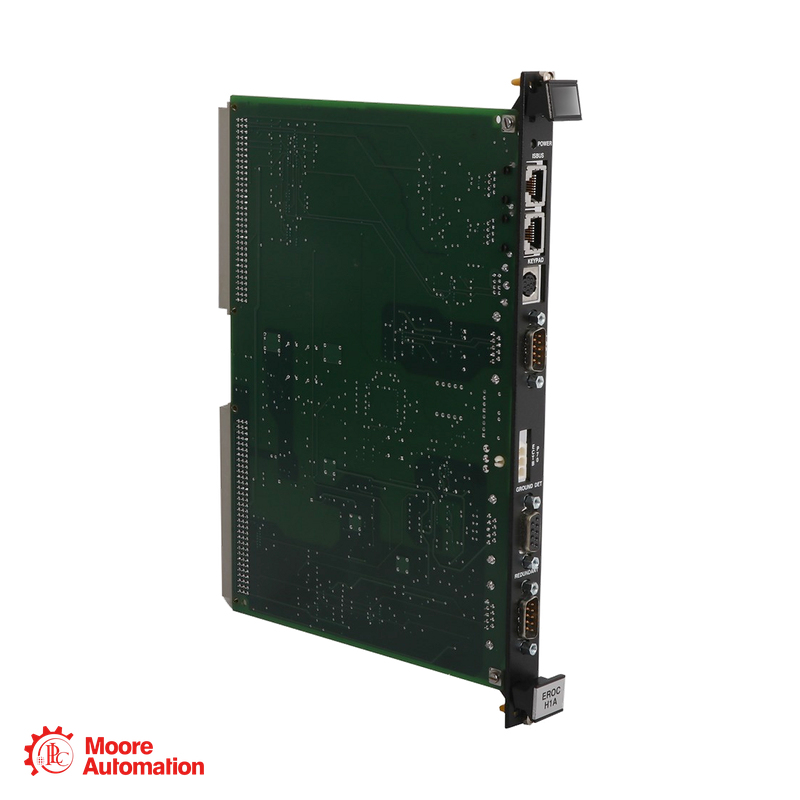

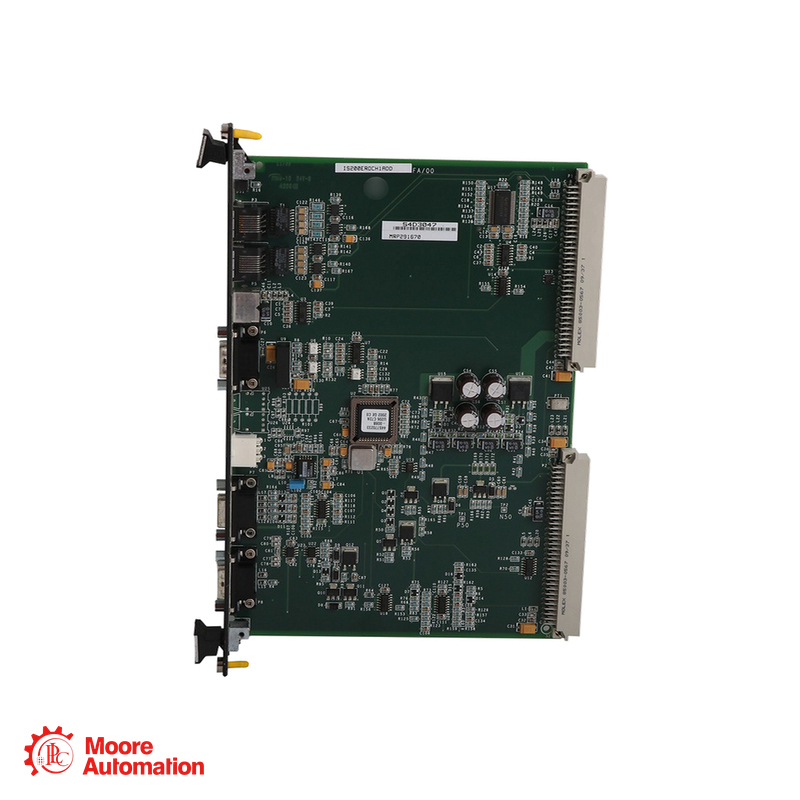

GE IS200ERIOH1A EX2100 Exciter Regulator I/O Board

Identify IS200ERIOH1A by the complete GE part number, visible hardware revision, board label, installed slot/backplane position and the EX2100 project documentation. A similar ERIO designation or adjacent revision should not be treated as interchangeable without matching the system bill of material.

Check whether the installed excitation system uses a simplex or redundant regulator architecture, then match the backplane/I/O arrangement, mating connectors and control configuration. GE documents EX2100e products in simplex and redundant configurations, so compatibility depends on the complete project configuration rather than the board name alone.

IS200ERIOH1A is used as an exciter regulator I/O board in the EX2100 control path, where it supports system and customer I/O exchange for the generator-excitation application. The required channels and terminations must be confirmed against the site I/O list and wiring drawings.

Before installation, follow the site safety and ESD procedures and verify the correct slot/backplane, connector keying, wiring and hardware revision. During commissioning, use the approved EX2100 procedures to confirm board recognition, I/O point status, alarms/events and signal operation before returning the excitation system to service.

Board replacement alone does not define excitation performance or a plant network upgrade. Verify the EX2100 control configuration, I/O mapping, diagnostics and any project-level Mark VIe, Modbus/TCP, OPC or OPC UA integration separately; GE identifies those interfaces at system level, not as a standalone IS200ERIOH1A specification.

Provide the complete IS200ERIOH1A part number and revision, equipment nameplate, regulator redundancy, slot/backplane position, I/O list, wiring/termination drawings and current control configuration. For a migration, also identify retained field devices, cabinet terminations and any I/O remapping, because GE controls-only migrations may retain field wiring and terminations.
