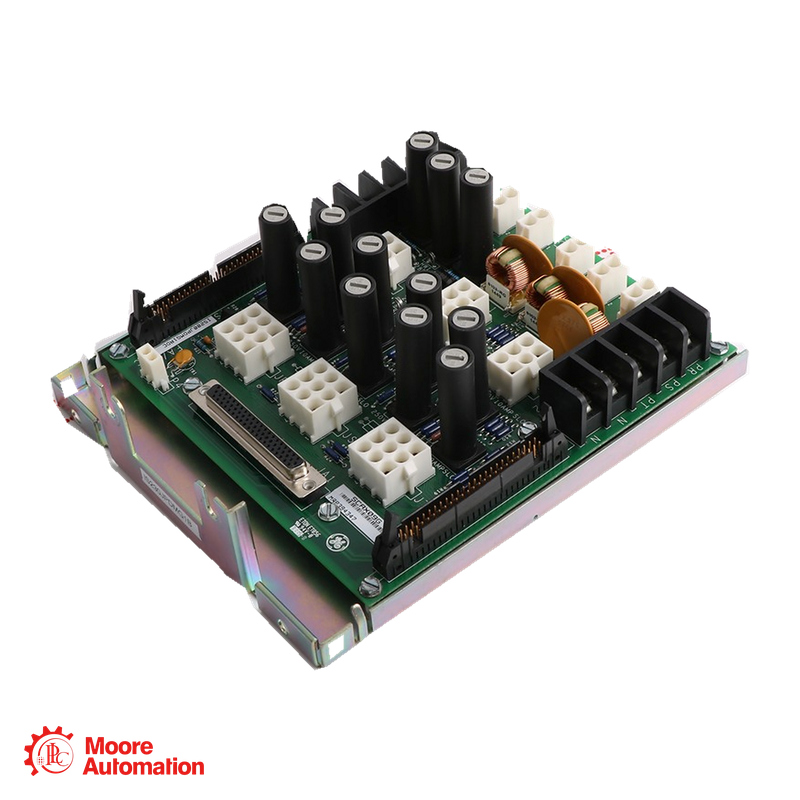

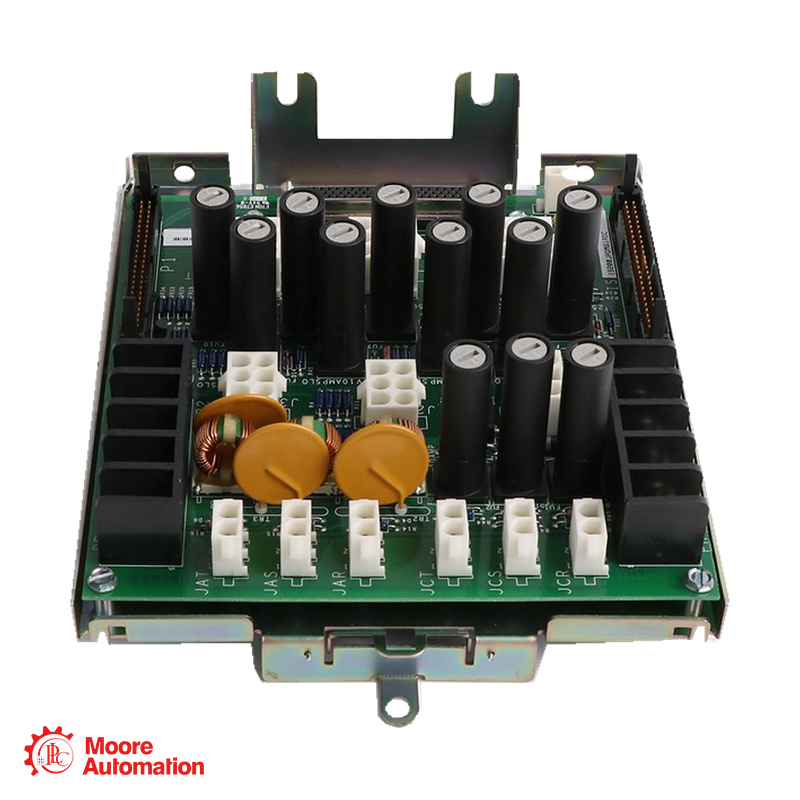

GE IS200JPDMG1R Mark VIe JPDM Power Distribution Board

Identify IS200JPDMG1R by the complete GE part number, visible board revision, installed PDM position, connector arrangement and the project bill of material. A similar JPDM designation should not be treated as interchangeable without matching the documented power-distribution architecture.

Match IS200JPDMG1R to the installed Mark VIe power-distribution design, associated PPDA monitoring interface, connected JPD distribution hardware, branch connections and cabinet documentation. Compatibility depends on the complete system arrangement, not the JPDM family name alone.

IS200JPDMG1R provides the control-power distribution function within the Mark VIe architecture. It routes power through the installed distribution path while the associated monitoring hardware provides system-level feedback for the configured PDM arrangement.

Follow the site safety and ESD procedures, then verify the correct PDM position, connector keying, branch wiring, protective devices and hardware revision. During commissioning, use the approved Mark VIe procedures to confirm the expected distribution status and operation of the assigned power branches.

Evaluate IS200JPDMG1R within the complete Mark VIe power-distribution architecture. Confirm branch loading, monitored status paths and project-level interfaces separately; network behavior should be attributed to the associated control and monitoring hardware, not to the JPDM board unless documented for the installed configuration.

Use the complete IS200JPDMG1R order number as the baseline. Other JPDM group or revision codes may represent hardware changes, so confirm the equipment bill of material, board label, installed position, connected distribution hardware and GE project documentation before ordering an alternative.
