GE MULTILIN 750 · ENHANCED FEEDER PROTECTION

750-P5-G5-S5-HI-A20-R-E-H

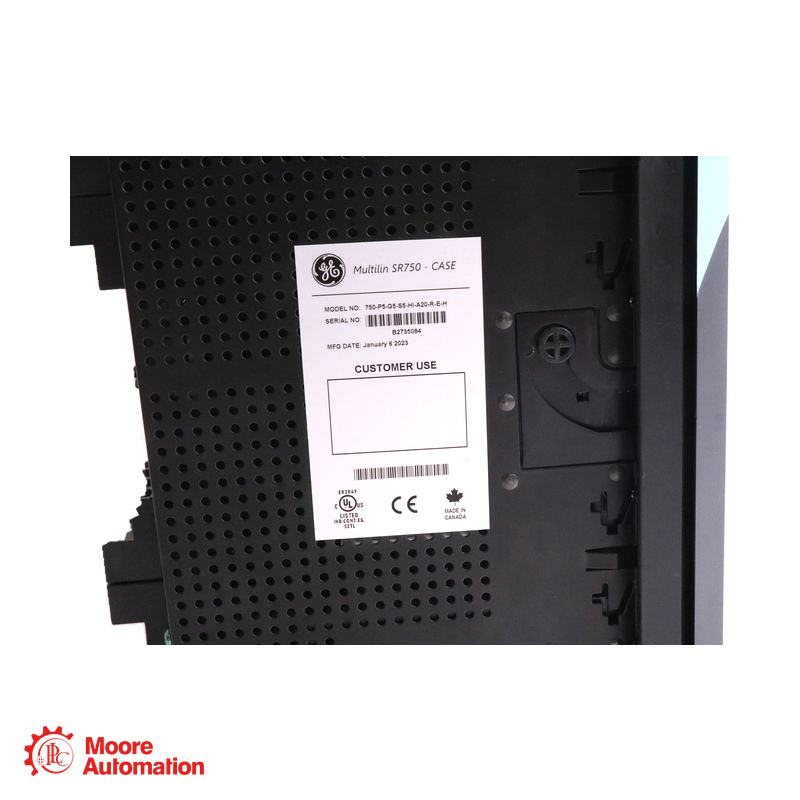

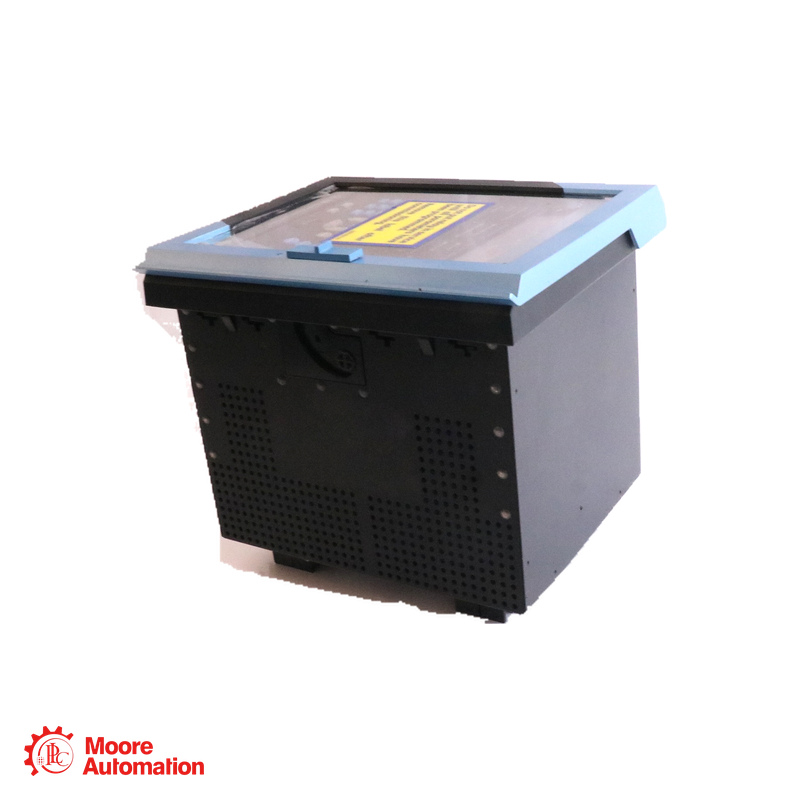

750-P5-G5-S5-HI-A20-R-E-H is a GE Multilin 750 feeder management relay configured with 5 A phase, zero-sequence and sensitive-ground current inputs. Its order code selects high-range control power, eight 4–20 mA analog outputs, a red breaker-closed LED, an enhanced display and harsh-environment conformal coating.

PRODUCT TYPEFEEDER RELAY
PLATFORMMultilin 750
CT INPUTS5 A
ANALOG OUT8 × 4–20 mA
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● ENHANCED FEEDER PROTECTION
MULTILIN 750

750-P5-G5-S5-HI-A20-R-E-H

FEEDER RELAY

MULTILIN 750 · FEEDER PROTECTION · ENHANCED DISPLAY

MODULE ROLE
750-P5-G5-S5-HI-A20-R-E-H provides distribution-feeder protection, control and metering using the configured current and voltage inputs.
LONG DESCRIPTION
750-P5-G5-S5-HI-A20-R-E-H combines phase and ground overcurrent protection with feeder metering, breaker monitoring and event records. The P5, G5 and S5 options specify 5 A current inputs. HI selects the high-range control supply, A20 provides eight 4–20 mA outputs, E selects the enhanced display, and H adds the documented harsh-chemical-environment coating option. The E display option does not specify the T Ethernet option.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 750-P5-G5-S5-HI-A20-R-E-H Reference Is Structured

750
Base relay750 feeder management relay
P5
Phase current inputs5 A
G5
Zero-sequence current input5 A
S5
Sensitive-ground current input5 A
HI
Control power88–300 Vdc or 70–265 Vac, 48–62 Hz
A20
Analog outputsEight 4–20 mA outputs
R
Breaker-closed indicationRed LED
E
Display optionEnhanced display
H
Environmental protectionHarsh chemical environment conformal coating
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Multilin 750 ↗
750-P5-G5-S5-HI-A20-R-E-H FEEDER RELAY

Engineering data at a glance

Click “+” to expand more specifications.

PHASE CT5 A
GROUND CT5 A
OUTPUTS8
OUT RANGE4–20 mA
Selected options: 5 A phase and ground current inputs, eight 4–20 mA analog outputs, enhanced display and harsh-environment coating.
Module configuration The complete reference 750-P5-G5-S5-HI-A20-R-E-H selects P5/G5/S5 current inputs, HI power, A20 outputs, a red breaker-closed LED, the enhanced display and H coating. The 750 does not include the 760 autoreclose function.
GENERAL INFORMATION −
BrandGE Multilin
Part number750-P5-G5-S5-HI-A20-R-E-H
Product typeFeeder Management Relay
Phase current inputs5 A (P5)
Zero-sequence current input5 A (G5)
Sensitive-ground current input5 A (S5)
CONTROL POWER ＋
DC supply, HI option88–300 Vdc
AC supply, HI option70–265 Vac at 48–62 Hz
Control-power consumption25 VA nominal; 35 VA maximum
OUTPUTS & HARDWARE ＋
Analog outputsEight 4–20 mA channels (A20)
Breaker-closed indicationRed LED (R)
DisplayEnhanced LCD (E)
Environmental optionHarsh chemical environment conformal coating (H)
Case arrangementDrawout relay and companion case
SERIAL COMMUNICATION ＋
Standard serial interfaces: Front RS232 port and rear RS485/RS422 interfaces. E specifies the enhanced display; T is the separate enhanced-display-with-Ethernet ordering option.
Source: GEK-106471E, 750/760 Instruction Manual, order codes section 2–6 and specifications; GE GER-4012 enhanced-display order table.
FAQ

Questions Buyers Ask Most

Which current inputs are selected by 750-P5-G5-S5-HI-A20-R-E-H?＋

750-P5-G5-S5-HI-A20-R-E-H has P5 phase, G5 zero-sequence and S5 sensitive-ground current input options, each rated for a 5 A CT secondary.

What control supply does 750-P5-G5-S5-HI-A20-R-E-H require?＋

750-P5-G5-S5-HI-A20-R-E-H uses the HI supply option: 88–300 Vdc or 70–265 Vac at 48–62 Hz. Match the applied supply to the relay nameplate.

How many analog outputs does 750-P5-G5-S5-HI-A20-R-E-H provide?＋

750-P5-G5-S5-HI-A20-R-E-H selects A20, which provides eight 4–20 mA analog outputs for configured measured quantities.

Does the E option on 750-P5-G5-S5-HI-A20-R-E-H include Ethernet?＋

750-P5-G5-S5-HI-A20-R-E-H selects an enhanced display with E. In the GE ordering table, T is the distinct enhanced-display-with-Ethernet option; E alone does not specify that port.

What does the H option on 750-P5-G5-S5-HI-A20-R-E-H mean?＋

750-P5-G5-S5-HI-A20-R-E-H includes the harsh-chemical-environment conformal-coating option. This coating option does not replace the relay enclosure and installation requirements.

Other Available Revisions for the 750-P5-G5-S5-HI-A20-R-E-H＋

Other 750 ordering combinations vary in CT rating, power, analog-output range, display and environmental protection. No different complete code was confirmed as an interchangeable replacement for 750-P5-G5-S5-HI-A20-R-E-H; compare every option and installed configuration before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
750-P5-G5-S5-HI-A20-R-E-H

Official manufacturer-manual PDF status for GE 750-P5-G5-S5-HI-A20-R-E-H.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering 750-P5-G5-S5-HI-A20-R-E-H was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEK-106471E, 750/760 Instruction Manual, order codes section 2–6 and specifications; GE GER-4012 enhanced-display order table.

GE MULTILIN 750 SYSTEM RELATIONSHIP

How 750-P5-G5-S5-HI-A20-R-E-H Fits Multilin 750 Control

GE is the manufacturer brand; GE Multilin 750 is the product family; and 750-P5-G5-S5-HI-A20-R-E-H is the feeder management relay used for distribution-feeder protection and management.

GE · BRAND
GE Multilin 750Feeder Management Relay
SYSTEM ROLE

Feeder Management Relay

Provides feeder protection, control and metering within a distribution protection scheme.

MODULE / CONFIGURATION

P5 · G5 · S5 · HI · A20

The selected configuration uses 5 A CT inputs, high-range control power and eight 4–20 mA analog outputs.

COMMUNICATION ROLE

750-P5-G5-S5-HI-A20-R-E-H · Feeder Management Relay

Serial communications support integration with the installed monitoring and control system.

System relationship: The 750 relay processes feeder measurements and protection logic; its drawout case provides the permanent external wiring interface.
APPLICATION AREAS

Application map for 750-P5-G5-S5-HI-A20-R-E-H

Distribution FeedersPrimary protection and control of distribution feeders
Backup ProtectionConfigured backup protection for feeders, buses, transformers and lines
MULTILIN FEEDER MANAGEMENT 750-P5-G5-S5-HI-A20-R-E-H 750-P5-G5-S5-HI-A20-R-E-H · Feeder Management Relay
Feeder MeteringMonitor current, voltage, power and energy in the protection application
Breaker MonitoringTrack breaker operation and configured protection events
ABOUT MOORE AUTOMATION

A trusted industrial automation sourcing partner

Moore Automation Limited supplies industrial automation spare parts to customers worldwide, with dedicated sourcing, part-number verification, pre-shipment confirmation and responsive sales support.

Global sourcing Pre-shipment verification One-year warranty
SERVICE

Industrial Automation Order Support

A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.

STAGESERVICE ACTIONWHAT WE CHECK OR PROVIDE
01PROCUREMENT
Product SourcingCurrent, hard-to-find and discontinued industrial automation parts.
02VERIFICATION
Part Number ReviewComplete model, suffix, nameplate, visible revision and application details.
03CONFIRMATION
Pre-Shipment CheckModel, label, condition and packaging confirmed with actual photos or video.
04FULFILLMENT
Global Delivery
Worldwide delivery with flexible shipping options. We support door-to-door pickup or delivery to your nominated freight forwarder in China.
DHLFedExUPSTNT
05ASSURANCE
One-Year WarrantyOne-year warranty from delivery for products supplied by Moore Automation.
Warranty Claim Information＋
What to provide: If a product-related issue occurs within the warranty period, contact our team and submit one clear, continuous video for review.
✓Complete product and nameplate
✓Power supply and wiring connections
✓Installation and operating conditions
✓Indicator lights, alarms or error messages
✓Clear description of the fault
✓Continuous video showing the issue
Review outcome: If the evidence confirms a covered product fault, Moore Automation will arrange the appropriate warranty solution.
SALES ASSISTANCE

Contact Sales Manager Frida

Include the complete part number, quantity and delivery destination.

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
Same-brand recommendations

GE Related Models

GE ↗PACSystems and Field Control models
Customers Also Source from Moore

Hot-selling Models

Select a brand to view models
OTHER BRANDSSelected measurement and automation models
Fisher67CFRInstrument Supply Regulator
Rosemount3051CD4A22A1AM5B4DFE5Pressure Transmitter
Rosemount3051CG3APressure Transmitter
Rosemount3051CG4A22APressure Transmitter
Endress+HauserCLD18Conductivity Transmitter
Endress+HauserCLS15-A1A1AConductivity Sensor
Endress+HauserCLS50D-AA2C21Conductivity Sensor
Endress+HauserCLS54Conductivity Sensor
Endress+HauserCOS61D-1020/0Dissolved Oxygen Sensor
Endress+HauserCPM253-CP00015pH/ORP Transmitter
