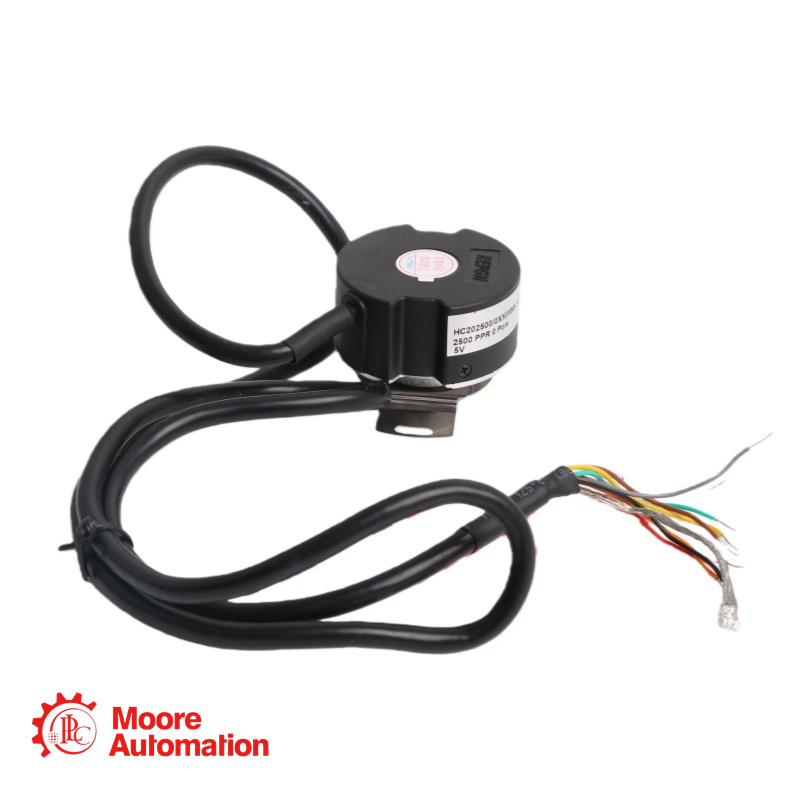

HENGSTLER ENCODER HC202500/0XX0AJ2 INCREMENTAL ENCODERS

Detailed Description

The HENGSTLER ENCODER HC202500/0XX0AJ2 is a member of the HC20 series, which represents a family of high-performance, compact, hollow-shaft optical rotary encoders. This specific model, the HC202500, is engineered as a versatile motor feedback solution for stepper, servo, and brushless DC (BLDC) motors.

Product Parameters

Brand/Model: HENGSTLER ENCODER HC202500/0XX0AJ2 INCREMENTAL ENCODERS
Type: Incremental Optical Rotary Encoder with optional commutation.
Technology: Optical with Phased Array ASIC.
Incremental Resolution: 2500 PPR (Pulses Per Revolution).
Output Channels: Two-channel quadrature (A, B) with optional Index (Z). Complementary outputs available depending on electrical option.
Maximum Output Frequency: 500 kHz (for resolutions >1024 PPR).
Supply Voltage: Typically DC 5V ±10% (SELV).
Current Consumption (no load):
Incremental only: 150 mA max.
Incremental + Commutation: 175 mA max.
Accuracy:
Incremental: 40 arc-seconds max, edge-to-edge.
Commutation: ±6 arc-minutes max.
Shaft Runout Tolerance: ±0.2 mm max.
Shaft Axial Movement: ±0.8 mm max.
Maximum Mechanical Speed: 12,000 rpm (limited by max output frequency).
Operating Temperature: -40°C to +120°C.
Storage Temperature: -40°C to +120°C.
Shock Resistance: 100 G for 6 ms.
Vibration Resistance: 2.5 G, 5 to 2000 Hz.
Humidity: Up to 98% non-condensing.

More Information

Key Feature
• Economical Servomotor Feedback with New Phased Array ASIC
• High 120°C Operating Temperature Won't Limit Motor Performance
• Up to 2500 PPR Direct-Read with Commutation Channels

Application Areas

HENGSTLER ENCODER HC202500/0XX0AJ2 INCREMENTAL ENCODERS is using in these areas like Servo & BLDC Motor Drives, Stepper Motor Systems, Robots, automated guided vehicles (AGVs), pick-and-place units, Packaging & Printing Machinery, Semiconductor, Manufacturing Equipment, Medical & Laboratory

FAQ

Q: What commutation pole counts are available for the HC202500/0XX0AJ2?
A: The HC202500/0XX0AJ2 supports 4, 6, 8, or 10-pole motor configurations.
Q:How do I align the commutation signals with my motor's magnetic poles using the HC202500/0XX0AJ2?
A:The HC202500/0XX0AJ2 features a spring clip mounting system that allows ±20° rotational adjustment.
Q: Can the HC202500/0XX0AJ2 be used with both 5V and higher voltage controllers?
A: The standard HC202500 operates on 5V ±10%.
