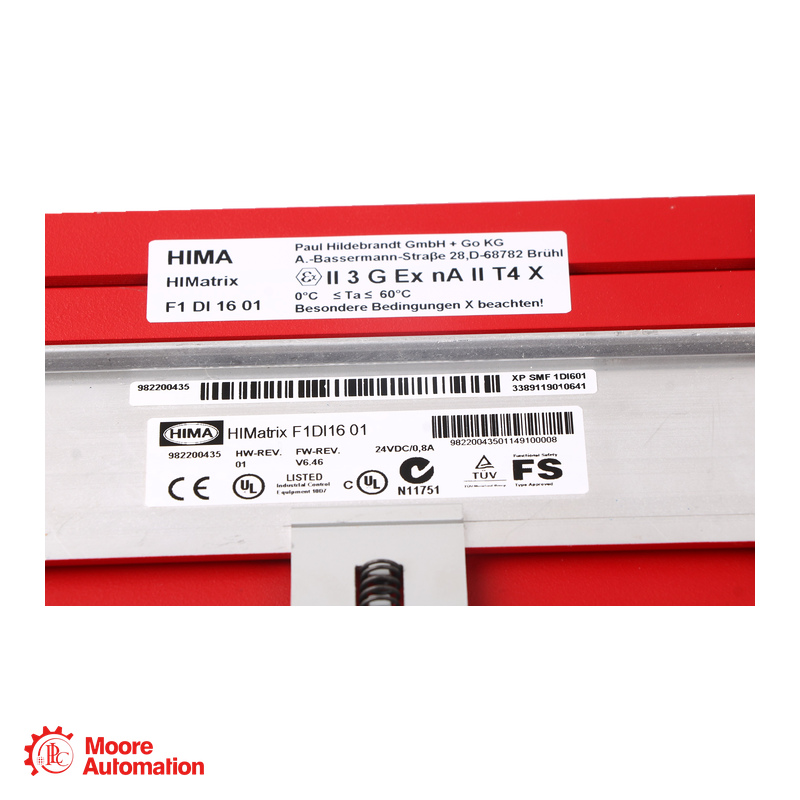

The HIMATRIX F1 DI 16 01 is a compact safety-related remote I/O with 16 digital inputs and four pulsed outputs for input line monitoring. It extends HIMatrix or HIMax controllers through safeethernet and has two RJ-45 Ethernet ports. The remote I/O requires a connected controller and does not execute a user program.
Merk :
HIMAOnderdeel nummer :
F3423Beschrijving :
Planar F 8-fold relay amplifierExpand the sections to review input signals, power, networking and installation data.

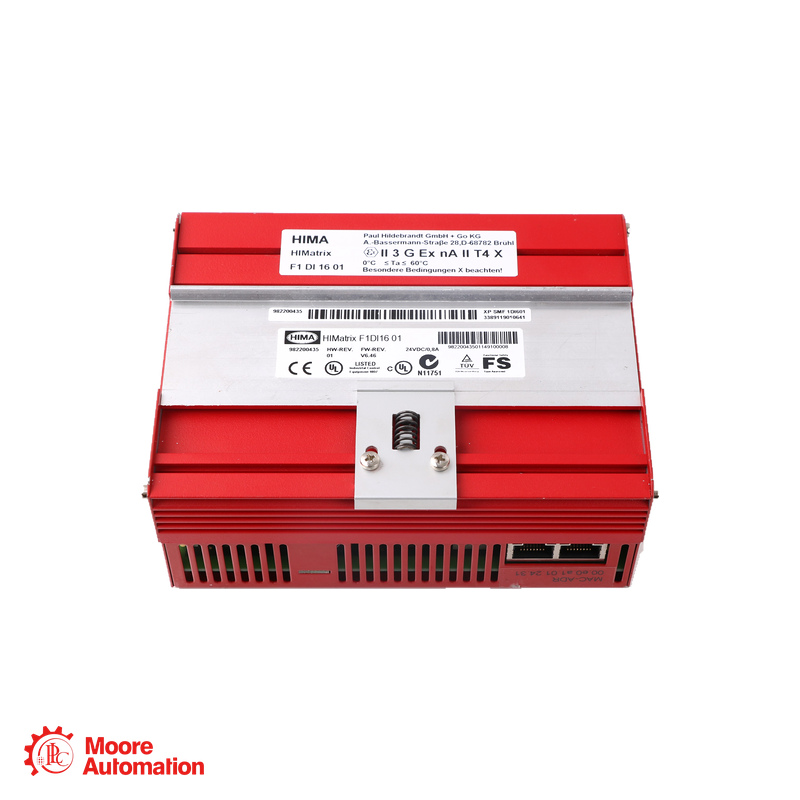

Maximum dimensions are specified without plugs: width includes enclosure screws, height includes the fixing bolt and depth includes the earthing screw. HIMATRIX F1 DI 16 01 mounts horizontally on a 35 mm DIN rail.
Source: HIMA HI 800 153 E, F1 DI 16 01 Manual, Rev. 1.01, sections 3.1–3.5 and 4.1–4.2. Standard F1 DI 16 01 operating range: 0 to +60 °C.
HIMATRIX F1 DI 16 01 is remote I/O, not a standalone application controller. It exchanges input data with a HIMatrix or HIMax controller through safeethernet; the connected controller executes the user program.
HIMATRIX F1 DI 16 01 has 16 safety-related digital inputs for contact or powered signals. HIGH is specified at 15–30 VDC and LOW at no more than 5 VDC. The inputs are not galvanically isolated.
HIMATRIX F1 DI 16 01 has four pulsed outputs for configured input line control. They help detect wiring faults and must not be used as safety-related actuator outputs.
HIMATRIX F1 DI 16 01 provides two RJ-45 10/100Base-T interfaces with an integrated switch. Safety-related input communication uses safeethernet, with the controller connection configured in the applicable engineering tool.
HIMATRIX F1 DI 16 01 uses SILworX with CPU operating system V7 or later and ELOP II Factory with earlier versions. The installed operating system and article variant determine the appropriate tool.
HIMATRIX F1 DI 16 01 is the standard 0 to +60 °C version. HIMA separately lists F1 DI 16 011 for −20 to +60 °C with protective coating. ELOP II Factory and SILworX variants have distinct article numbers.
Official manufacturer-documentation status for HIMA HIMATRIX F1 DI 16 01.
No current official HIMATRIX F1 DI 16 01 product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.
CONTACT FRIDASend the complete model, quantity, and your technical or purchasing question.
Technical data: HIMA HI 800 153 E, F1 DI 16 01 Manual, Rev. 1.01. A direct manufacturer-hosted manual PDF was not confirmed in the public download library.
HIMATRIX F1 DI 16 01 is a 16-channel safety digital input remote I/O. It transmits field input states to the connected controller over safeethernet. It does not execute the controller application itself.
