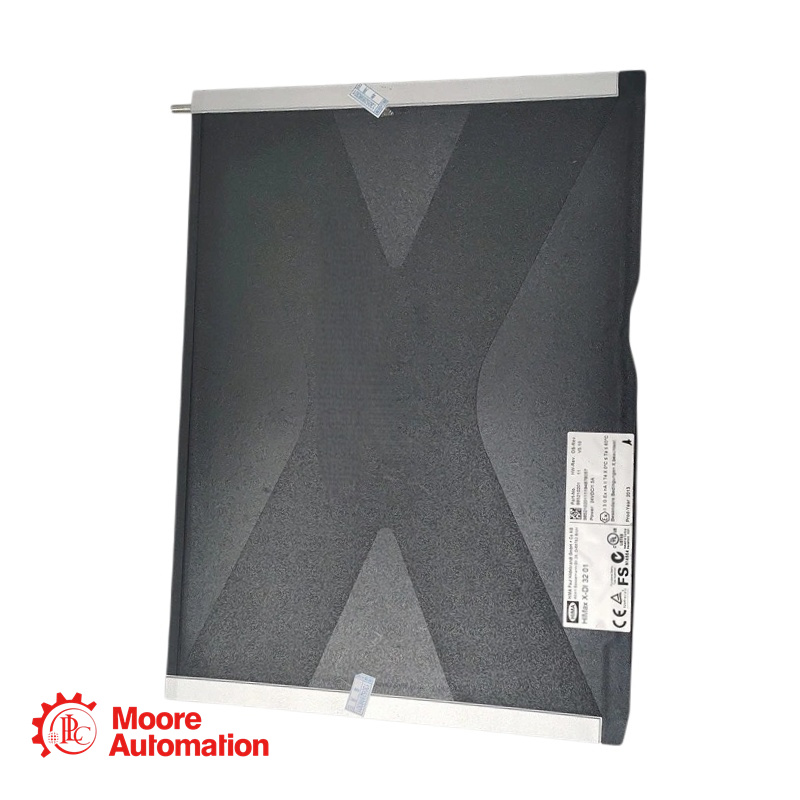

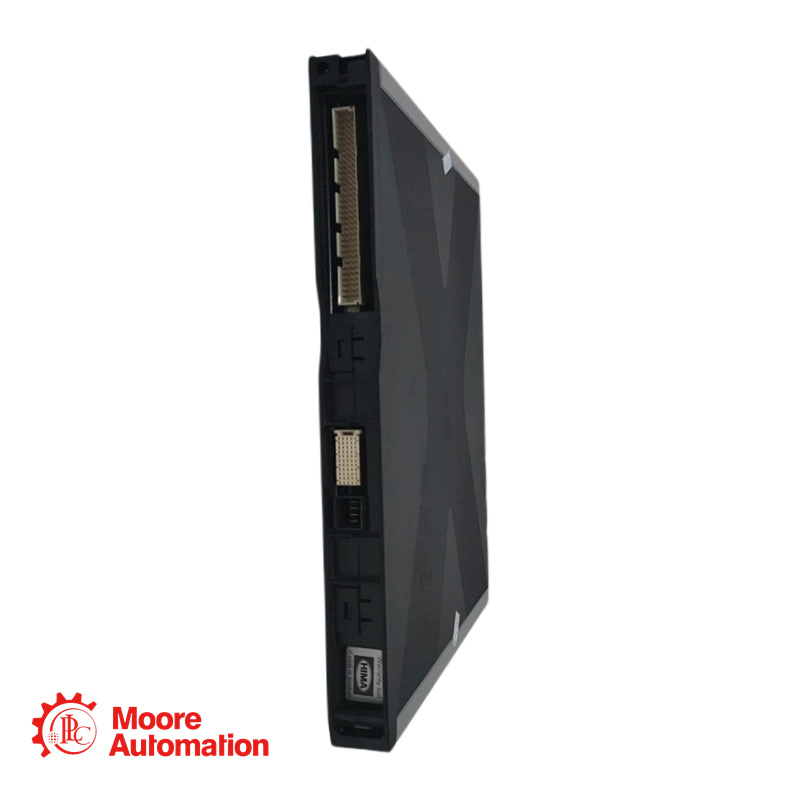

HIMA HIMAX X-CPU 01 Processor Module

Contact Here!

Sales Manager Frida ★★★★★

Description

• The HIMAX X-CPU 01 is the central processing module for the HIMax safety system. It is inserted into a base plate and requires a connector board (X-CB 001 01) for Ethernet connections. The module supports redundant operation with up to 3 additional processor modules, enabling high-availability safety systems.

Specification

●Supply voltage:24 VDC
●Current input:1.4 A
●Fuse (internal):7.5 A
●Flash EPROM:128 MB
●DDRAM, NVRAM:256 MB
●Program memory for each user program:1023 kB
●Number of events that can be stored:5000
●Safety time:≥ 20 ms
●Operating temperature:0 °C...+60 °C
●Storage temperature:-40 °C...+85 °C
●Humidity max.:95 % relative humidity, noncondensing

Application

The HIMAX X-CPU 01 is widely used in:

Process Industry:Chemical, petrochemical, pharmaceutical

Oil & Gas:Fire and gas detection systems, pipeline monitoring, wellhead control

Power Generation:Turbine control, boiler protection, burner management

Railway:Signal control, level crossing protection, rolling stock safety systems

Building Automation:Fire alarm systems

FAQ for HIMAX X-CPU 01

• Q1: What is the maximum number of processor modules and how should they be slotted?

A: Maximum 4 processor modules per HIMax system.

• Q2: How does the fault reaction work after an ERROR STOP?

A: The processor module implements a two-strike fault response:
First ERROR STOP → Module restarts normally and switches to system operation
Second ERROR STOP → User must restart the system using the PADT after eliminating the problem
After approximately 1 minute of system operation, the fault counter resets (next error becomes "first" again)

• Q3: What is the minimum safety time?

A: The minimum safety time is ≥ 20 ms, but the actual value depends on the application, cycle time, and configured watchdog time. The safety time must be ≥ 2 × watchdog time.
