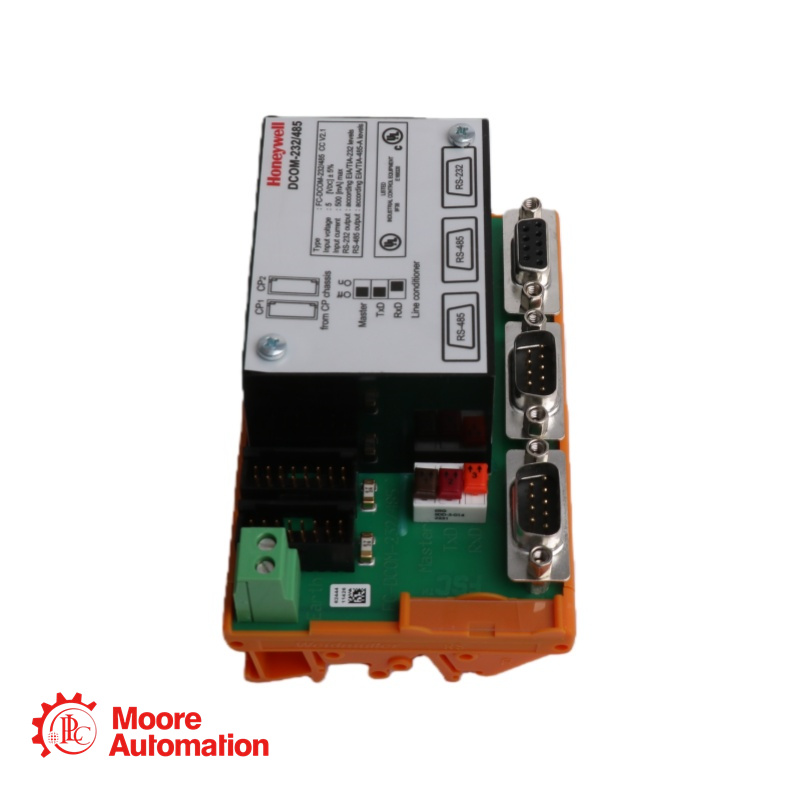

Honeywell FC-DCOM-485 Communication Interface Module

★Contact for Quoting★

Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Address: Siming District, Xiamen, Fujian, China

Discover This Product

Specification:

Channels: 2 independent serial channels
Interface Standards: RS-232 (point-to-point) and RS-485 (multi-drop) on each channel, software-selectable.
Supported Protocols: Modbus RTU (Master/Slave), ASCII, Honeywell CL (Command Language) for legacy devices.
Isolation: 1500 Vrms galvanic isolation (field-to-system) on each channel for noise immunity and ground loop prevention.
Data Rate: Programmable up to 115.2 kbps.
Diagnostics: Comprehensive status LEDs and software diagnostics for channel activity, errors, and communication health.
Configuration: Configured via Experion PKS Control Builder software or legacy TDC 3000 tools.
Power Supply: Powered from the Experion C Series or TPS I/O module carrier.
Operating Temperature: 0°C to +60°C

FAQ:

1.What communication standards does it support?
This module supports:
RS-232 (DB-9 connector)
RS-485/422 (terminal block)
It allows data exchange between controllers and devices using these common industrial serial interfaces.
2.What are typical baud rate and configuration options?
Baud rate: 300 bps to 115200 bps (configurable)
Configurable data format: data bits, parity, and stop bits are set via system configuration tools.
This makes the module flexible for different device communication needs.
3.How is it powered and mounted?
Input voltage: Typically 24 VDC supplied via the controller backplane or module bus
Mounting: Designed for DIN-rail or control cabinet mounting depending on system requirements.
