ICS TRIPLEX TRUSTED SYSTEM · EXPANDER CHASSIS

T8300

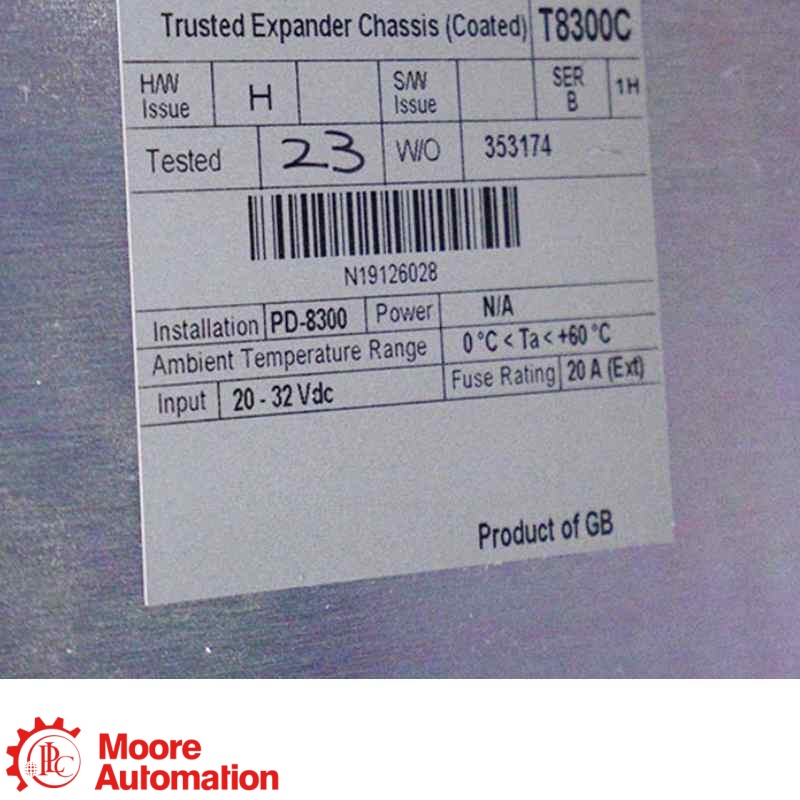

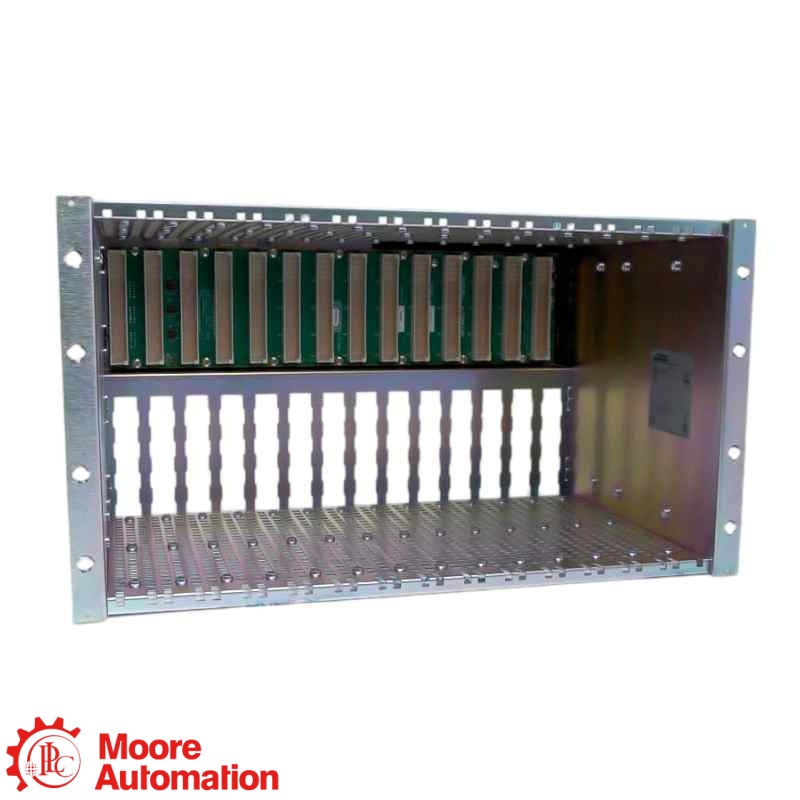

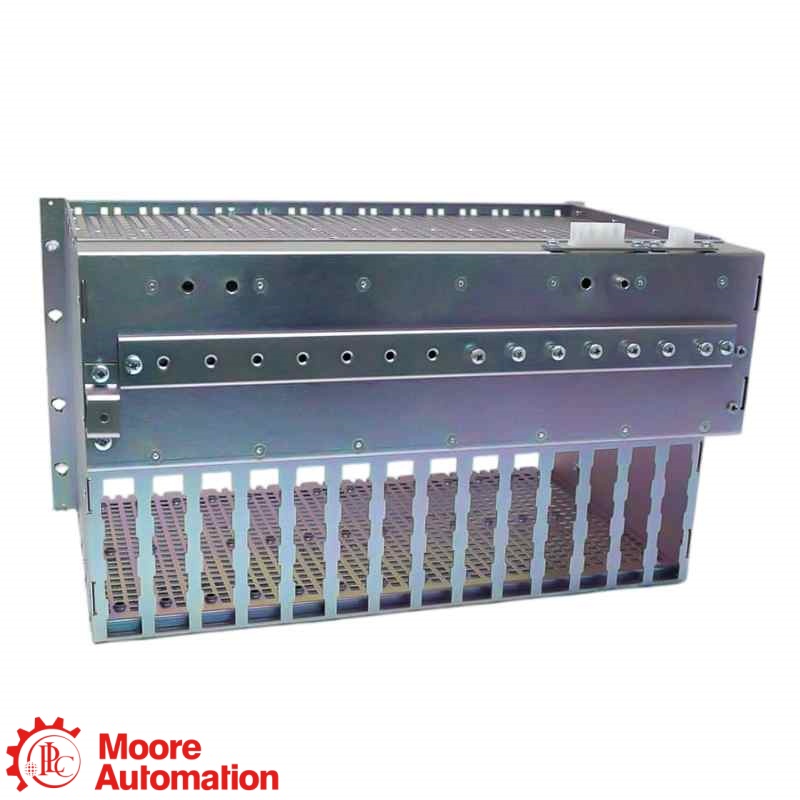

The T8300 is a Trusted Expander Chassis that houses up to two Trusted Expander Processors and 12 single-width Trusted I/O modules on an Inter-Module Bus backplane.

PRODUCT TYPETRUSTED EXPANDER CHASSIS
PLATFORMTrusted Expander Chassis
CONFIGURATION20 Vdc to 32 Vdc
APPLICATIONTrusted I/O Expansion
MANUFACTURERICS Triplex / Rockwell Automation
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ICS Triplex ● TRUSTED EXPANDER CHASSIS
ICS TRIPLEX TRUSTED SYSTEM

T8300

TRUSTED EXPANDER CHASSIS

TRUSTED SYSTEM · 2 processor slots · 12 I/O slots

MODULE ROLE
T8300 is the Trusted Expander Chassis for Trusted Expander Processors and I/O modules. Its IMB backplane provides module interconnections and redundant 24 Vdc power distribution.
CONFIGURATION NOTE
For T8300, confirm chassis mounting, system ID, redundant 24 Vdc supplies, processor slots and I/O-module requirements before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Rockwell Automation PD_T8300 ↗
T8300 TRUSTED EXPANDER CHASSIS

Engineering data at a glance

Click “+” to expand more specifications.

MODELT8300
PLATFORMTrusted Expander Chassis
CONFIGURATION20 Vdc to 32 Vdc
APPLICATIONTrusted I/O Expansion
Rockwell Automation Publication PD_T8300 identifies T8300 as the Trusted Expander Chassis with two processor slots and 12 I/O module slots.
Official product verification Verify the complete model T8300, mounting method, system ID, redundant 24 Vdc supplies, processor slots and I/O-module requirements before ordering.
GENERAL INFORMATION −
BrandICS Triplex / Rockwell Automation
Part numberT8300
Product typeTrusted Expander Chassis
Product familyTrusted Expander Chassis
System roleExpansion chassis for Trusted processors and I/O modules
PlatformTrusted Expander Chassis
CHASSIS CONFIGURATION ＋
Processor slots2 x 30 mm
I/O module slots12 x 30 mm single-width
Installation checkSwingframe, fixed-frame or T8380 panel mounting
POWER & SYSTEM DATA ＋
Supply voltage20 Vdc to 32 Vdc
External fusing20 A
Backplane connectors14 x DIN 41612, male
Expander communications30 m copper / 10 km fibre
Dimensions / weight268 x 483 x 312 mm / 5 kg
DOCUMENTATION & ORDER CHECK ＋
Reference: Verify the complete model T8300, mounting method, system ID, redundant 24 Vdc supplies, processor slots and I/O-module requirements before ordering.
Source: Rockwell Automation Publication PD_T8300, Issue 15 identifies T8300 as the Trusted Expander Chassis variant.
FAQ

Questions Buyers Ask Most

What is T8300 used for?＋

T8300 is a Trusted Expander Chassis that houses up to two Trusted Expander Processors and 12 single-width Trusted I/O modules on its Inter-Module Bus backplane.

How many module positions does T8300 provide?＋

T8300 provides two 30 mm Expander Processor slots and 12 single-width 30 mm Trusted I/O module slots.

Does T8300 use an Inter-Module Bus backplane?＋

T8300 uses an Inter-Module Bus backplane for electrical interconnections and other services between installed modules.

Which modules are housed by T8300?＋

T8300 houses Trusted Expander Processors and Trusted I/O modules; verify the intended chassis population and slot plan before installation.

What should be checked before replacing T8300?＋

For T8300, confirm mounting method, system ID, 20 to 32 Vdc supplies, processor slots, I/O capacity and connector requirements.

What official manual covers T8300?＋

T8300 is covered by Rockwell Automation Publication PD_T8300, Issue 15, Trusted Expander Chassis.

What information should be supplied when ordering T8300?＋

When ordering T8300, provide the exact catalog number, quantity, chassis mounting method, system ID, planned processor and I/O modules, and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
T8300

Official Rockwell Automation documentation for Trusted T8300.

Trusted Expander Chassis

Rockwell Automation Publication PD_T8300, Issue 15 describes T8300 as the Trusted Expander Chassis with two Expander Processor slots, 12 Trusted I/O module slots and an Inter-Module Bus backplane.

OFFICIAL MANUAL ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page follow Rockwell Automation Publication PD_T8300, Issue 15 for the Trusted Expander Chassis.

TRUSTED EXPANDER CHASSIS RELATIONSHIP

How T8300 Fits into the Trusted Expander System

Rockwell Automation publishes the Trusted product documentation; T8300 is the Trusted Expander Chassis; and T8300 provides processor and I/O module positions for Trusted system expansion.

ICS Triplex · BRAND
Trusted Expander Chassistrusted expander chassis
SYSTEM ROLE

trusted expander chassis

Provides two processor slots, 12 I/O module slots, IMB backplane connections and redundant 24 Vdc power distribution.

NETWORK / POWER

20 to 32 Vdc · 30 m copper / 10 km fibre

Confirm redundant power, chassis ID, module population and local or remote expander communications.

ORDER DATA

T8300 · Trusted Expander Chassis

Do not substitute another chassis without checking mounting, system ID, processor and I/O capacity, power and Expander Bus requirements.

System relationship: verify the exact chassis catalog number, power arrangement, system ID, mounting and planned module population.
APPLICATION AREAS

Application map for T8300

Trusted I/O Expansion20 A
Chassis ConfigurationConfirm T8300 mounting, system ID and module population
APPLICATION CENTER T8300 T8300 · Trusted Expander Chassis
Power and Bus IntegrationVerify dual-redundant 24 Vdc supplies and IMB connections
Replacement VerificationCheck the exact T8300 catalog number, chassis version, mounting and installed modules before replacement.
