Infineon TD330N16KOF 1600 V 330 A Thyristor/Diode Module

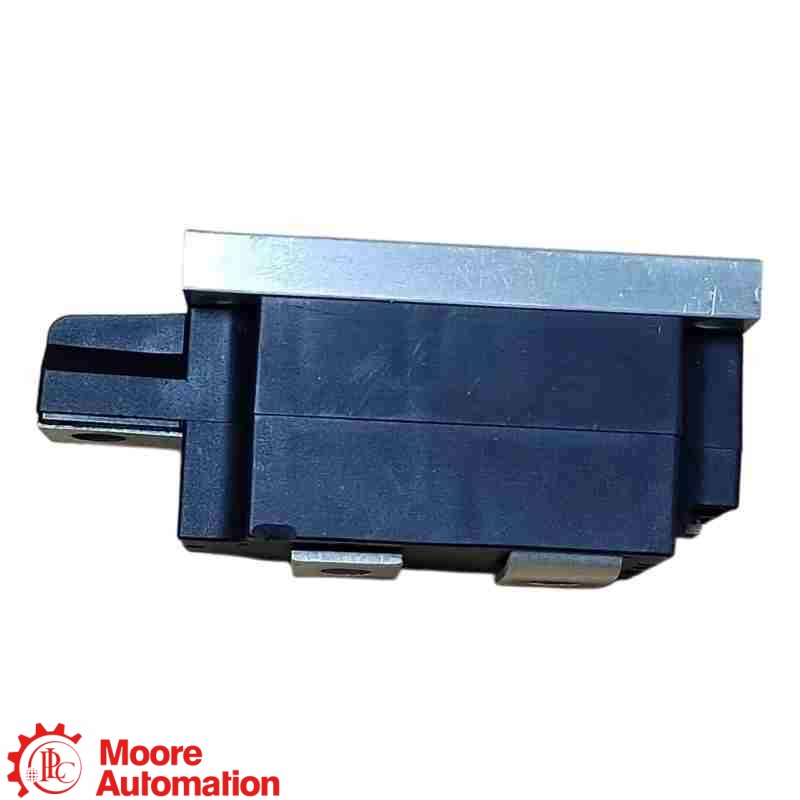

TD330N16KOF identifies an Infineon 50 mm Power Block using an SCR/diode phase-control configuration, rated 1600 V and 330 A at 85 °C case temperature.

TD330N16KOF switches and controls high-power AC in a phase-control circuit. The connected SCR/diode position, load, terminals and firing circuit must match the installed equipment.

TD330N16KOF is rated 1600 V VDRM/VRRM and 330 A average current at 85 °C case temperature; the official datasheet also lists 520 A maximum RMS on-state current.

TD330N16KOF requires a suitable heatsink, clean mounting surfaces, 5 Nm mounting torque, 12 Nm terminal torque and operation within the official −40 to +130 °C junction-temperature range.

TD330N16KOF is officially configured as SCR/diode phase control. Do not replace it with a dual-thyristor or another circuit configuration unless voltage, current, housing, terminals, gate drive and thermal design are confirmed.

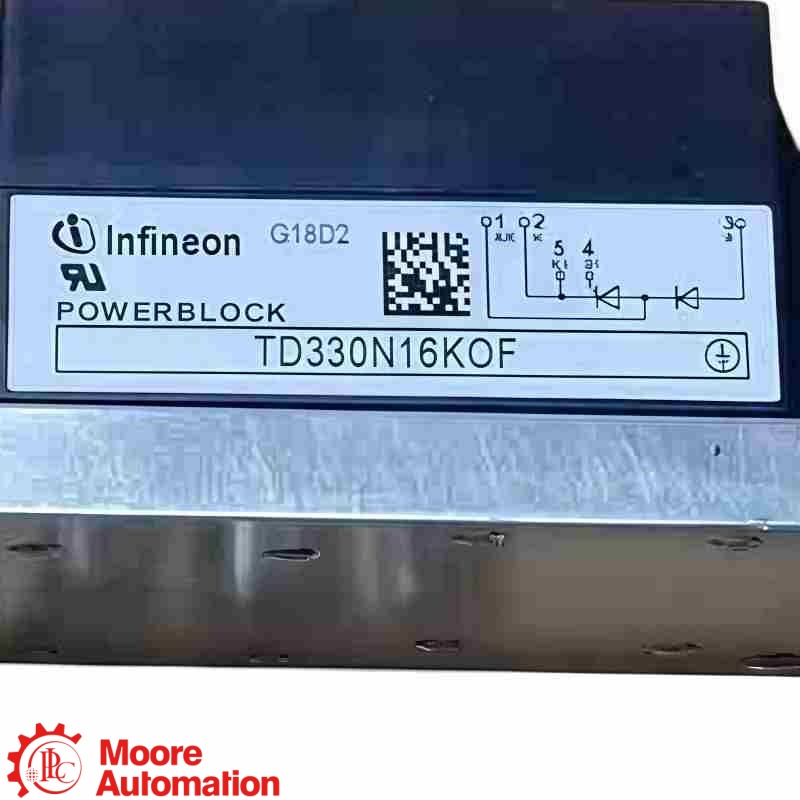

TD330N16KOF requires confirmation of the complete nameplate, 50 mm housing, SCR/diode circuit position, terminal orientation, gate wiring, blocking voltage, current rating, insulation and cooling conditions.

TD330N16KOF should be requested with the complete marking, quantity, clear nameplate and terminal photographs, installed equipment model, circuit position, heatsink arrangement and operating voltage/current requirements.
