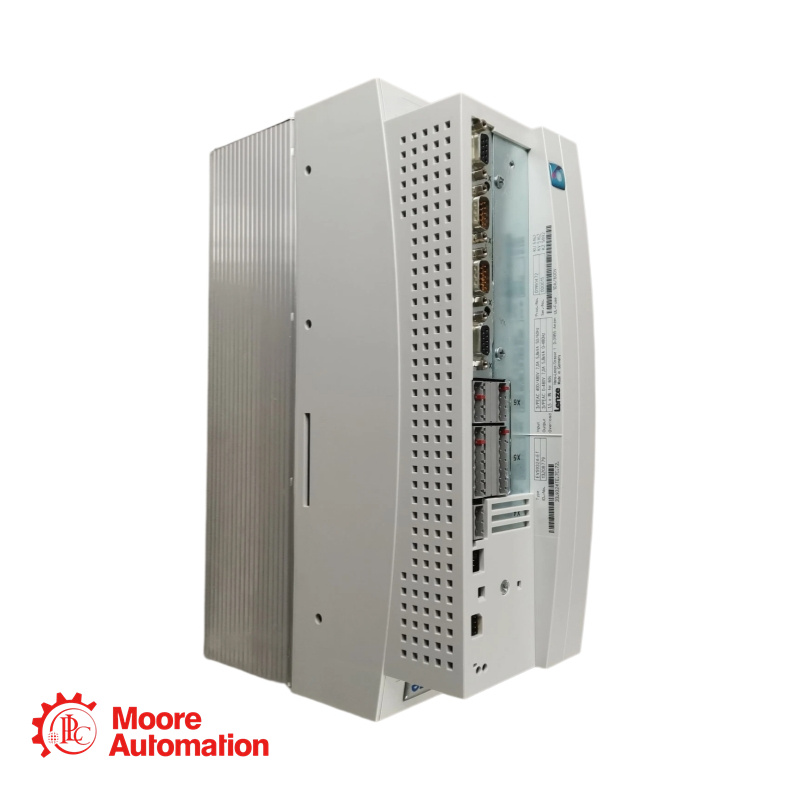

Lenze EVS9324-ET Servo Controller

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
EVS9324-ET

Description:

The EVS9324-ET module by Lenze is an efficient servo controller designed for environments where performance is critical. With an IP20 rating, it offers suitable protection for indoor applications. It is built to operate within a temperature range of 0 to 40 degrees Celsius without experiencing power derating. The EVS9324-ET servo controller requires a mains current of 7A when equipped with a mains filter, supporting a rated motor power of 3.0 kW.

The Lenze EVS9324-ET servo controller can function with rated voltages of either 400V or 480V and is compatible with three-phase mains voltages ranging from 320 to 528 Volts AC, allowing flexibility in various electrical settings. The EVS9324-ET servo controller also supports built-in units, facilitating integration into larger systems. Store the unit in environments between -25 and 55 degrees Celsius, ensuring it remains operational across a wide temperature spectrum.

Technical Data:

Manufacturer:Lenze
Product Line:Series 9300
Part Number:EVS9324-ET
Weight:5.41 kg
Product Description:Servo Controller
IP Rating:IP20
Operating Temperature:0 to 40 degrees Celsius without derating
Mains Current with Mains Filter:7A
Rated Motor Power:3.0 kW
Rated Voltages:400V and 480V
Mains Voltage Range:320 to 528VAC
Mains Voltage Type:Three phase
Built-in Unit:Supported
Storage Temperature:-25 to 55 degrees Celsius
