MTL 8220-DI-IS Discrete Input Module

Get Price Here:

Sales Manager: Frida

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Basic Information

Manufacturer: MTL Instruments (Eaton)
Product Family: MTL8000 Series I/O
Function: 16-Channel IS Digital Input (Switch / Proximity Detector Interface)
Primary Application: Zone 0 / Class I Division 1 Hazardous Area Signal Acquisition

Product Description

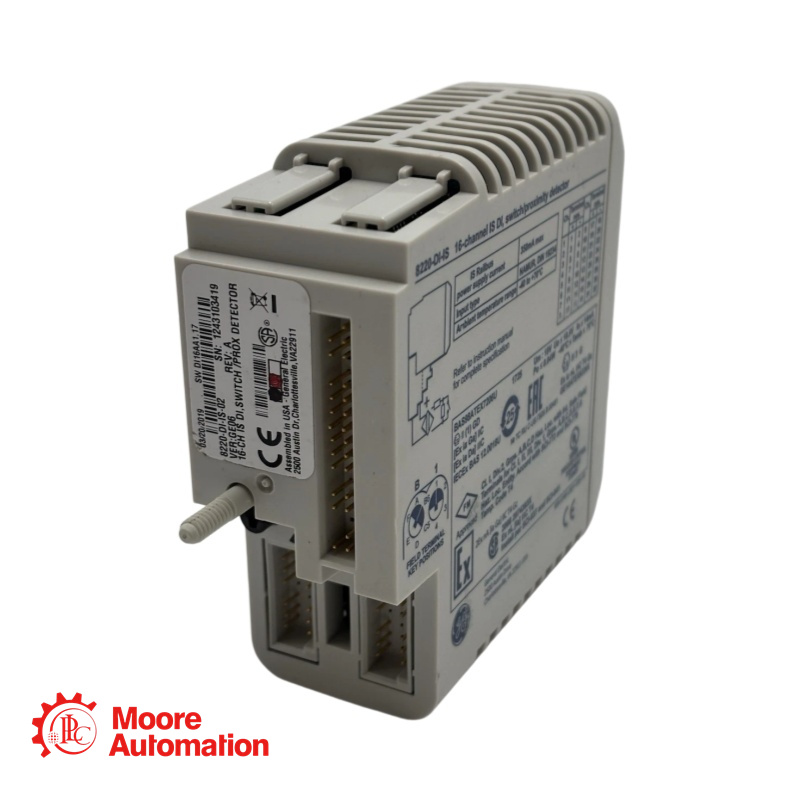

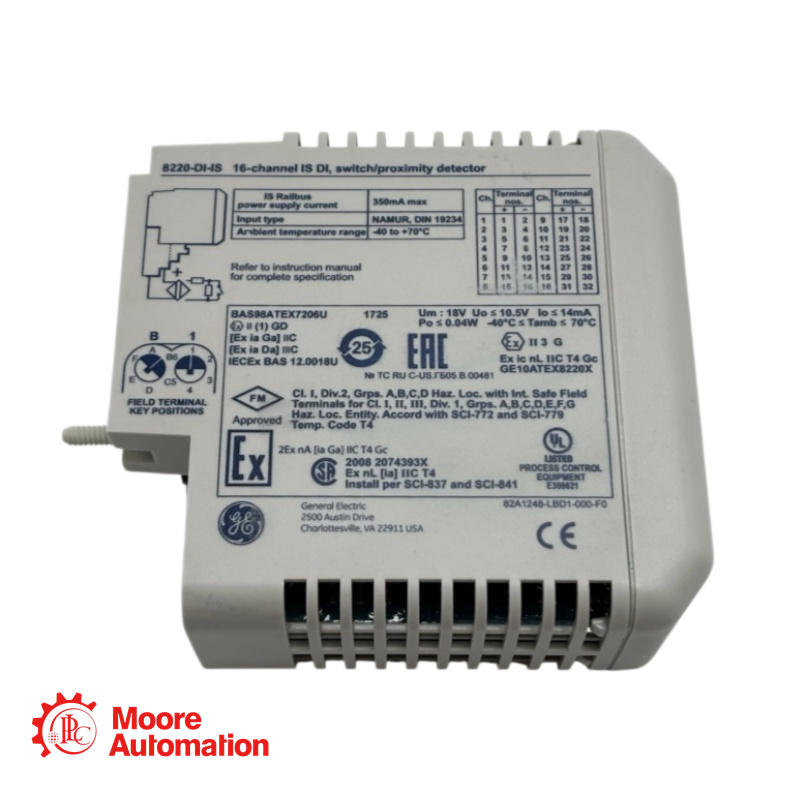

The 8220-DI-IS is a high-density, intrinsically safe input module designed to interface with up to 16 field devices located in hazardous areas. It accepts signals from dry contacts, simple apparatus, or NAMUR-compliant proximity detectors.

Technical Specifications

Application Fields

Chemical & Petrochemical:Bulk monitoring of manual valves, pressure switches, and level switches in storage tank farms.
Turbine Control Systems:Interface for vibration sensor alarm contacts (proximity probes) with LFD to ensure loop integrity.
Fire & Gas Panels:Monitoring of manual call points and smoke/heat detectors located in hazardous processing zones.
Rail & Transportation:Status feedback from track-side signaling equipment where intrinsic safety is mandated.

Frequently Asked Questions - 8220-DI-IS

Q: How does the Line Fault Detection (LFD) work on this module?
A: The module monitors the total loop resistance.
Normal Operation: Resistance corresponds to NAMUR current (1.2mA - 2.1mA).
Open Circuit: Loop resistance > 90 kΩ. The module reports a fault (Wire Break).
Short Circuit: Loop resistance < 100 Ω. The module reports a fault (Wire Short).
Note: LFD can be enabled or disabled per channel via software configuration to accommodate simple dry contact wiring.

Q: Can I use this module for high-speed counting applications?
A: Limited. The maximum input frequency is 20 Hz, and the minimum detectable pulse width is 45 ms. This is designed for slow mechanical pulse counting (e.g., turbine flow meter with reed switch output) rather than high-speed rotary encoder feedback.

Q: What is the difference between the 8623-FT-IS and 8624-FT-IS field terminals?
A:
8623-FT-IS: Standard terminal block for all 16 channels.
8624-FT-IS: Specialized terminal block that provides loop disconnect (discrete fuse/breaker) capability for 8 channels. This is used for maintenance overrides without powering down the entire module.
