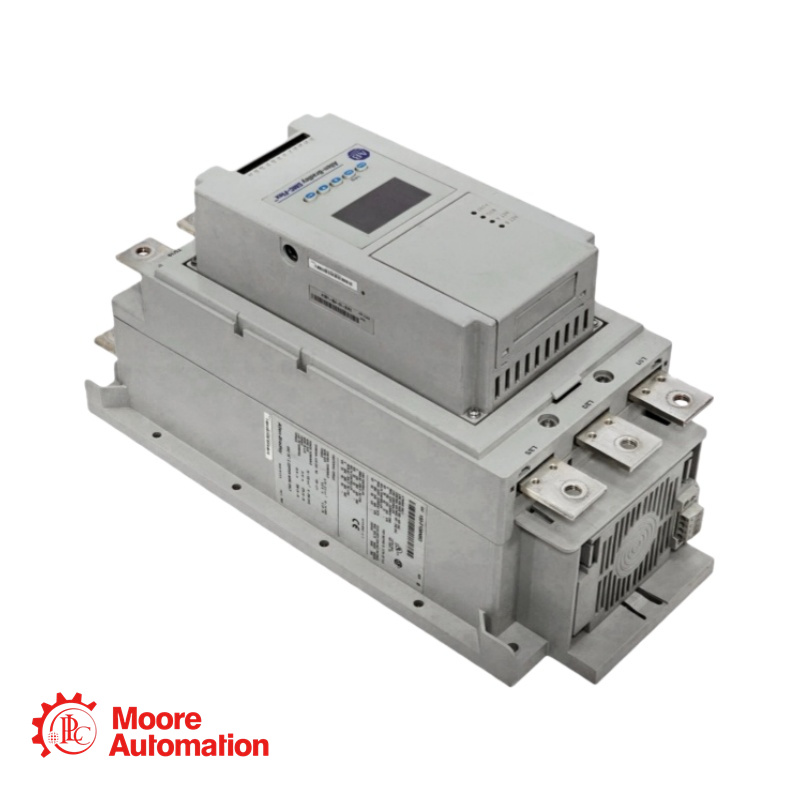

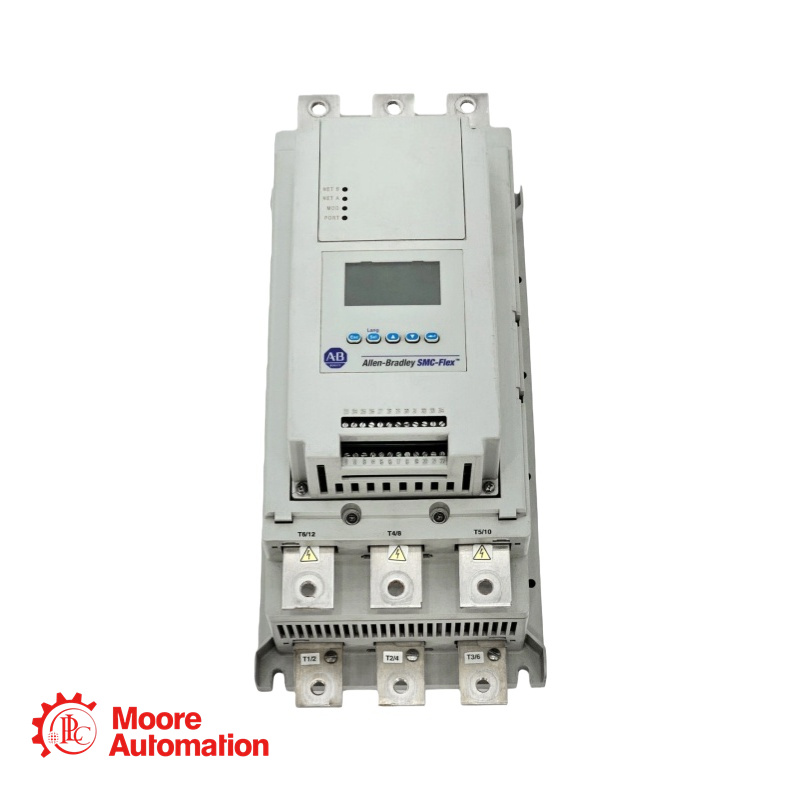

PLC 150-F108NBD Smart Motor Controller

Want to get a quotation?

5-Star Manager: Frida

Product Parameters

Rated Operational Voltage (Ue): 200...480V AC (-15%, +10%) for the power circuit, compliant with UL/CSA/NEMA standards.
Voltage Type for Actuation: AC
Rated Control Supply Voltage: 100V AC at both 50 Hz and 60 Hz.
Motor Connection & Current:
Line Connected: Maximum motor power 90 kW @ 690V AC (Y), 3-phase, 50 Hz. Motor current range 27...108 A @ 600/690V AC.
Delta Connected (Inside Delta): Maximum motor power 90 kW @ 400/415V AC, 3-phase, 50 Hz. Motor current range 47...187 A @ 500/575V AC.
Trip Characteristics: Trip classes available: 10, 15, 20, and 30.
Control Circuit:
Input OFF-state voltage maximum: 50V AC / 10V DC / 12V AC.
Input ON-state voltage minimum: 85V AC / 19.2V DC / 20.4V AC.
Input ON-state current: 20mA @ 120V AC / 40mA @ 240V AC / 7.6mA @ 24V AC/DC.
Module Ratings:
Transformer Control Module: 75VA @ 100...240V AC.
Heatsink Fan: 20VA @ 110/120V AC or 220/240V AC.
Inrush Current Control Module: 5A @ 24V DC.
Transient Watts Control Module: 60 W @ 24V DC.
Steady State Watts Control Module: 24 W @ 24V DC.
Associated timing for modules: Inrush Time 250 ms, Transient Time 500 ms.

About the Series

Product Family & Positioning

SMC Flex is part of Smart Motor Controller (SMC™) family. It is a modular, microprocessor‑based soft starter designed to control and protect three‑phase induction motors.

Key Features

Modular Design: Removable control module, power modules, and fan assembly for easier installation, maintenance, and service.
Advanced Intelligence: Built‑in LCD and keypad for local setup; also configurable via PC software.
Integrated Bypass: Once the motor reaches full speed, internal bypass contacts bridge the SCRs to reduce heat and save space.
Multiple Control Modes:
– Soft Start, Current Limit, Kickstart, Dual Ramp Start, Full Voltage Start
– Pump Control (for fluid surge reduction)
– Preset Slow Speed (for positioning/alignment)
– Smart Motor Braking (SMB™), Accu‑Stop™, Slow Speed with Braking
– Linear Speed Acceleration (requires tachometer)
Communications Flexibility: Built‑in DPI ports for connecting Human Interface Modules (HIMs) and communication adapters (DeviceNet™, EtherNet/IP™, PROFIBUS, Modbus/TCP, etc.).
Comprehensive Diagnostics & Metering: Real‑time monitoring of current, voltage, power, energy, power factor, motor thermal capacity, etc.
Protection & Alarms: Includes overload, undervoltage, overvoltage, phase unbalance, jam, stall, ground fault, and more.

Accessories & Options

Protective Modules: For line or load side protection (480V or 600V).
Terminal Lug Kits: Required for controllers rated 108 A and above.
Human Interface Modules (HIMs): Hand‑held or door‑mounted LCD keypads.
Communication Modules: Adapters for various industrial networks.
Upgrade Kits: Allow conversion from SMC Flex to SMC‑50 controllers (with bypass).
