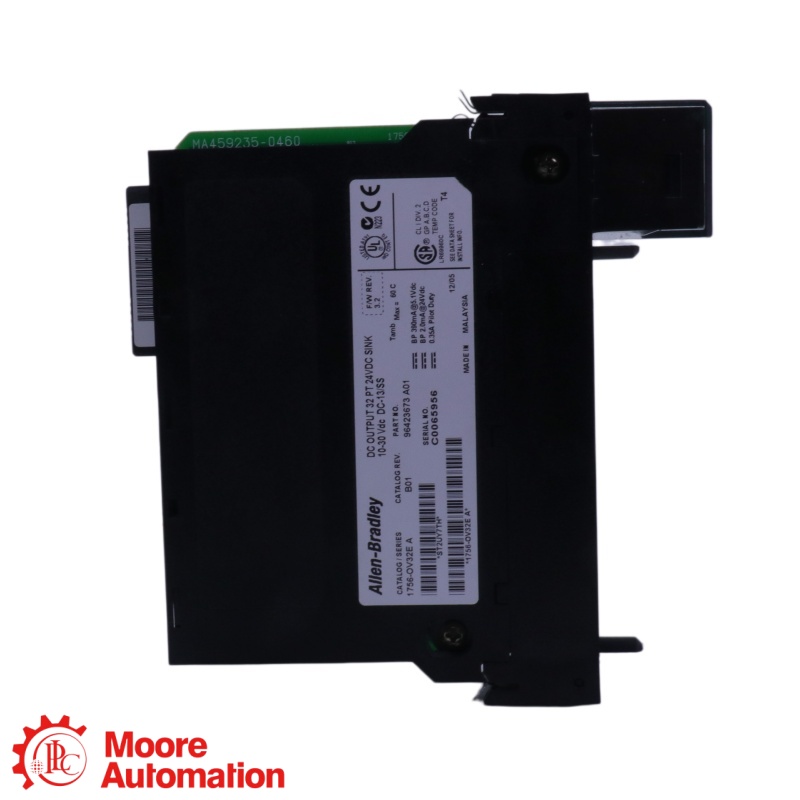

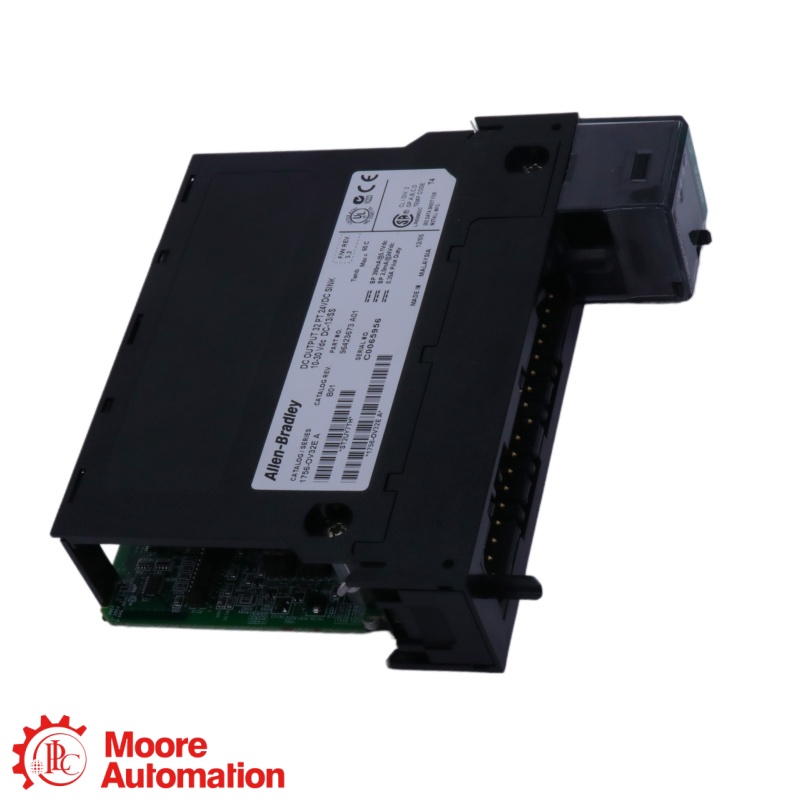

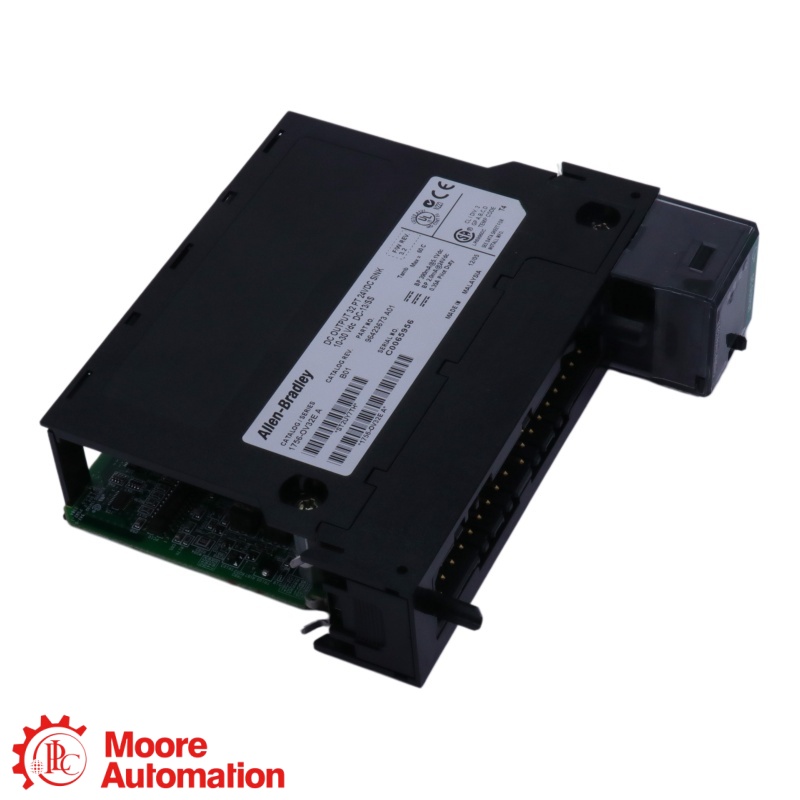

PLC 1756-OV32E 32-Point 10-30V DC Electronically Fused Sinking Digital Output Module

1756-OV32E is used to provide 32 electronically protected DC sinking outputs for solenoids, indicators, interposing relays and other compatible field loads.

1756-OV32E provides 32 sinking output points arranged as two isolated groups of 16 outputs.

1756-OV32E operates from 10–30 V DC; the connected loads and field supply must stay within the published per-point and group current limits.

1756-OV32E provides electronic fusing and channel diagnostics, supporting fault isolation and maintenance of the 32-point output circuits.

1756-OV32E provides 250 V continuous isolation between its two output groups of 16 points each.

1756-OV32E can switch compatible DC loads, but inrush current and group loading must be verified against the exact field device and wiring design before commissioning.

1756-OV32E should be quoted with the complete catalog number, series/revision, RTB requirement, field voltage, load current, quantity and destination.
