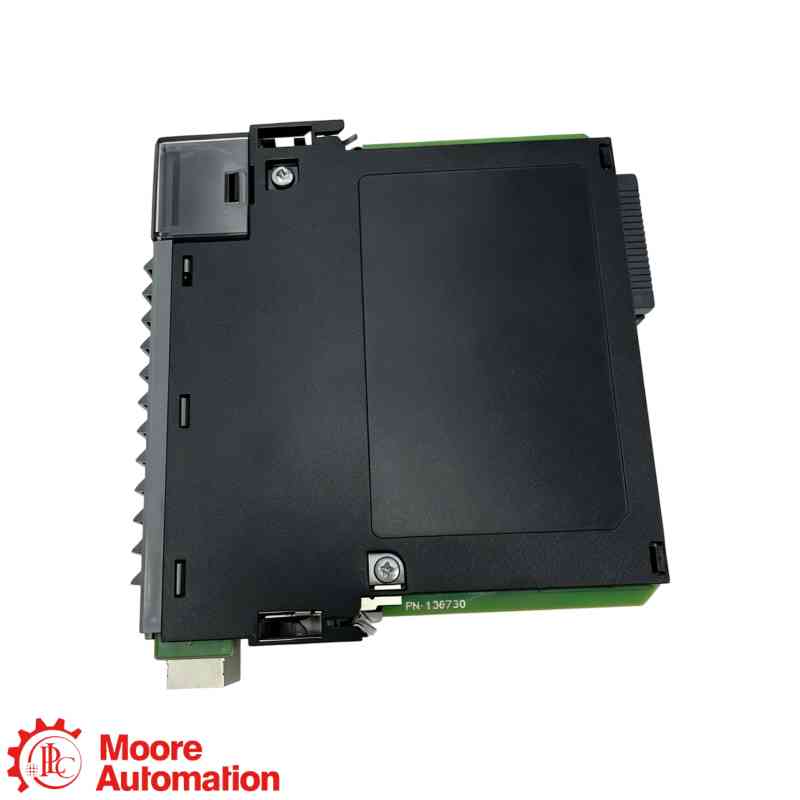

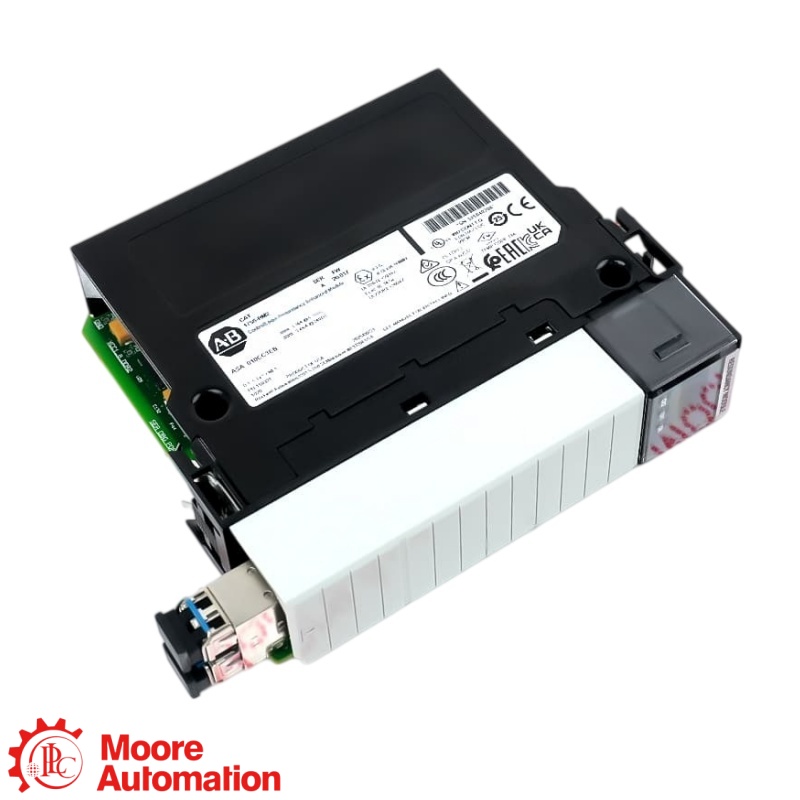

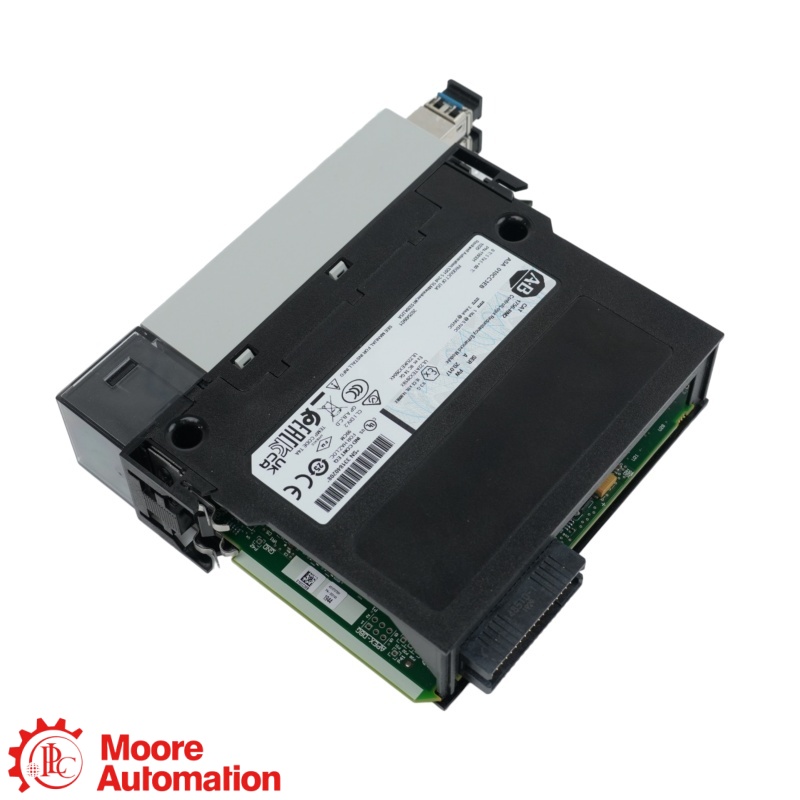

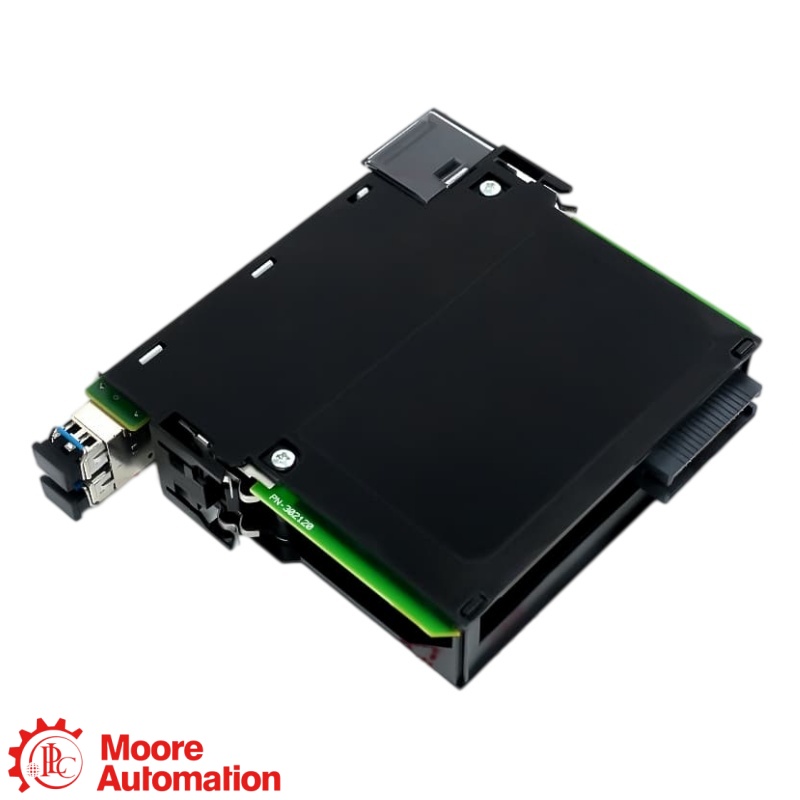

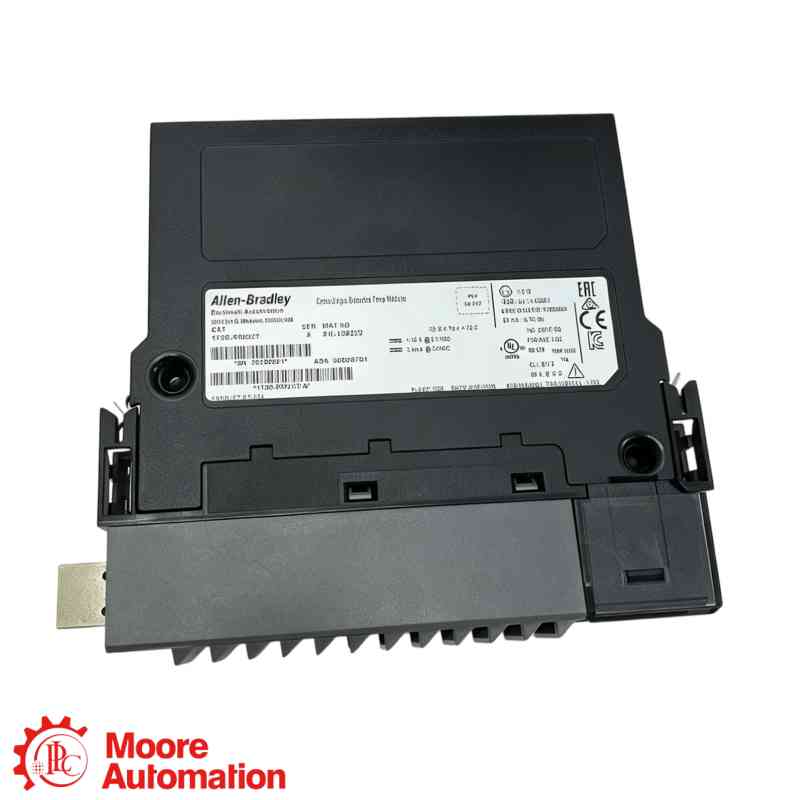

PLC 1756-RM2XT ControlLogix-XT Redundancy Module
PLC 1756-RM2XT ControlLogix-XT Redundancy Module
PLC 1756-RM2XT ControlLogix-XT Redundancy Module

PLC 1756-RM2XT ControlLogix-XT Redundancy Module

CONTROLLOGIX-XT REDUNDANCY MODULE

1756-RM2XT

The 1756-RM2XT is a ControlLogix-XT redundancy module with two 1000 Mbps fiber-optic channels for supported redundant 5570 or 5580 controller chassis.

CATALOG1756-RM2XT
CHANNELS2 fiber
RATE1000 Mbps
WEIGHT0.29 kg
BRANDPLC
PRODUCT TYPEControlLogix-XT Redundancy Module
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry

  • Merk :

    PLC

  • Onderdeel nummer :

    1756-RM2XT

  • Gewicht :

    0.29 kg

  • Land van herkomst :

    United States

  • Beschrijving :

    ControlLogix-XT Redundancy Module
Informeer nu
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● VERIFIED REDUNDANCY MODULE
CONTROLLOGIX-XT REDUNDANCY MODULE

1756-RM2XT

REDUNDANCY MODULE

2 FIBER CHANNELS · 1000 Mbps · 1 CHASSIS SLOT · 0.29 kg

PRODUCT ROLE
1756-RM2XT is a ControlLogix-XT redundancy module that synchronizes two supported controller chassis through dual fiber-optic channels.
INSTALLATION CHECK
Confirm matching supported controllers, 1756-A7XT or 1756-A10XT chassis, compatible firmware, power supplies, slot layouts and the selected 1756-RMC fiber cable before installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 1756-RM2XT order number is structured

1756
Platform identifier1756 ControlLogix-XT redundancy platform
RM2XT
Exact ordered suffixRetain the complete suffix when ordering
OFFICIAL MANUFACTURER REFERENCE

Technical Specifications

1756 TECHNICAL DATA ↗
1756-RM2XT

Engineering data at a glance

Click “+” to expand the verified information.

Fiber channels2
Approximate weight0.29 kg (0.64 lb)
Transmission rate1000 Mbps
Power dissipation6 W
Verified configuration

Official publication 1756-TD001 lists 1756-RM2XT with two fiber-optic channels, 1000 Mbps transmission, one-slot installation, 0.29 kg approximate weight and ControlLogix-XT chassis compatibility.

General Information −
BrandPLC
Model1756-RM2XT
Product categoryControlLogix-XT redundancy module
Verification statusListed in official product documentation
Official Documentation ＋
1756-TD001 technical data1756-TD001
Exact catalog match1756-RM2XT listed
Required confirmationController pair, firmware, XT chassis, power supplies, slot layout and fiber cable requirements
Ordering Check ＋
Redundancy compatibilityUse 1756-RM2XT only in a documented supported redundancy architecture; verify both controllers, firmware, chassis, module layout, power supplies and fiber cable before migration.
Quotation evidenceExact model, controller catalogs, firmware, XT chassis, power supplies, fiber-cable length, quantity and destination
Source: official manufacturer product page and publication 1756-TD001, which list the exact 1756-RM2XT redundancy configuration.
FAQ

Questions Buyers Ask Most

What redundancy role does 1756-RM2XT perform?＋

1756-RM2XT synchronizes two supported ControlLogix-XT controller chassis through two fiber-optic redundancy channels. Operation requires matched controller, chassis, firmware, power and project configurations.

Which controllers and chassis are compatible with 1756-RM2XT?＋

Official technical data lists ControlLogix 5570 and 5580 controllers with 1756-A7XT or 1756-A10XT chassis. Confirm both chassis, controller catalogs, firmware and redundancy release before installation.

Which fiber cables are specified for 1756-RM2XT?＋

The documented cables are 1756-RMC1, 1756-RMC3 and 1756-RMC10 for 1 m, 3 m and 10 m connections. Confirm route length, connector condition and environmental suitability before ordering.

What power and space must be allowed for 1756-RM2XT?＋

1756-RM2XT occupies one chassis slot. Official data lists 1.16 A at 5.1 V DC, 3.4 mA at 24 V DC, maximum 6 W power dissipation and 21 BTU/hr thermal dissipation.

What environmental limits apply to 1756-RM2XT?＋

The XT module is specified for -25 to +70 °C operation, -40 to +85 °C storage and 5–95% noncondensing humidity. Every component in both chassis must meet the required environment.

What must match before commissioning 1756-RM2XT?＋

Confirm the supported controller pair, firmware and redundancy bundle, chassis slot layout, power supplies, fiber cables, network modules and project configuration before synchronization.

What ordering data is required for 1756-RM2XT?＋

Provide the exact catalog number 1756-RM2XT, quantity, controller catalogs and firmware, XT chassis models, power supplies, fiber-cable length, installed layout, operating environment and destination.

CONTACT PRODUCT SPECIALIST

Check 1756-RM2XT configuration with Frida

Share the exact model, controller catalogs, firmware, XT chassis pair, power supplies, fiber-cable length and quantity for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 1756-RM2XT

Official publication 1756-TD001 lists 1756-RM2XT as a ControlLogix-XT redundancy module with verified controller, chassis, cable, power and environmental requirements.

1756-RM2XT Technical Data

Official publication 1756-TD001 lists two fiber-optic channels, 1000 Mbps transmission, 1756-A7XT or 1756-A10XT chassis and 1756-RMC1, RMC3 or RMC10 cables.

OFFICIAL TECHNICAL DATA ↗

Contact to Get Support

Send the exact model, quantity, controller catalogs, firmware, XT chassis pair, power supplies and fiber-cable length.

Source: official manufacturer product page and technical data publication 1756-TD001.

MODEL IDENTIFICATION

How the 1756-RM2XT reference should be verified

1756-RM2XT is the complete redundancy-module catalog number. Match it to both chassis records, controller firmware, slot layout and fiber connection.

PLATFORM / TYPE1756 platform · ControlLogix-XT redundancy module
→
COMPLETE MODEL1756-RM2XT
→
CONFIGURATION / SYSTEMMatched supported controller chassis and redundancy project
Installed System

Record both chassis catalogs, controller models, firmware, slot layouts and power supplies.

Network Evidence

Record both fiber channels, cable catalog and length, routing and connector condition.

Power Evidence

Confirm 1.16 A at 5.1 V DC, 3.4 mA at 24 V DC and the power budget in each chassis.

Migration Limit

Do not commission until the paired controllers, firmware, chassis layout, cables and project are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 1756-RM2XT correctly

Product Identity

Match 1756-RM2XT to the complete nameplate and both documented chassis records.

Installation Context

Document both chassis, controller firmware, slot layouts, power supplies and fiber route.

PRODUCT REFERENCE1756-RM2XTComplete ControlLogix-XT redundancy-module reference
Configuration Evidence

Use the nameplate, 1756-TD001 and redundancy project records to verify identity and configuration.

Replacement Check

Match both chassis, controllers, firmware, power and fiber requirements before replacement.
