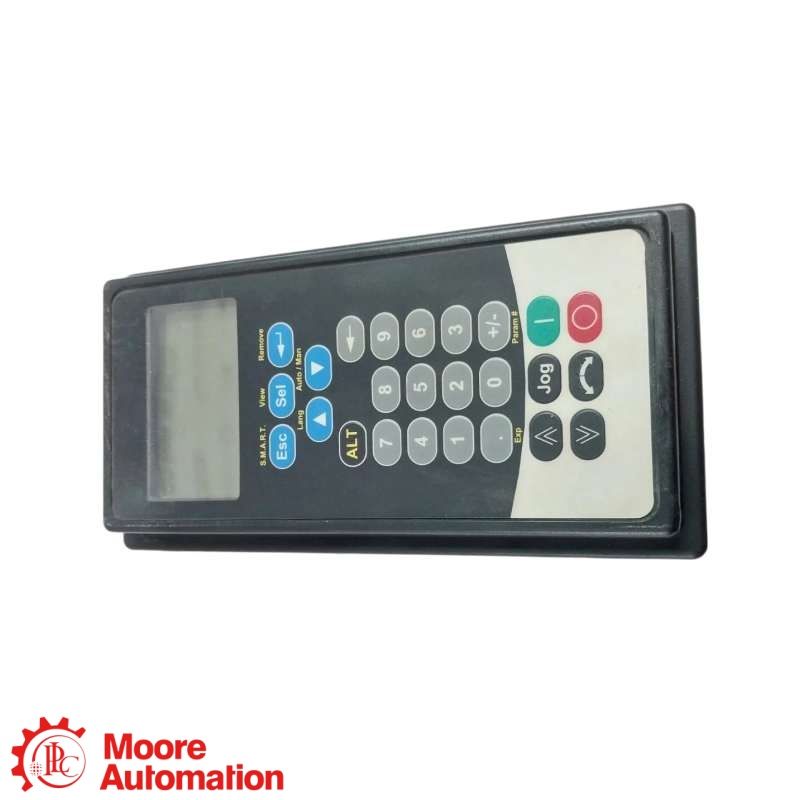

The 20-HIM-C3S is a PowerFlex 7-Class remote panel-mount human interface module with an LCD, full numeric keypad, IP66/NEMA Type 4X/12 protection and an included 3 m 1202-C30 cable.
Merk :
PLCOnderdeel nummer :
20-HIM-C3SDimensie :
180 mm x 93 mm x 25 mm (H x W x D); IP66 / NEMA Type 4X/12; includes 3 m 1202-C30 cableHS-code :
PowerFlex 7-Class Remote Full Numeric LCD HIMBeschrijving :
The 20-HIM-C3S is a PowerFlex 7-Class remote panel-mount human interface module with an LCD, full numeric keypad, IP66/NEMA Type 4X/12 protection and an included 3 m 1202-C30 cable.Click “+” to expand more specifications.
Source: The official product record, publication 20B-TD001 and installation instructions 20HIM-IN003 support the 20-HIM-C3S specifications shown here.
20-HIM-C3S is a PowerFlex 7-Class human interface module used for remote drive setup, parameter entry and status viewing.
20-HIM-C3S is designed for remote panel mounting and carries an IP66/NEMA Type 4X/12 indoor environmental rating.

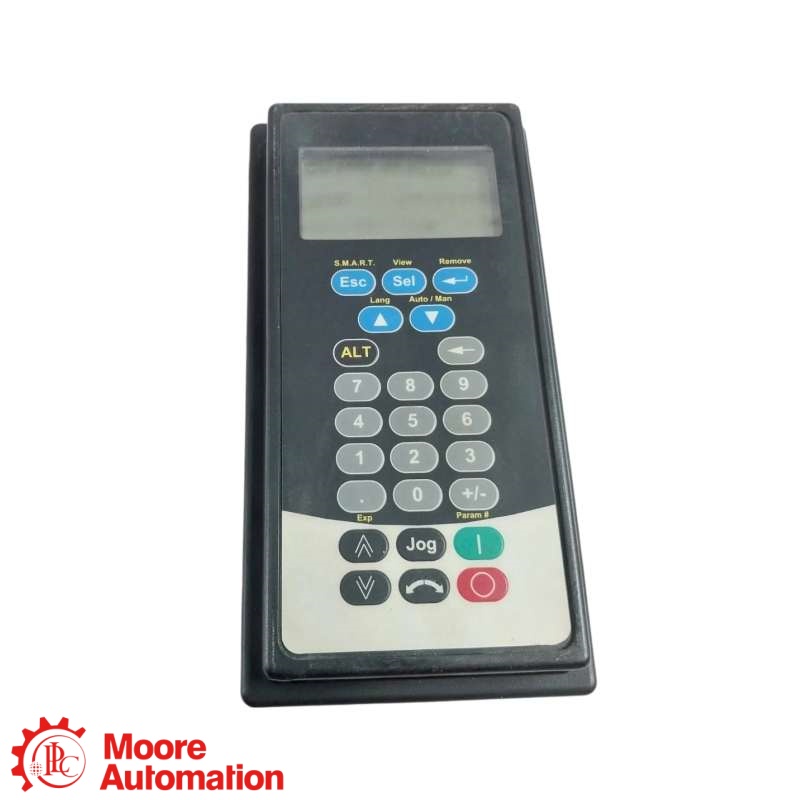

20-HIM-C3S provides an LCD and a full numeric keypad for drive configuration and operating-status review.
20-HIM-C3S includes one 1202-C30 interface cable with a length of 3 m for connection to the supported drive.
20-HIM-C3S measures 180 mm high, 93 mm wide and 25 mm deep according to the official installation instructions.
20-HIM-C3S uses an adhesive-coated gasket intended for one installation; verify the panel cutout and indoor mounting conditions before fitting.
For 20-HIM-C3S, provide the complete catalog number, connected PowerFlex drive, existing HIM, panel dimensions, cable requirement and firmware information.
Official manufacturer-reference information for the 20-HIM-C3S PowerFlex 7-Class remote full-numeric LCD human interface module.
Official installation instructions 20HIM-IN003 identify 20-HIM-C3S and document its panel mounting, dimensions and IP66/NEMA Type 4X/12 indoor installation.
OPEN OFFICIAL MANUAL PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this product page are limited to official installation instructions 20HIM-IN003, technical data 20B-TD001 and the exact official product record for 20-HIM-C3S.
Rockwell Automation identifies 20-HIM-C3S as the exact catalog number for a PowerFlex remote DPI human interface module with a full numeric keypad and LCD. The official product record specifies IP66 / NEMA Type 4X/12 protection and an included 1202-C30 3 m cable.
The official unique product identifier and complete catalog number.
Remote panel-mounted human interface module for supported PowerFlex drives.
LCD display with a full numeric keypad for drive setup and status viewing.
The official product record lists one included 3 m connection cable.
The panel-mounted HIM provides remote parameter entry and drive-status viewing for supported PowerFlex 7-Class drives.
The compact remote HIM installs in an indoor control-panel door with IP66/NEMA Type 4X/12 protection.
The LCD and full numeric keypad support menu navigation, parameter entry and operating-status review.
The supplied 3 m 1202-C30 cable connects the remote panel-mounted HIM to a supported drive.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
