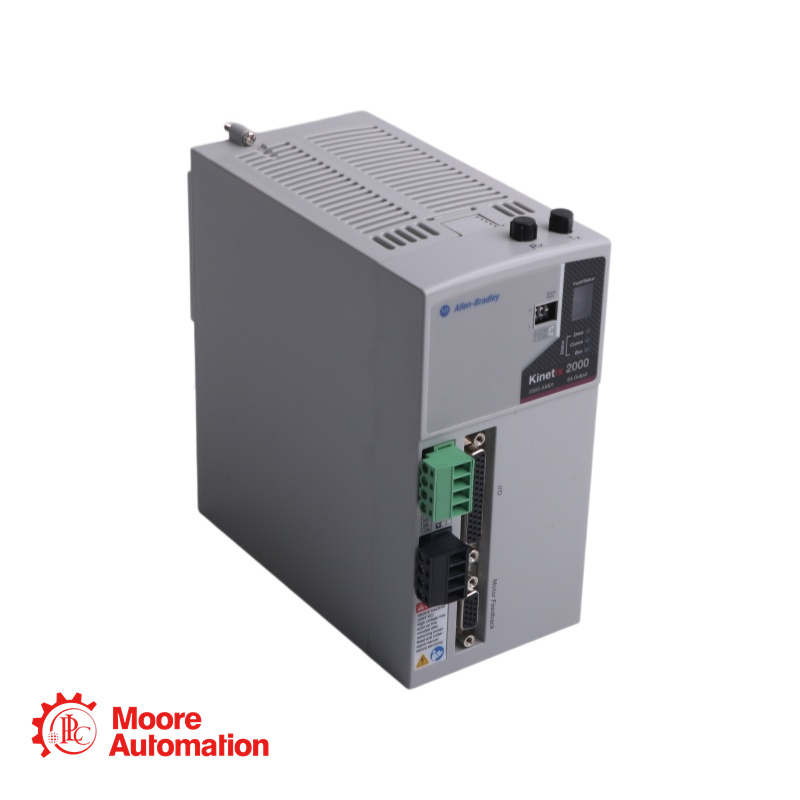

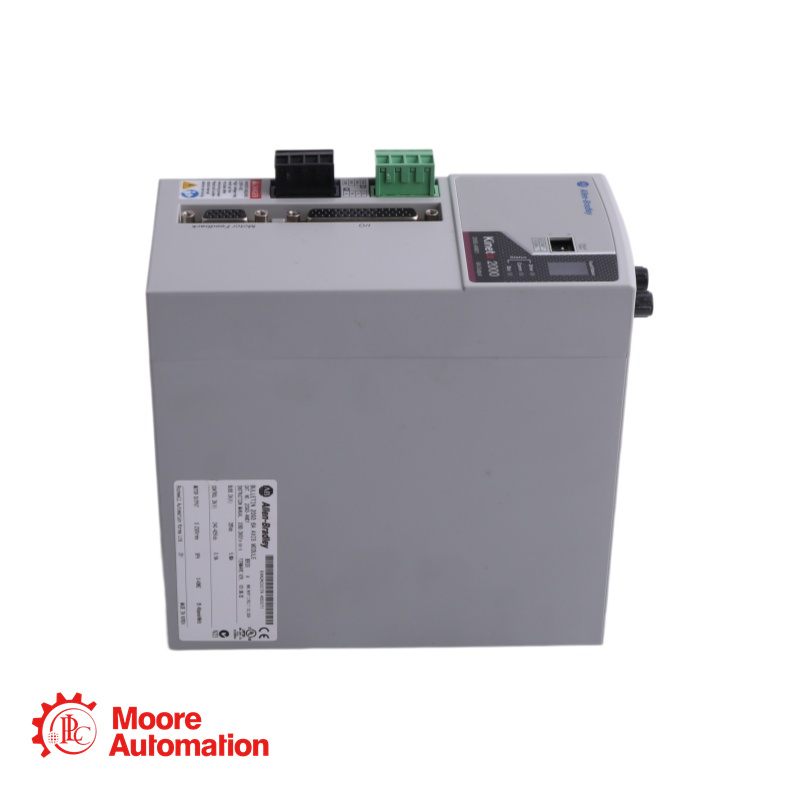

PLC 2093-AM01 Axis Module Inverter

2093-AM01

Overview

Specifications

The 2093-AM01 axis module inverter is designed for advanced motion control applications. It operates with a nominal DC bus voltage of 325 V DC and is capable of delivering continuous output power of 1.9 kW.

Drive Type:Multi-axis servo drive for motion control
Continuous Output Power:1.9 kW nominal
Continuous Current (RMS):6.0 A
Continuous Current (0-pk):8.48 A
Peak Output Current (RMS):18.0 A
Peak Output Current (0-pk):25.5 A
Velocity Loop Bandwidth:500 Hz
PWM Frequency:8 kHz

2093-AM01

Question

Answer

What type of motor is compatible with the 2093-AM01?

The 2093-AM01 is designed to operate with MP-Series (Low Inertia) or TL-Series servo motors. It is optimized for use with motors that have 210V (RMS) ratings.

What is the difference between "Continuous Current (RMS)" and "Peak Current"?

Continuous Current (6.0 A RMS): This is the maximum current the drive can supply to the motor indefinitely without overheating.
Peak Current (18.0 A RMS): This is the maximum current the drive can supply for a short period (typically 2-3 seconds) to handle high acceleration torque or momentary overloads.

Can this module be used in a standalone configuration?

No. The 2093-AM01 is an Axis Module that is part of the Kinetix 2000 multi-axis drive system. It must be mounted to the right of a 2093-AC05-MP5 (or similar) Power Supply module, which generates the 325V DC Bus and controls the shared shunting (regeneration) for the system.
