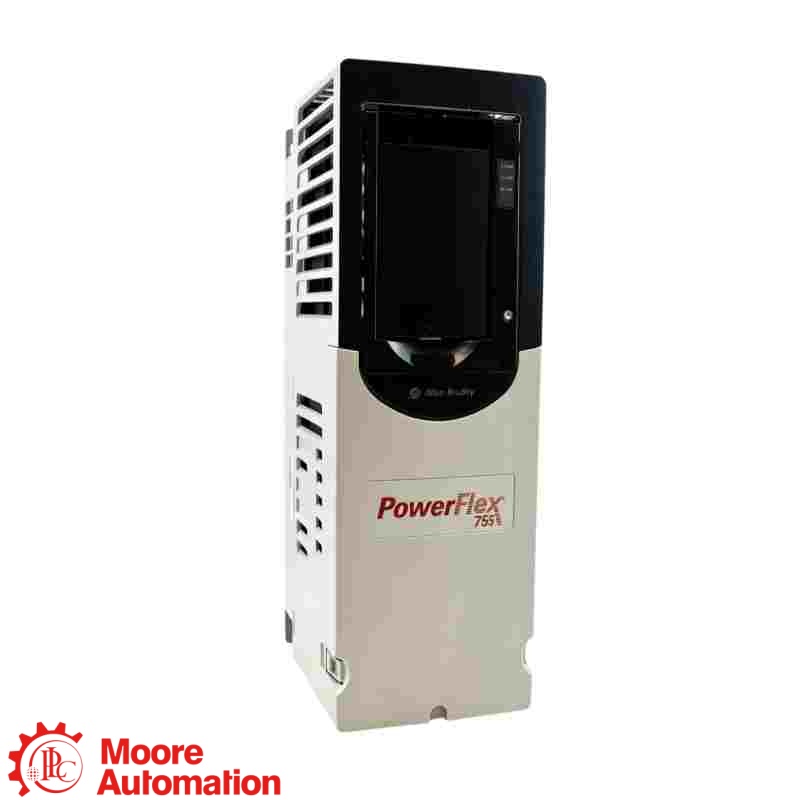

The 20G11NC022JA0NNNNN is a PowerFlex 755 AC Drive for 400 V AC three-phase input, rated 22 A with 11 kW normal-duty and 7.5 kW heavy-duty motor output.
Merk :
PLCOnderdeel nummer :
20G11NC022JA0NNNNNGewicht :
7.8 kgDimensie :
424.2 × 134.5 × 212.0 mmLand van herkomst :
Multiple; verify from the exact product labelHS-code :
PowerFlex 755 AC DriveBeschrijving :
The 20G11NC022JA0NNNNN is a PowerFlex 755 AC Drive for 400 V AC, 3 phase input, rated 22 A with 11 kW normal-duty and 7.5 kW heavy-duty output.Click “+” to expand more specifications.
Source: Official publication 750-TD001 and the exact official product cutsheet support 20G11NC022JA0NNNNN technical specifications. Verify the full catalog number, 400 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
20G11NC022JA0NNNNN is a PowerFlex 755 AC drive with embedded EtherNet/IP for 400 V AC three-phase input, rated 22 A with an IP20/IP00 open enclosure.
20G11NC022JA0NNNNN has a rated output current of 22 A; verify the complete catalog number and motor full-load current before replacement.
20G11NC022JA0NNNNN is rated 11 kW for normal-duty operation according to the official product cutsheet.
20G11NC022JA0NNNNN is rated 7.5 kW for heavy-duty operation according to the official product cutsheet.

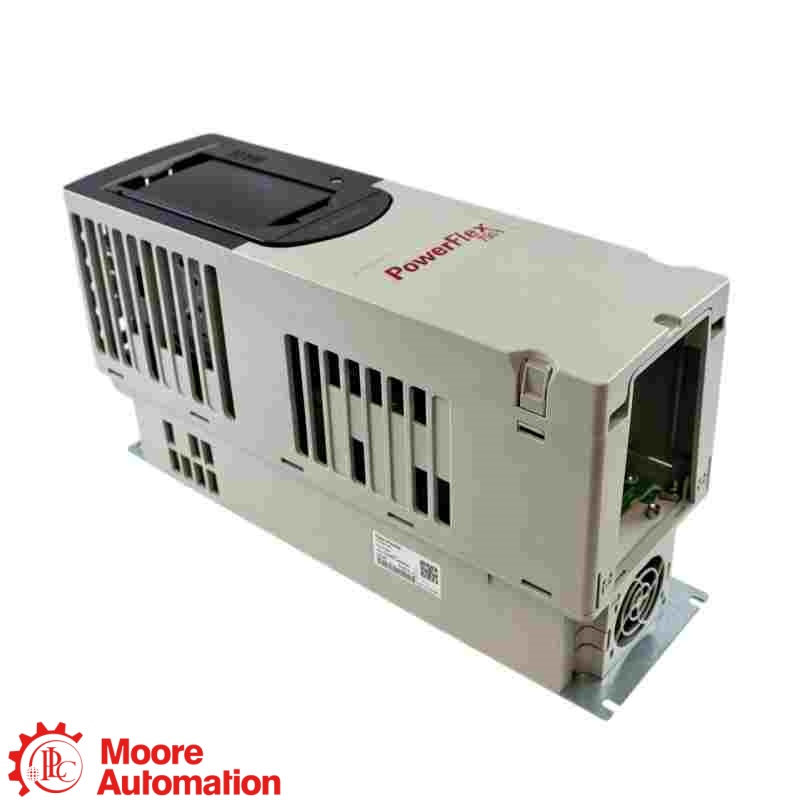

20G11NC022JA0NNNNN uses an IP20/IP00 NEMA/UL Open Type enclosure in Frame 2, approximately 424.2 × 134.5 × 212.0 mm with an approximate weight of 7.8 kg.
20G11NC022JA0NNNNN specifies embedded EtherNet/IP, filtered EMC configuration with the CM jumper installed, and a DB transistor.
20G11NC022JA0NNNNN requires verification of the exact catalog number, 400 V three-phase supply, 22 A rating, 11 kW ND / 7.5 kW HD duty rating, Frame 2, filtered EMC configuration and installed motor system.
Official manufacturer-reference information for the 20G11NC022JA0NNNNN PowerFlex 755 AC drive.
The official product cutsheet and publication 750-TD001 document the ratings, frame and dimensions for 20G11NC022JA0NNNNN.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 750-TD001 and the exact product cutsheet for 20G11NC022JA0NNNNN. No third-party product sources were used.

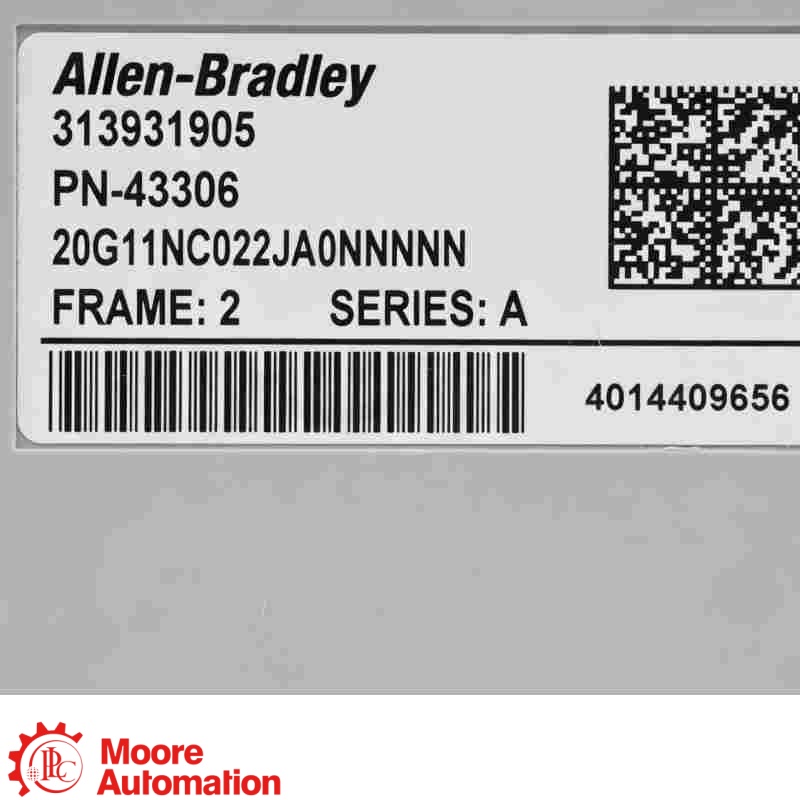

20G identifies the PowerFlex 755 drive family; C identifies the 400 V AC three-phase voltage class; 022 identifies the 22 A rated output-current code; and JA0NNNNN identifies the IP20/IP00 open enclosure, filtered EMC configuration and DB transistor.
PowerFlex 755 AC drive.
400 V AC, three-phase input.
Rated output current 22 A.
IP20/IP00 NEMA/UL Open Type, filtered EMC configuration and DB transistor.
Match 20G11NC022JA0NNNNN to the complete drive nameplate and installed-system documentation.
Confirm 400 V AC three-phase supply, 22 A output, 11 kW normal-duty and 7.5 kW heavy-duty motor ratings.
Confirm embedded EtherNet/IP settings, the installed control wiring and the saved drive parameters.
Confirm Frame 2, 424.2 × 134.5 × 212.0 mm dimensions, 7.8 kg approximate weight, IP20/IP00 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
