PLC 20G14NC104JA0NNNNN AC Drive

Contact Information

20G14NC104JA0NNNNN Specifications

20G14NC104JA0NNNNN Description

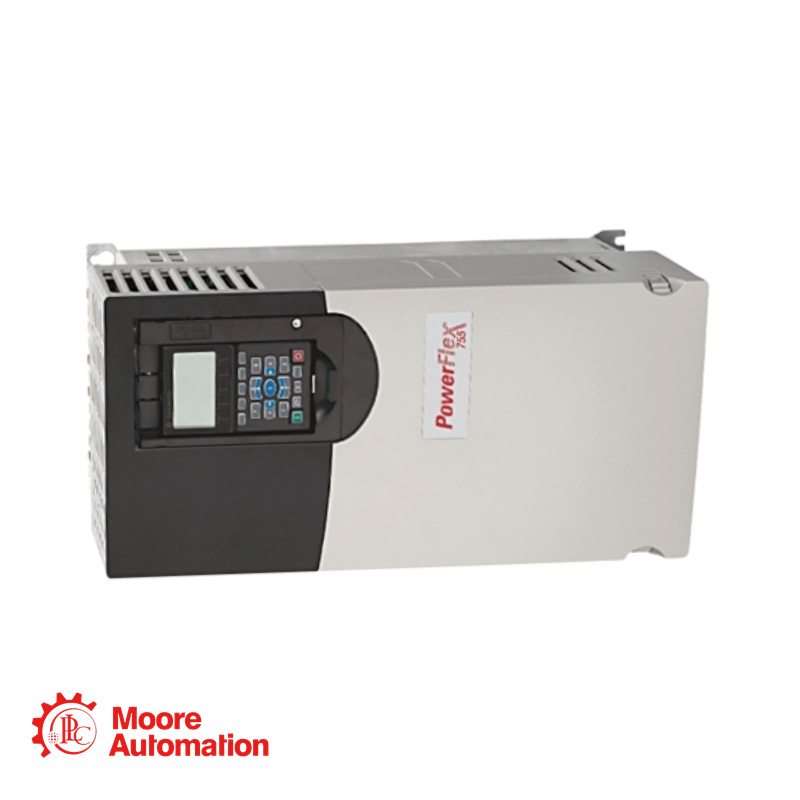

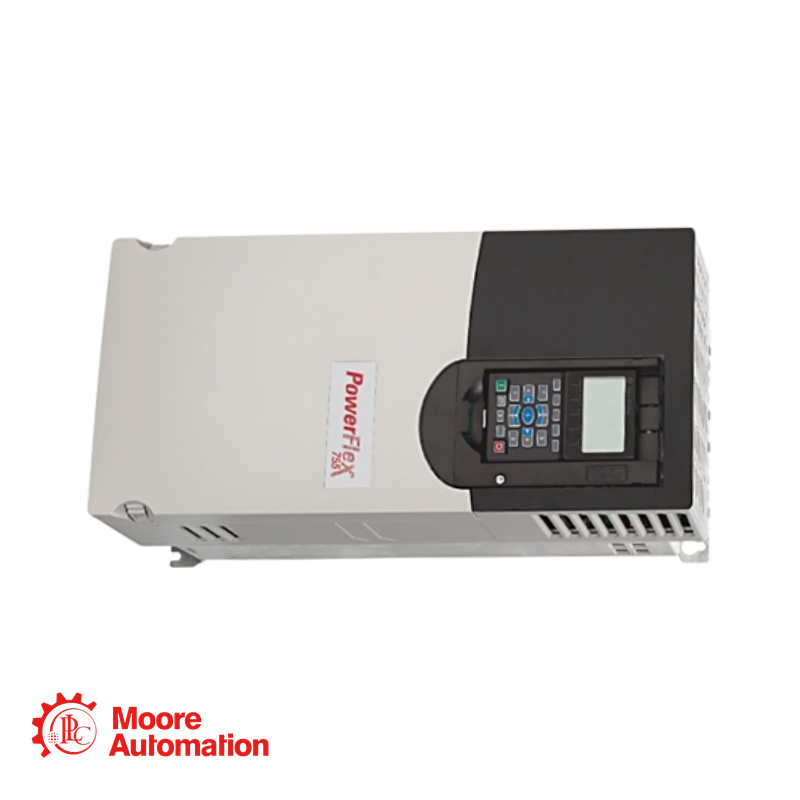

The 20G14NC104JA0NNNNN is an AC drive designed for performance with a voltage rating of 400 VAC and 540 VDC. This model achieves a power output of 55 horsepower, equivalent to 41 kW, and is rated for a non-duty current of 104 A, making it suitable for various industrial applications.

20G14NC104JA0NNNNN Alternative names

20G14NC104JA0NNNNN FAQ

What is the 20G14NC104JA0NNNNN AC Drive?

The 20G14NC104JA0NNNNN is a PF 755 AC Drive. It is a high-performance, flexible drive designed for demanding industrial applications requiring advanced motor control, embedded EtherNet/IP communication, and a wide range of hardware and safety options.

What does the part number 20G14NC104JA0NNNNN signify?

The part number breaks down as follows:
20G: PowerFlex 755 Series
1: 400V AC Voltage Class
4: Open Type Enclosure (IP20/NEMA Open)
N: DC Input with Precharge
C: 104 Amps Output Current
104: 104 Amps (repeated)
J: Filtered with CM Jumper Installed (preferred)
A: Dynamic Brake (DB) Transistor included
0: Blank (No HIM - Human Interface Module)
NNNNN: No additional options

What is the difference between Normal Duty (ND) and Heavy Duty (HD) ratings?

Normal Duty (55 kW): For applications with variable torque loads such as fans, pumps, and blowers. It allows 110% overload for up to 60 seconds.
Heavy Duty (45 kW): For constant torque applications such as conveyors, mixers, and extruders. It allows 150% overload for up to 60 seconds.

What type of input power does this 20G14NC104JA0NNNNN drive require?

This drive features a DC Input with Precharge. It is designed to accept DC power input (400V AC rating corresponds to 540V DC) and includes a precharge circuit to safely energize the DC bus capacitors. This configuration is typically used in common DC bus systems or applications with external DC power sources.

Does this 20G14NC104JA0NNNNN drive have a built-in HIM?

No. The "-NNNNN" option indicates this drive comes with a blank faceplate and does not include a Human Interface Module (HIM) . A HIM can be ordered separately (e.g., 20-HIM-A3 or 20-HIM-C3) if local programming is required.
