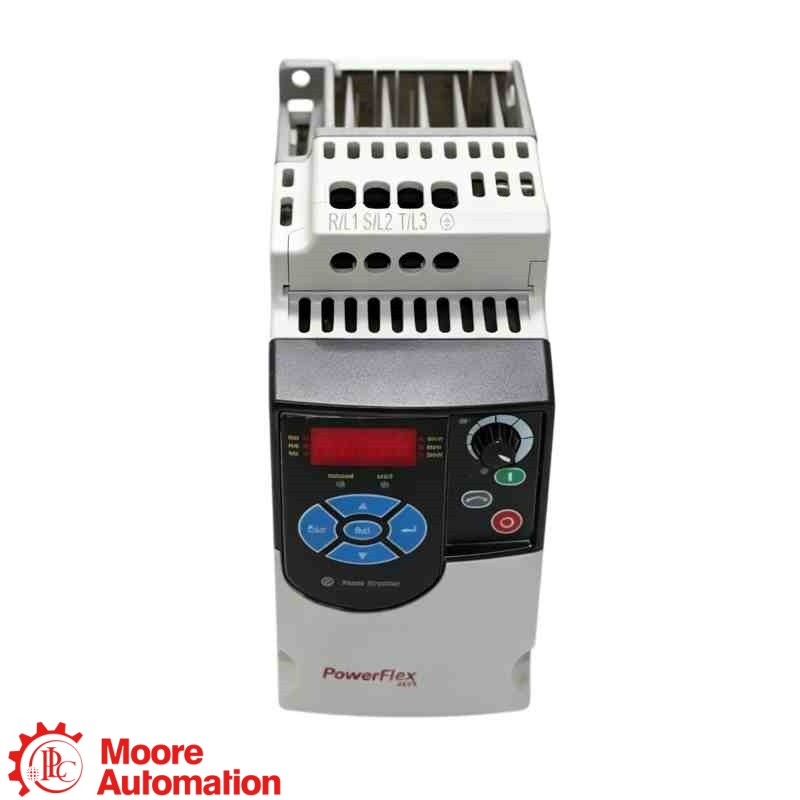

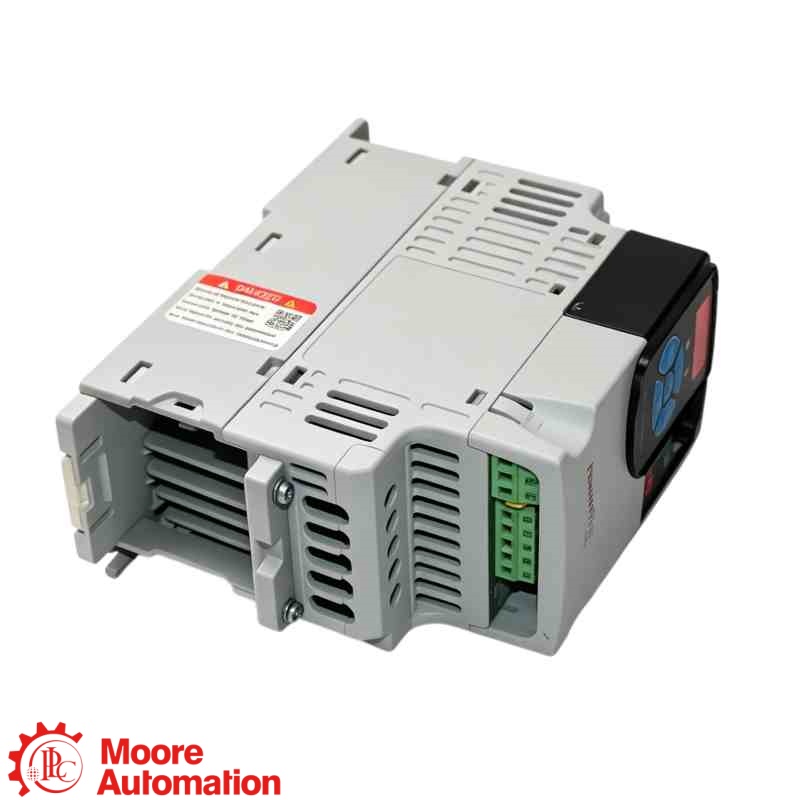

The 22F-D1P5N103 is a PowerFlex 4M Adjustable Frequency AC Drive for 380...480 V AC three-phase input, rated 1.5 A with 0.5 HP / 0.4 kW motor output.
Merk :
PLCOnderdeel nummer :
22F-D1P5N103Gewicht :
1.6 kgDimensie :
174 × 72 × 136 mmLand van herkomst :
Multiple; verify from the exact product labelHS-code :
PowerFlex 4M Adjustable Frequency AC DriveBeschrijving :
The 22F-D1P5N103 is a PowerFlex 4M Adjustable Frequency AC Drive for 380...480 V AC, 3 phase input, rated 1.5 A with 0.5 HP / 0.4 kW motor output.Click “+” to expand more specifications.
Source: Official publication 22F-TD001 and the exact official product cutsheet support 22F-D1P5N103 technical specifications. Verify the full catalog number, 380...480 V AC voltage class, output current, duty rating, frame, enclosure, interface module and EMC filter status before replacement.
22F-D1P5N103 is a PowerFlex 4M AC drive with embedded Integral RS-485 (DSI) and safety for 380...480 V AC three-phase input.
22F-D1P5N103 has a rated output current of 1.5 A; verify the complete catalog number and motor full-load current before replacement.
22F-D1P5N103 is rated 0.5 HP / 0.4 kW for normal-duty operation according to official technical data.
22F-D1P5N103 is rated 0.5 HP / 0.4 kW for heavy-duty operation according to official technical data.
22F-D1P5N103 uses an IP20 NEMA/Open Type enclosure in Frame A, measuring 174 × 72 × 136 mm with an approximate shipping weight of 1.6 kg.
22F-D1P5N103 specifies a no EMC filter and no dynamic brake, compact adjustable-frequency motor control and integral RS-485 communication.
22F-D1P5N103 requires verification of the exact catalog number, 380...480 V supply, 1.5 A rating, duty rating, Frame A, IP20 open enclosure, no-filter configuration and installed motor system.
Official manufacturer-reference information for the 22F-D1P5N103 PowerFlex 4M AC drive.
Official publication 22F-TD001 provides exact model ratings and dimensions for 22F-D1P5N103.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publication 22F-TD001 and the exact product cutsheet for 22F-D1P5N103. No third-party product sources were used.
22F identifies the PowerFlex 4M drive family; D identifies the 380...480 V AC three-phase voltage class; 1P5 identifies the 1.5 A rated output-current code; and N103 identifies the IP20 open type, no EMC filter, no dynamic brake.
PowerFlex 4M AC drive.
380...480 V AC, three-phase input.
Rated output current 1.5 A.
IP20 NEMA/Open Type, no EMC filter and no dynamic brake.

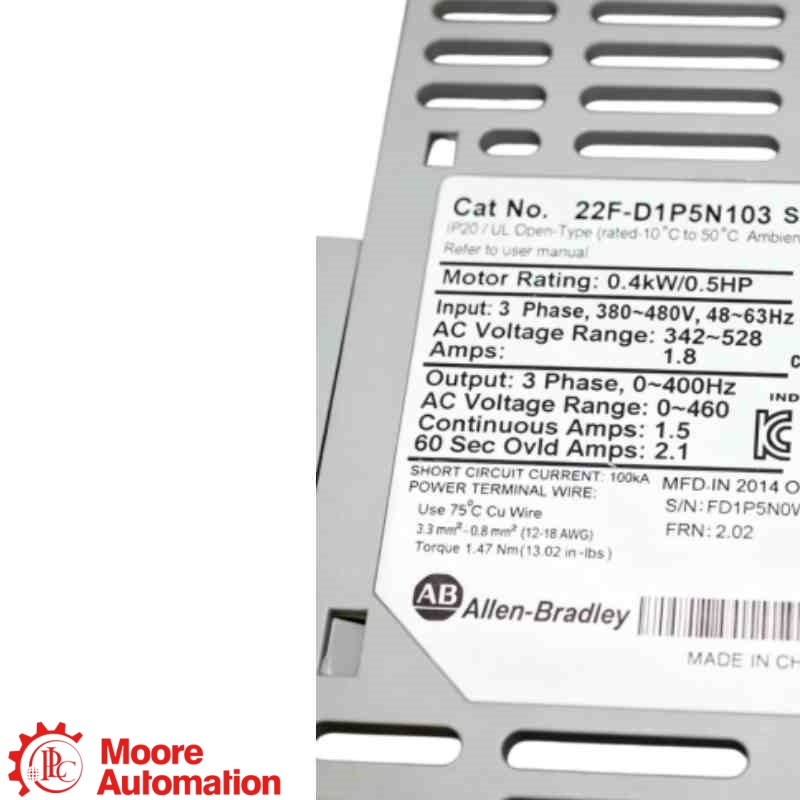

Match 22F-D1P5N103 to the complete drive nameplate and installed-system documentation.
Confirm 380...480 V AC three-phase supply, 1.5 A output and 0.5 HP / 0.4 kW motor output rating.
Confirm Integral RS-485 (DSI) settings, the installed control wiring and the saved drive parameters.
Confirm Frame A, 174 × 72 × 136 mm dimensions, IP20 open enclosure and cooling clearances before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
