ABB SPBRC100 Symphony Harmony BRC-100 Bridge Controller

Contact Frida for SPBRC100 Pricing

Product Overview

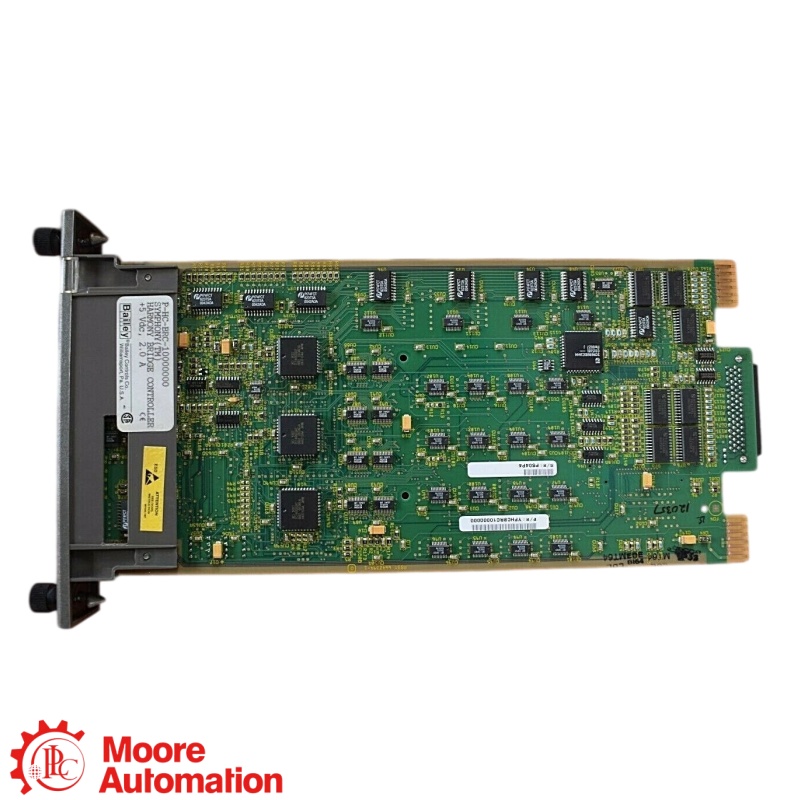

The ABB SPBRC100 is a rack-mounted bridge controller identified in the hardware documentation as the BRC-100. It collects process I/O data, executes control algorithms and sends calculated control signals to process-level devices within a Symphony Harmony control architecture. SPBRC100 can communicate with Harmony block I/O through Hnet while supporting Harmony rack I/O through the I/O expander bus. Both I/O paths can operate simultaneously, allowing one controller to coordinate different generations and formats of process I/O within the same control unit. The controller uses a 32-bit, 32 MHz processor together with SRAM, NVRAM and flash ROM. Control strategies and application files are retained in nonvolatile memory when system power is removed. It also supports redundant controller arrangements, serial device communication and multiple control-programming methods.

Technical Specifications

Benefits

-Simultaneous block and rack I/O support
-Redundant controller configuration
-Nonvolatile control-strategy storage
-Multiple control-programming options
-Compact one-slot installation
-Integrated communication diagnostics
-Online configuration capability
-Broad process-control flexibility

Key Highlights

● 32-bit processor operating at 32 MHz

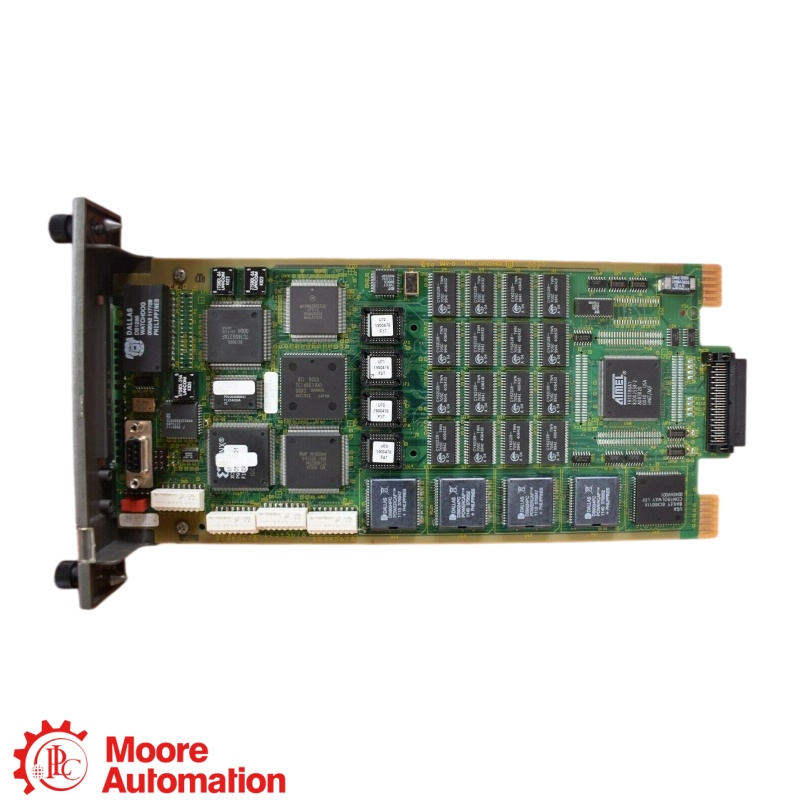

● 2 MB SRAM, 512 KB NVRAM and 1 MB flash memory
● Simultaneous Hnet and rack I/O communication
● Two configurable serial communication ports
● Support for approximately 200 function codes
● Primary and backup controller configuration
● Control strategy retained after power loss

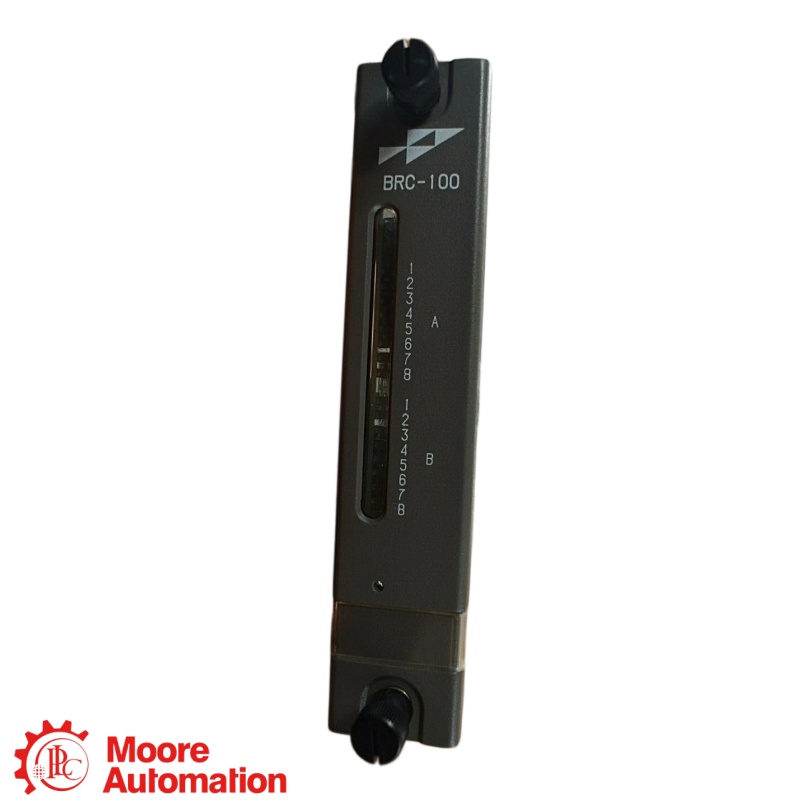

● Front-panel status and diagnostic indicators

Customer Questions and Answers

Industries Served

1. Power Generation--SPBRC100 can execute continuous and sequential control strategies for boiler auxiliaries, turbine-support systems and balance-of-plant equipment. Its redundant-controller capability is useful where loss of a process controller could interrupt plant operation.

2. Oil, Gas and Refining--The controller can coordinate analog, digital, pulse and control I/O used in processing, storage and utility areas. Its ability to communicate with both rack-mounted I/O and distributed I/O blocks helps integrate control signals across established plant architectures.

3. Chemical and Petrochemical Processing--SPBRC100 is suitable for process loops involving temperature, pressure, flow, level and valve control. Function-code programming and nonvolatile strategy storage support continuous processes, sequence control and batch-related operations.

4. Pulp and Paper Production--The controller can be applied to stock preparation, chemical dosing, machine auxiliaries and utility processes. Multiple execution segments allow fast interlock logic and slower supervisory calculations to operate at separately assigned cycle times.

5. Water and Wastewater Facilities--SPBRC100 can coordinate pump-station, treatment-process and plant-utility control through compatible I/O modules. Serial interfaces may also be used to exchange operating information with supported external controllers or supervisory equipment.
