PLC 25B-A2P5N114 AC Drive

Contact Information

25B-A2P5N114 Specifications

25B-A2P5N114 Description

Adjust the speed or output of your electrical current with this inverter drive range. It's typically installed between an electrical supply and a motor to regulate power transmission before it's used, maximising current safety. The inverter drive can convert alternating currents (AC) into direct currents (DC) to better suit your application. Its 2.5A (amperes) current rating is designed for low-powered circuits. You'll find devices like this used with conveyors, pumps and mixers.

25B-A2P5N114 AC Drive are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.

25B-A2P5N114 Alternative names

25B-A2P5N114 FAQ

What is the 25B-A2P5N114 AC Drive?

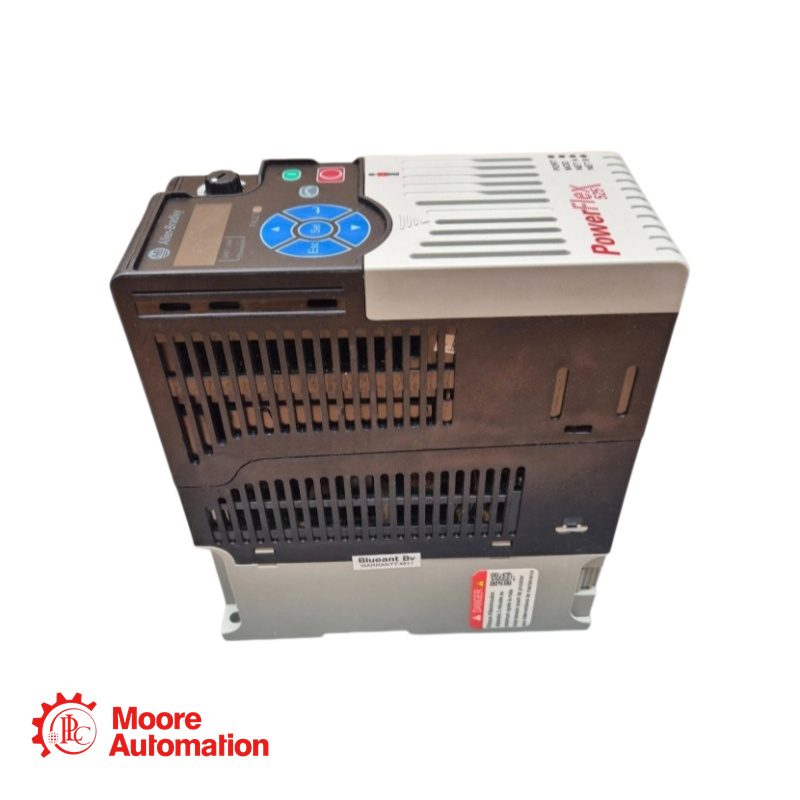

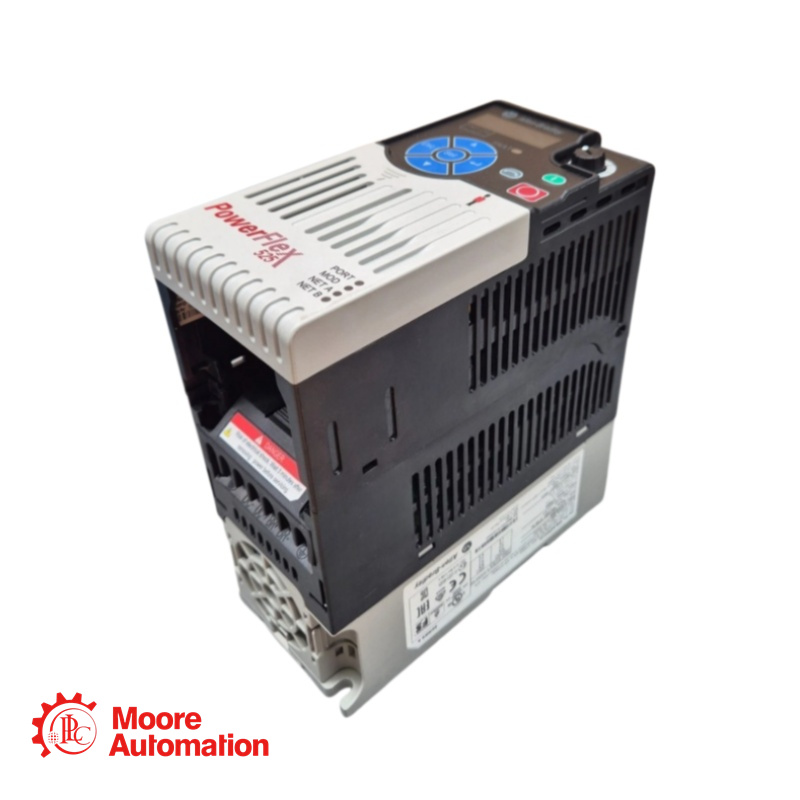

The 25B-A2P5N114 is a PF 525 AC Drive. It is a compact, cost-effective drive with embedded EtherNet/IP™ communications, designed for general-purpose applications such as conveyors, pumps, and mixers.

What does the part number 25B-A2P5N114 signify?

The part number breaks down as follows:
25B: PowerFlex 525 Series
A: 100...120V AC or 200...240V AC, 1 Phase voltage class
2P5: 2.5 Amps output current
N: Filtered (EMC filtering)
114: Frame A, IP20 NEMA/Open Type enclosure with Standard interface module

What are the typical applications for this 25B-A2P5N114 drive?

Typical applications include conveyors, pumps, fans, mixers, and other general-purpose industrial machinery requiring variable speed control, energy savings, and integration with Ethernet-based systems.

What are the embedded I/O capabilities?

The drive features built-in I/O for flexible control:
Discrete Inputs: Six (6) sink/source
Discrete Outputs: Two (2) digital/optocoupler; One (1) N.O. and One (1) N.C. relay contact
Analog Input: Two (2) 0-10VDC / 0-20mA
Analog Output: One (1) 0-10VDC / 0-20mA

What safety features are included?

The drive includes a Safe Torque-Off (STO) feature, certified at PLd/SIL2 Cat 3. This function removes rotational power to the motor without removing power from the drive, enabling faster start-up after a safety demand.
